MCP2515 CAN Bus Module TJA1050 Receiver SPI For Arduino - (AD92990)

Description:

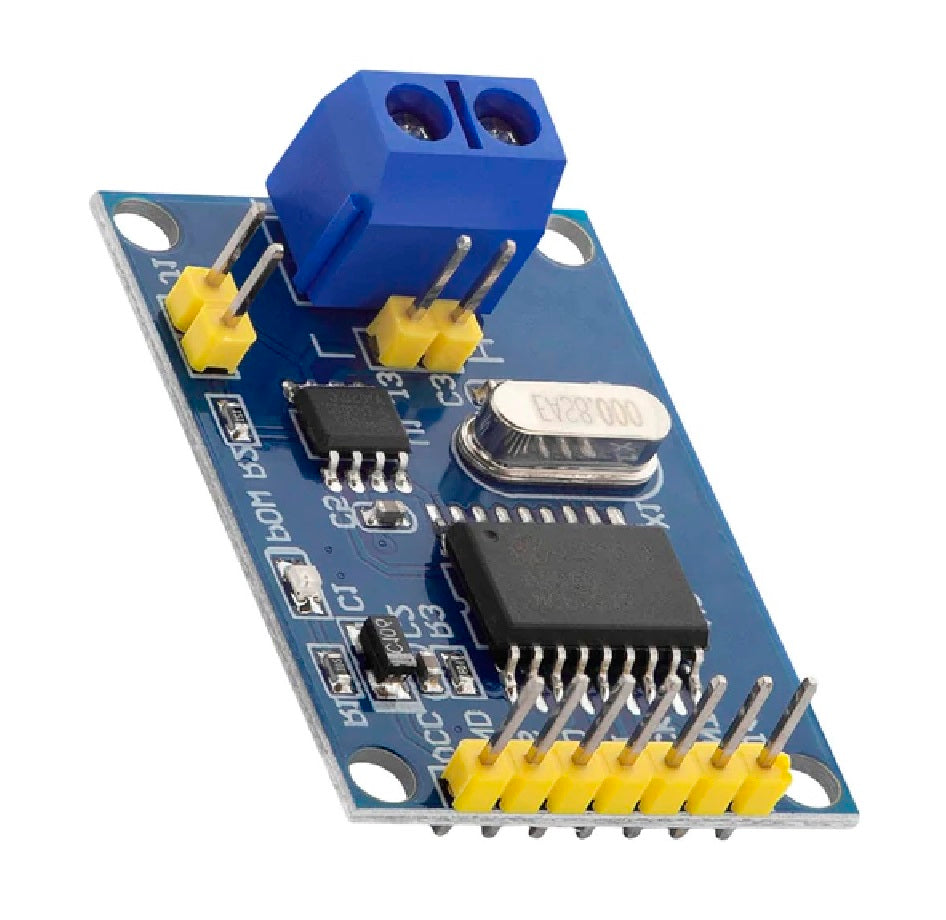

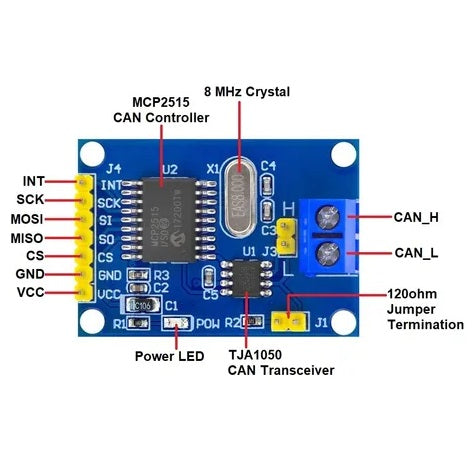

The MCP2515 CAN Bus Module integrates the MCP2515 controller with the TJA1050 transceiver for reliable CAN communication in embedded systems and automotive applications. It supports the CAN V2.0B specification with a communication speed of 1 Mb/s. It features a 0 to 8-byte data field and three frame types: standard, extended, and remote. The module operates on a 5VDC power supply with SPI interface protocol control for seamless integration with Arduino. Onboard 120-ohm termination resistors provide impedance matching, ensuring robust drive capability and long-distance data transmission while minimizing signal radiation interference.

Its compact design measures 4 x 2.8 cm. It offers industrial-grade performance with a typical working current of 5 mA and an ultra-low standby current of 1 μA. The operating temperature range spans from -40 °C to +85 °C, making it suitable for demanding environments. Ideal for CAN bus projects that require reliable serial communication and signal integrity over long distances.
