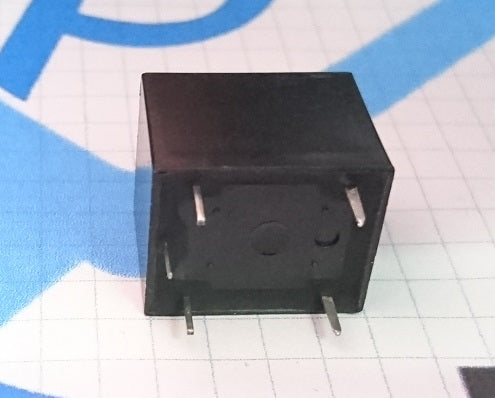

SRD-24VDC-SL-C Relay SPDT 24VDC - (AD9267)

Description:

DC power relays interrupt high-capacity DC loads and high-voltage DC circuits in a compact, quiet design. The switching section and drive section are gas injected and hermetically sealed, allowing these compact relays to interrupt high-capacity loads. The sealed construction also requires no arc space, saving space and helping to ensure safe applications.

These are single-pole, double-throw (SPDT) protection relays. Use them to switch high-voltage and/or high-current devices. The coil of this relay is rated up to 24V, with a maximum switching voltage of 250VAC, 28VDC. Contacts are rated up to 10A (at 250VAC; 10A at 28VDC).

Features:

- 10A switching capacity in a small size design for high-density PCB mounting techniques

- Plastic material selection for high temperature and better thermal performance

- Fully sealed

Coil Specifications:

- Rated voltage: 24V

- Rated current: 18.7mA

- Resistance: 1280 ohm

Contact Specifications:

- Resistive load capacity: 28VDC @ 10A, 250VAC @ 10A

- Inductive load capacity: 250VAC @ 5A, 28VDC @ 5A

- Maximum voltage: 250VAC

- SPDT: Single Pole, Double Throw

Datasheet
