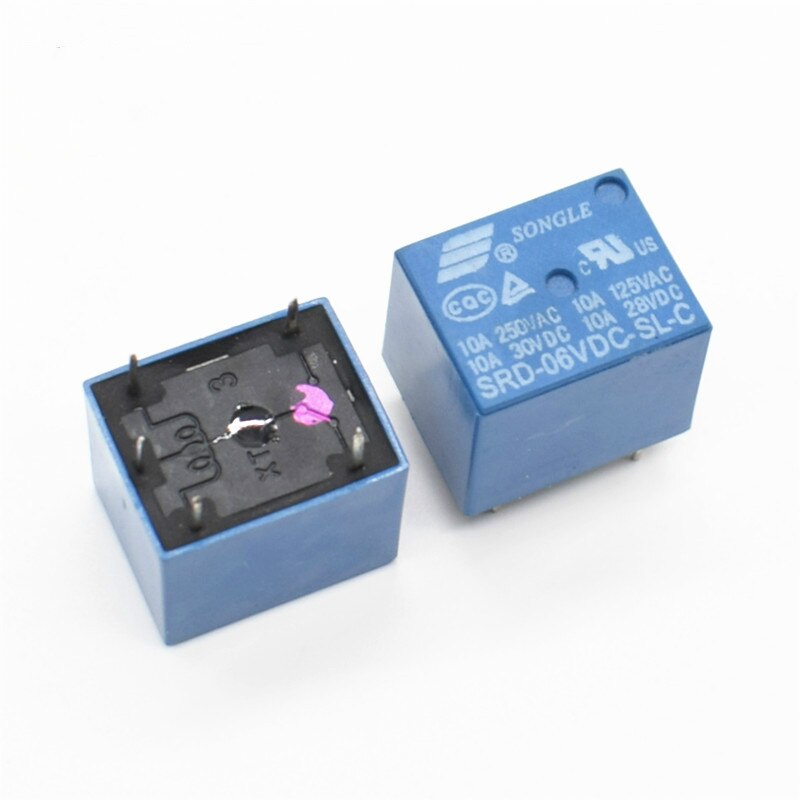

SRD-06VDC-SL-C Relay SPDT 6VDC - (AD9265)

Description:

DC power relays interrupt high-capacity DC loads and high-voltage DC circuits in a compact, quiet design. The switching section and the driving section are gas-injected and hermetically sealed, allowing these compact relays to interrupt high-capacity loads. The sealed construction also requires no arc space, saving space and helping to ensure safe applications.

These are single-pole, double-throw (SPDT) protection relays. Use them to switch high-voltage and/or high-current devices. The coil of this relay is rated up to 6V, with a maximum switching voltage of 250VAC, 28VDC. The contacts are rated up to 10A (at 250VAC; 10A at 28VDC).

Features:

- Switching capacity for 10A in a small size design for high-density PCB mounting techniques

- Selection of plastic material for high temperature and better thermal performance

- Fully sealed

Coil Specifications:

- Rated voltage: 6V

- Rated current: 75mA

- Resistance: 80 ohm

- Power: 0.45W

Contact Specifications:

- Capacity for resistive load: 28VDC @ 10A, 250VAC @ 10A

- Capacity for inductive load: 250VAC @ 5A, 28VDC @ 5A

- Maximum voltage: 250VAC
