[7 x 7mm] Latching Mini Tactile Push Button Switch DPDT - (AD885)

Description:

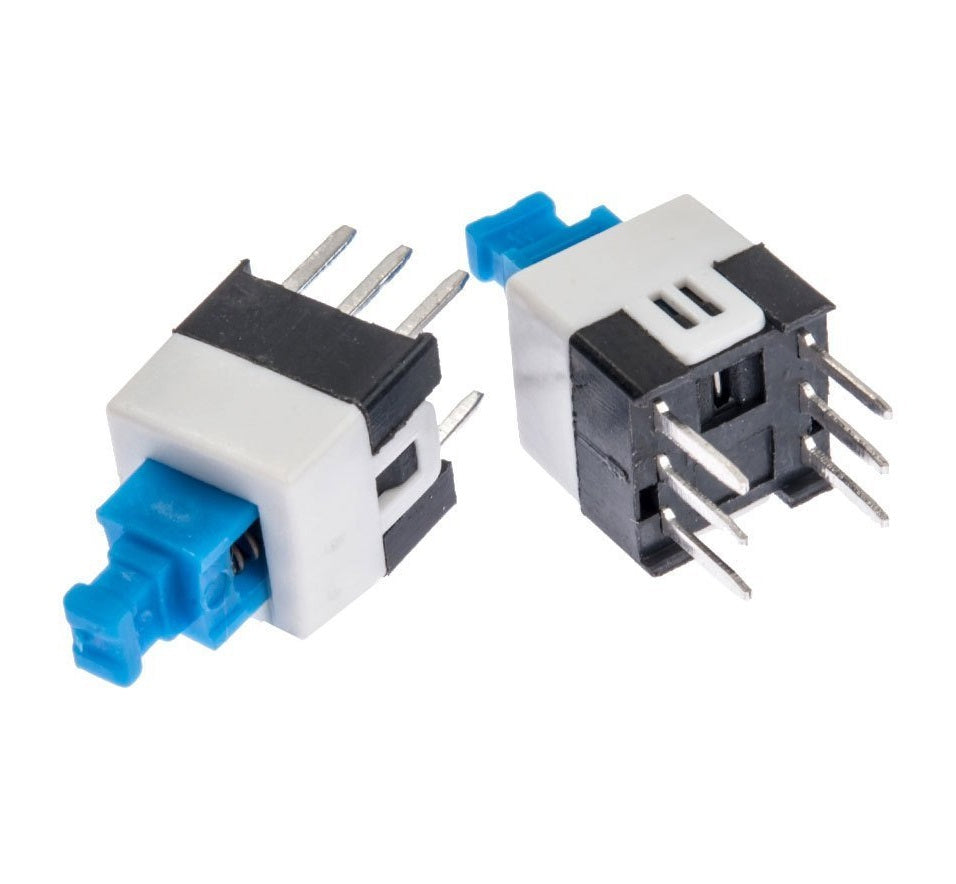

This is a perfect option if you need an on/off button! These plastic buttons are small, very sturdy PCB mount latching switches. It's a DPDT with 6 pins spaced at 2mm, which means it is NOT breadboard compatible. This button is perfect for basic on/off functions. These latching buttons support up to 0.1A and 30VDC. Sold individually!

Features:

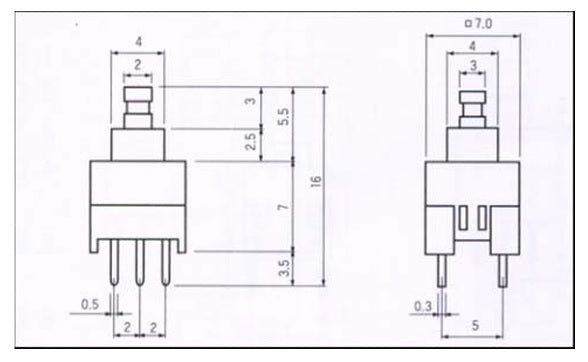

- Size: 7x7mm

- Operating temperature: -40°C to +70°C

- Average load: 30VDC @ 0.1A

- Insulation resistance: 100 Mohm

- Contact resistance: 0.03 ohm

- ON state when pressed

- OFF state when pressed again

Datasheet
