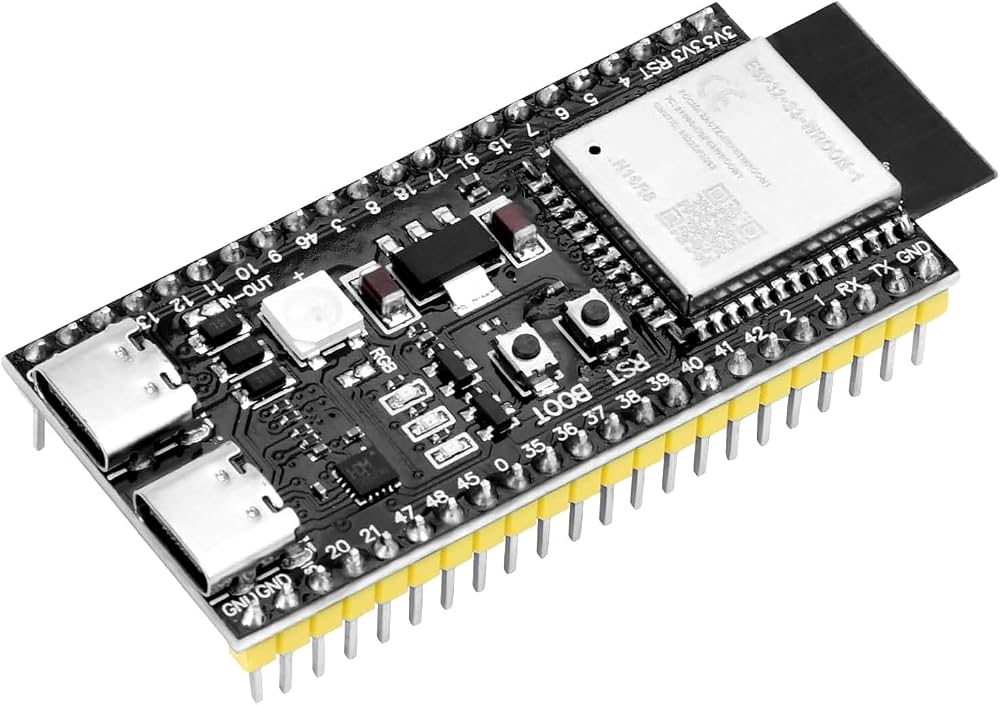

ESP32-S3 Development Board - (AD85395)

Description:

The ESP32-S3 development board is a powerful and versatile microcontroller featuring Wi-Fi and Bluetooth 5 (LE) connectivity. Equipped with two USB Type-C ports, it offers flexible programming and communication options. Designed for IoT, automation, and robotics projects.

It supports advanced features such as integrated AI acceleration, numerous GPIO pins, and multiple peripherals.

Note: The model of this board is ESP32-S3-WROOM-1-N16R8

Features:

• Microcontroller: ESP32-S3 (32-bit Xtensa® LX7 dual-core processor)
• Clock speed: Up to 240 MHz
• Flash memory: 16 MB
• PSRAM: 8 MB
• Wireless connectivity:
  • Wi-Fi 802.11 b/g/n
  • Bluetooth 5, Bluetooth Low Energy (BLE)
• USB ports: 2 × USB Type-C (one for power/programming, one for native USB)

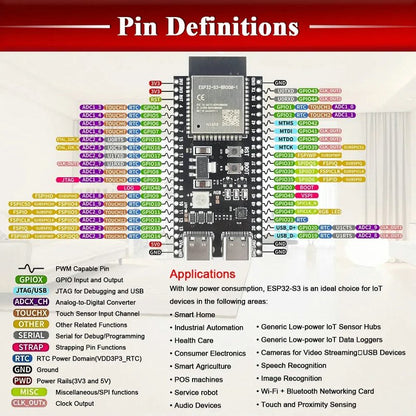

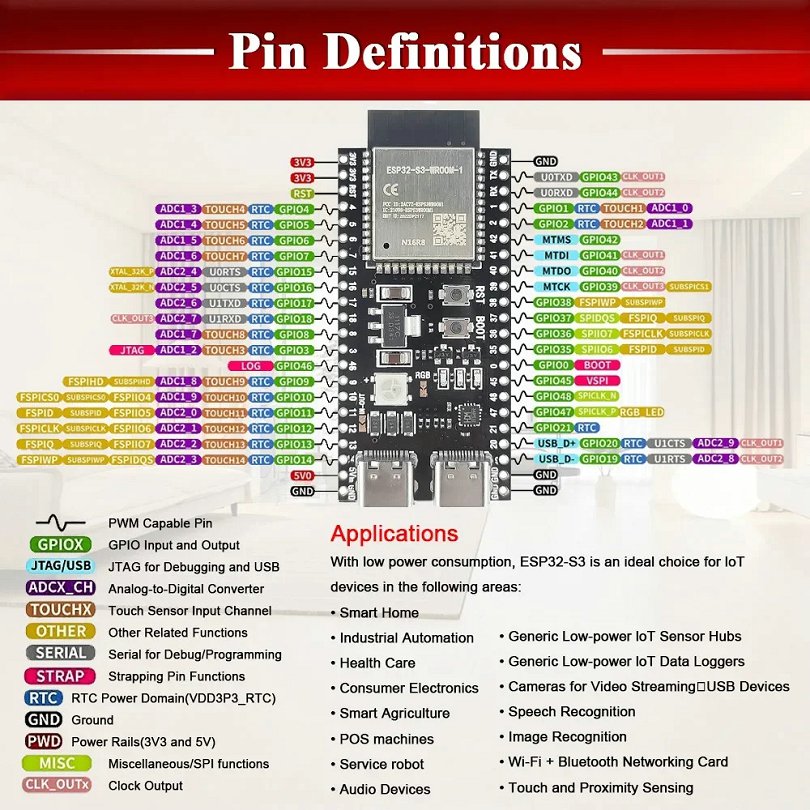

• GPIO pins: Up to 36 (capacitive touch, ADC, DAC, UART, SPI, I²C, PWM, etc.)
• AI features: Vector instructions for AI/ML acceleration
• Operating voltage: 3.3 V (logic level)
• Programming compatibility: Arduino IDE, ESP-IDF, MicroPython, PlatformIO
• Integrated components:
  • Reset and Boot buttons
  • Addressable RGB LED
  • Voltage regulator
• Dimensions: Approx. 65 mm × 25 mm
• Arduino configuration:
  • Board: ESP32S3 Dev Module
  • If connected to the USB Type-C port: COM
    • USB CDC On Boot: Disable
  • If connected to the USB Type-C port: USB
    • USB CDC On Boot: Enable
  • CPU Frequency: 240MHz
  • USB DFU On Boot: Disable
  • Flash Mode: QIO 80MHz
  • Flash Size: 16MB
  • USB Firmware MSC On Boot: Disable
  • PSRAM: OPI PSRAM
  • Partition Scheme: Default 4Mb with spiff
  • USB Mode: Hardware CDC and JTAG
  • Upload Mode: UART0/Hardware CDC
  • Upload Speed: 921600
