8-Pin 2EDG Terminal Block Connector Kit - (AD84919)

Description:

Screw terminals spaced at 5.08 mm. Available in 2 or more rows. Rated up to 300V at 8A. The terminal can accept wires from 26 AWG to 10 AWG. The pin pitch or spacing is 5.08 mm, making them ideal for wall or panel mounting.

Specifications:

- Maximum Voltage: 300V

- Maximum Current: 8A

- Contact Resistance: 20mΩ

- Insulation Resistance: 5000MΩ/1000V

- Wire Gauge: 26 - 10AWG

- Operating Temperature: -40°C~+105°C

- Length: According to the number of pins

- Pin Spacing: 5.08 mm

- Poles: 8

- Material: Plastic

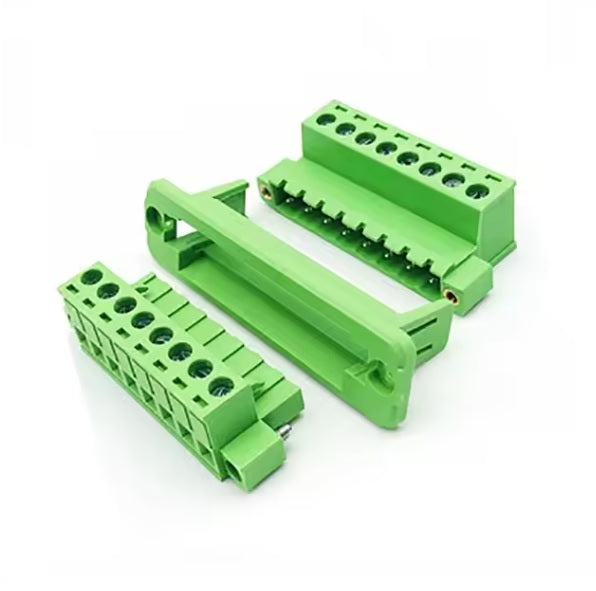

The kit includes:

- 1x Male Connector

- 1x Female Connector

- 1x Panel Mount Bracket
