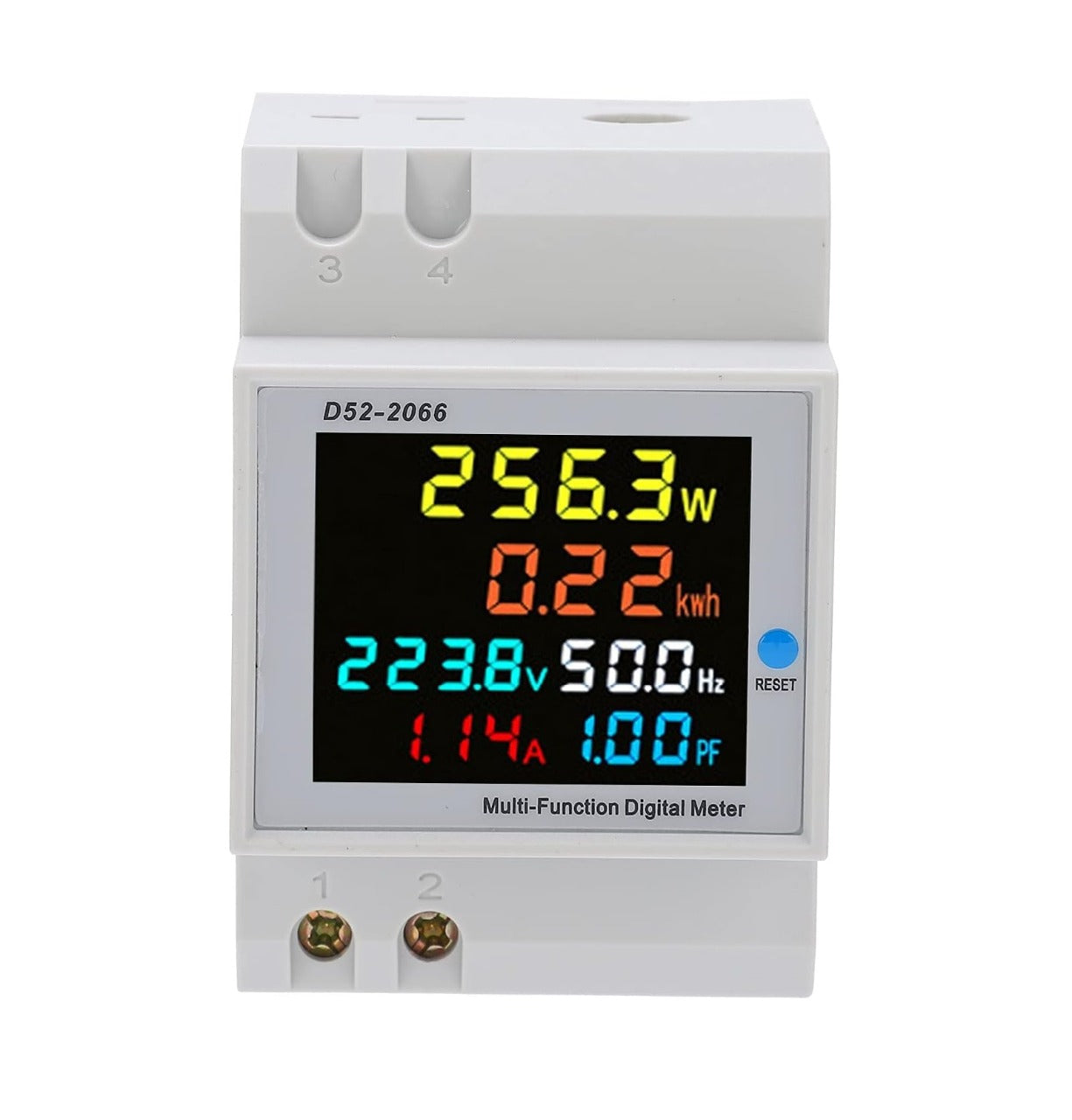

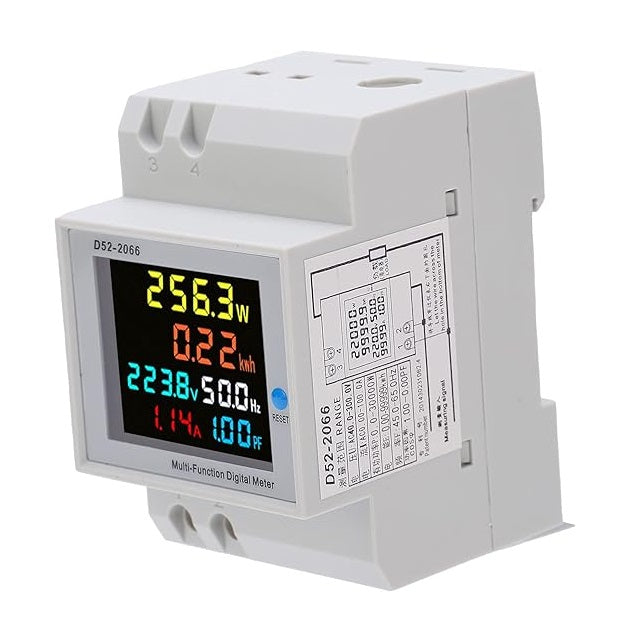

D52-2066 AC Monitor 40V-300V @ 100A (Voltage - Current - Power - Factor) - (AD84765)

Description:

This is a colorful full-view LCD phase monitor with a 178° wide viewing angle and a built-in transformer for accurate measurement. The instrument displays 6 parameters simultaneously: AC voltage, AC current, active power, power factor, frequency, and electrical energy.

The electricity consumption of the entire house is clear at a glance, and the electricity consumption of the house can be monitored at any time. It is applicable to the chemical industry, power plants, automation equipment, DOS systems, electromechanical equipment, and other places. It is small in size, lightweight, easy to carry, sturdy and durable, stable in performance, convenient, and practical.

How to use:

1. Connect the measured voltage to terminals 1 and 2 on the bottom left of the meter.

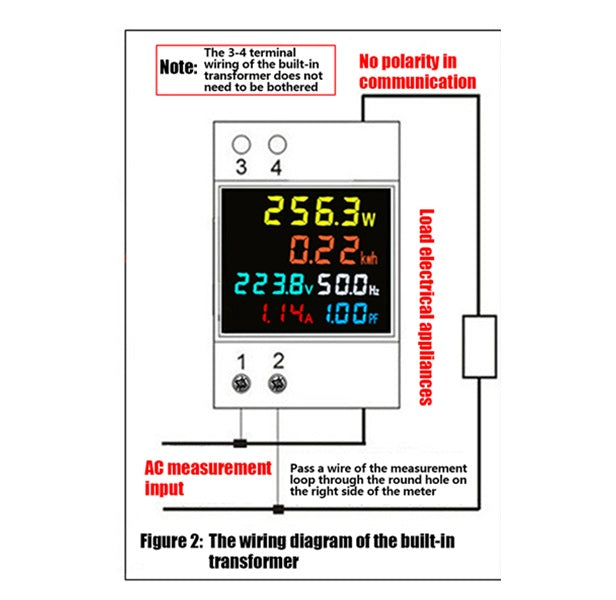

2. The built-in transformer is wired according to the wiring diagram in the Figure below, and the measurement loop cable is passed through the hole below the meter. The cable penetration direction is arbitrarily selected by the user according to the usage situation. Or penetrate through the circular hole at the top of the meter and exit through the bottom. Different penetration directions will not affect the measurement results.

3. The meter displays the measurement parameters after power-on.

4. When it is necessary to reset the energy measurement (when measuring from zero), press and hold the button (RESET) on the right side of the instrument panel for 5 seconds (press and hold for 5 seconds) until the energy display shows 0, then release the button. At this time, the electrical energy is measured from zero. The electrical energy has the function of automatically saving data when the power is cut off, that is, when the measured voltage is disconnected or the power is cut off.

The meter will automatically save the data, and when the measuring power supply is reconnected, the meter will continue to accumulate the previously saved data.

The diameter of the built-in transformer (CT) hole is 11 mm, which can pass through a 12 square (mm) national standard copper wire/can meet a 100A load current.

Note: The measuring voltage range of this instrument is 40-300V and is only suitable for pure AC mains power from 45-65 Hz.

Specifications:

- Item Type: Watt-hour Meter

- Model: D52-2066

- Material: ABS

- Uses: used in the chemical industry, power plants, automation equipment, DOS systems, electromechanical equipment, and other places.

- Measurement accuracy: 1%±2 words

- Measurement range: AC Voltage: AC40.0-300.0V, AC Current: AC0-100.0A

- Current display resolution: 0.01A

- Power frequency: 45.0 Hz - 65.0 Hz

- Power factor: 0.00 - 1.00 PF

- Active power: the measurement range is 0-30000W, the display resolution between 0-9999.9W is 0.1W, and the rest is 1W

- Electricity:

- 0 - 9999kwh, 0 - 999.99kwh, the minimum display resolution is 0.01 kwh

- 1000.0 - 9999.9 kwh, the minimum display resolution is 0.1 kwh

- 10000 - 9999kwh, the minimum resolution is 1kwh

- Measurement speed: about 2 times per second

- Installation method: DIN rail
