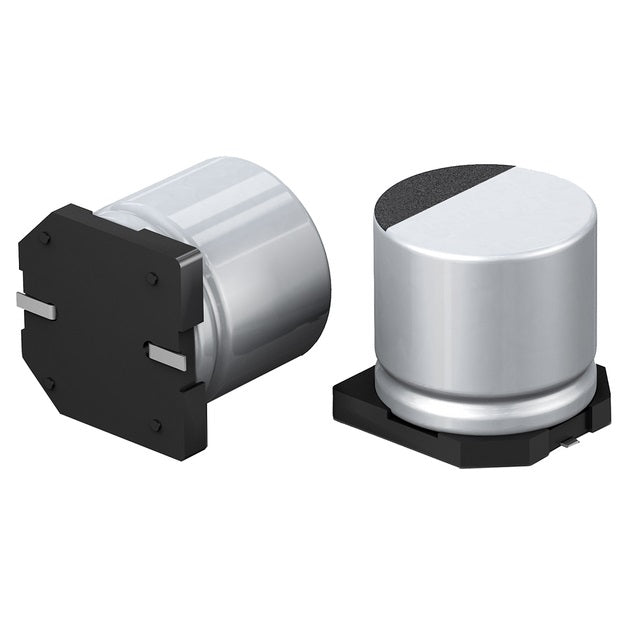

1000uF @ 10V SMD Aluminum Electrolytic Capacitor - (AD84615)

Description:

These metallic capacitors are designed to meet the growing demand for high-temperature resistant capacitors in the industrial and automotive machinery sectors. These high-performance capacitors are rated for temperatures up to +105°C. The series combines two types of electrolytes that provide characteristics of both conductive polymer electrolyte types (low ESR, high ripple current, high heat resistance) and electrolytic solutions (low leakage current due to oxide film restoration). These capacitors have a diameter of 10 mm and a length of 10 mm and offer a long service life.

Dimensions:

- Diameter: 10mm

- Height: 10.3mm

- Base: 10.5 x 10.5mm

Note: Sold in individual units!

Data sheet
