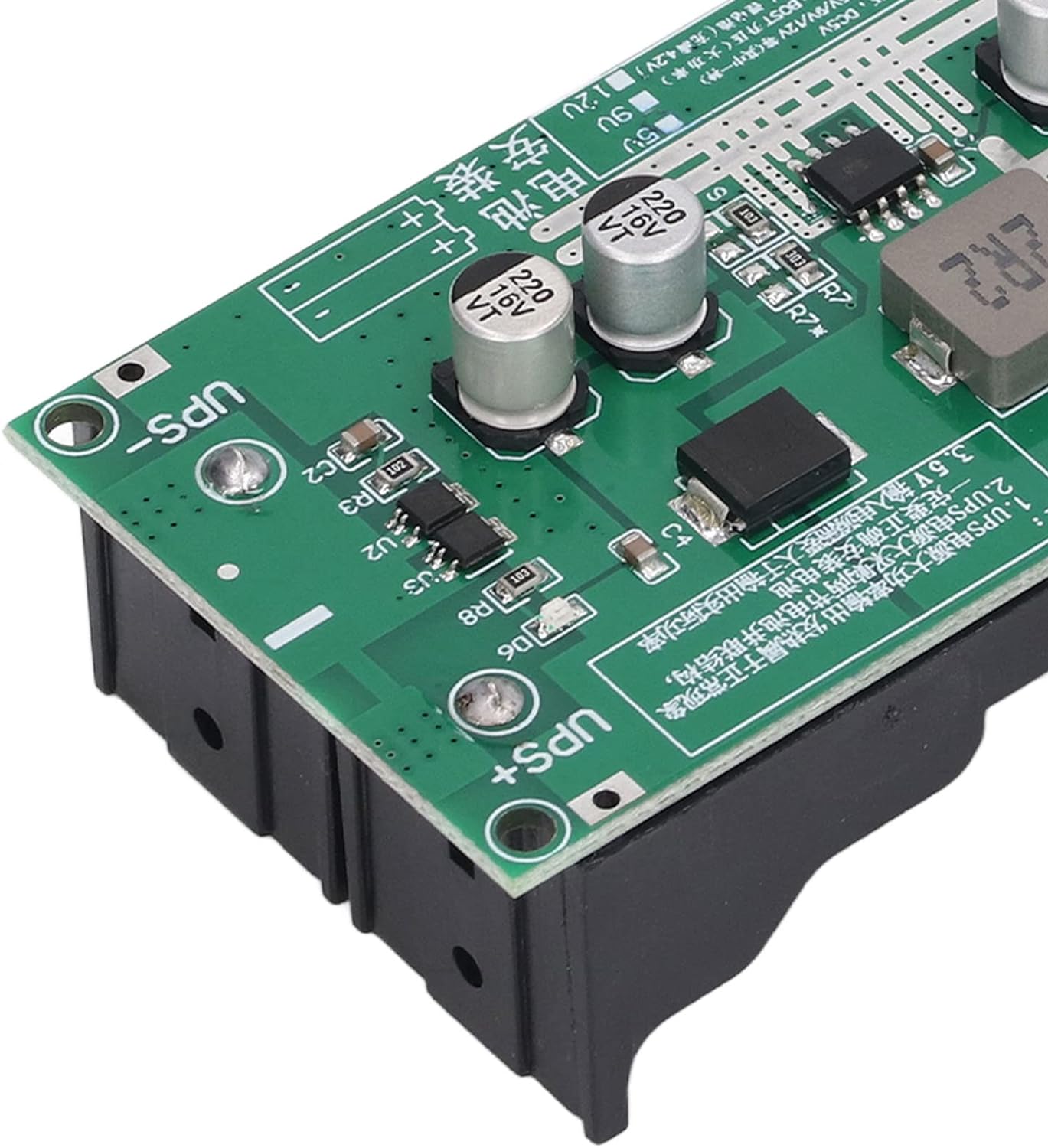

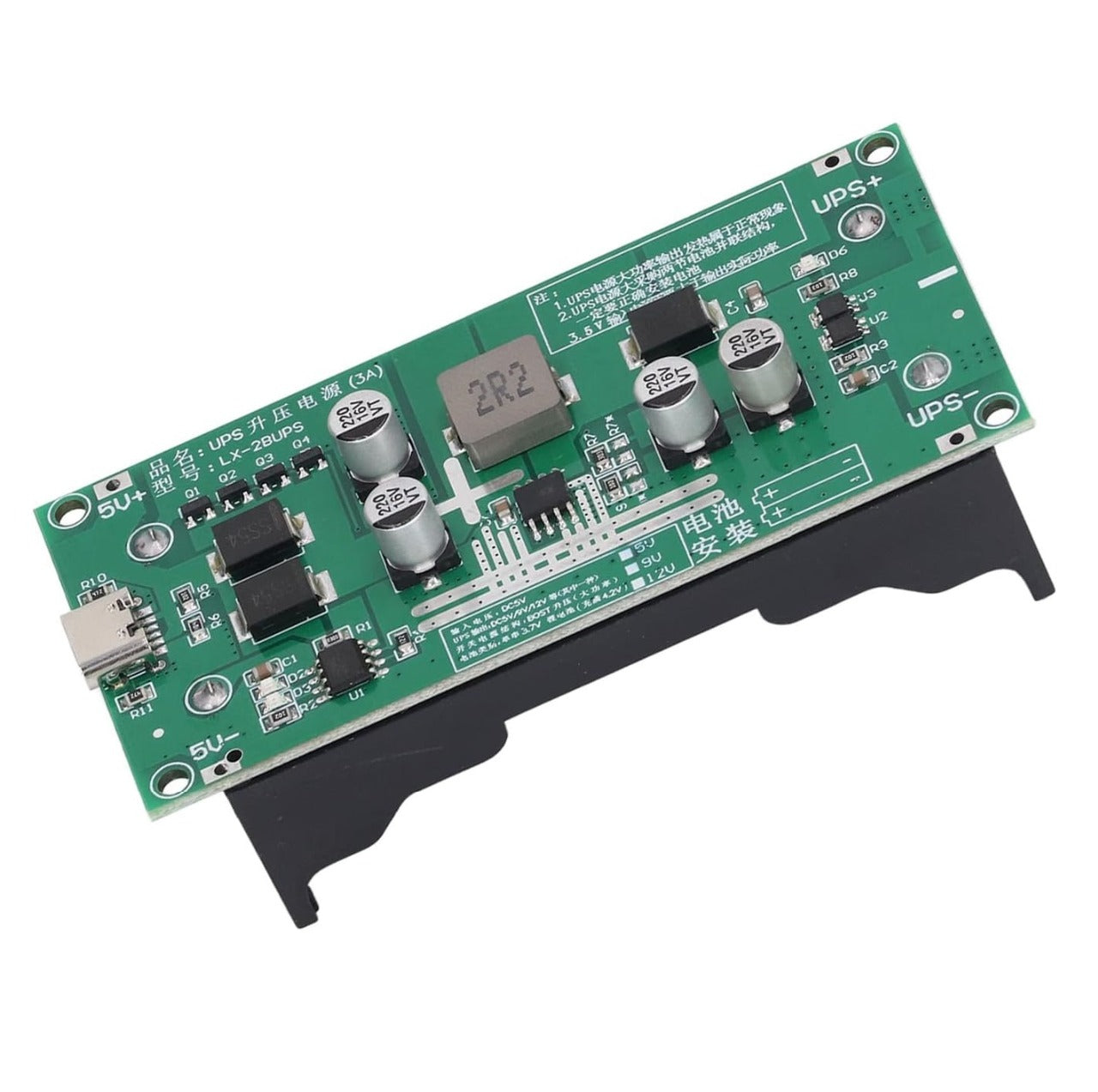

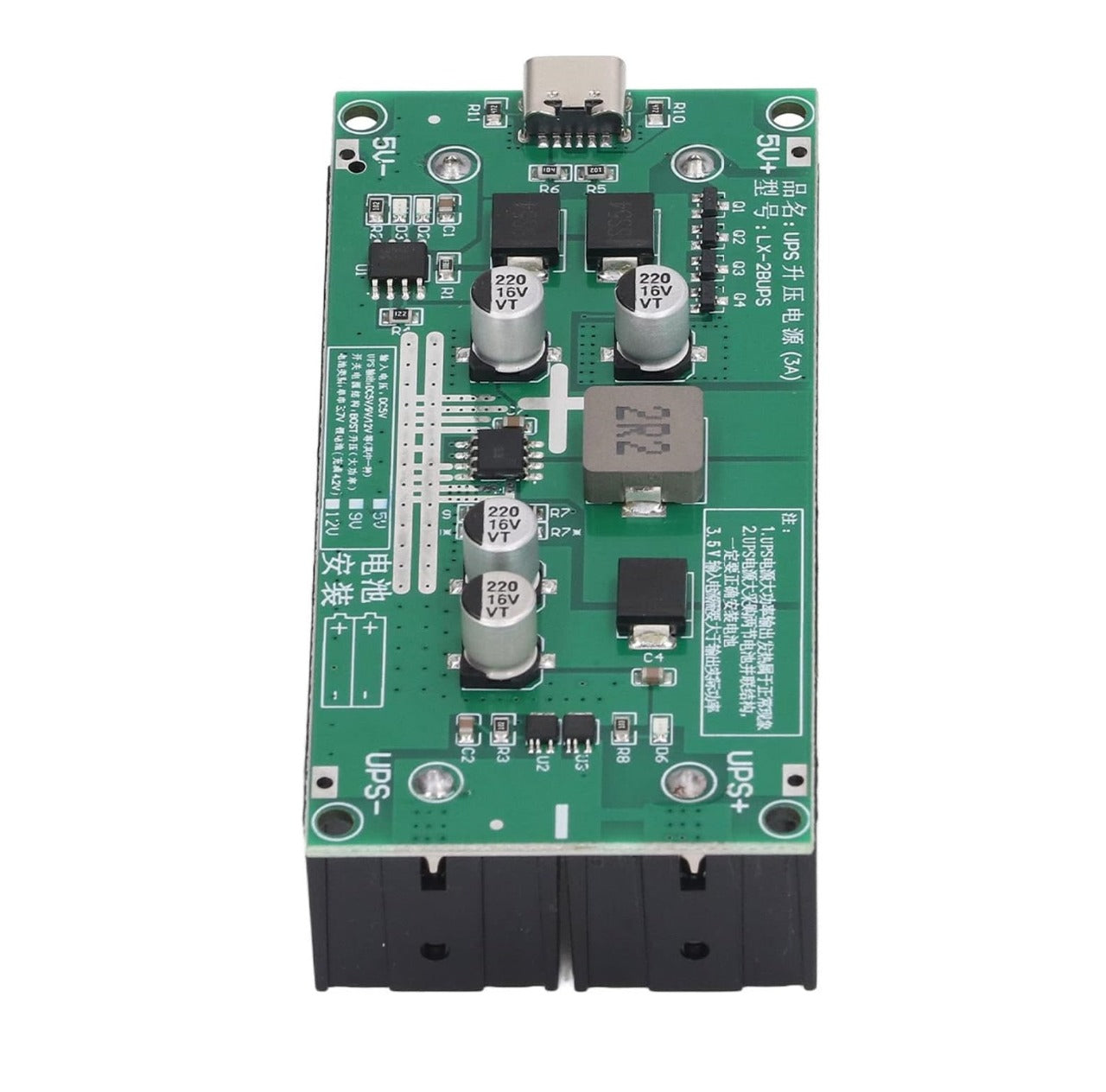

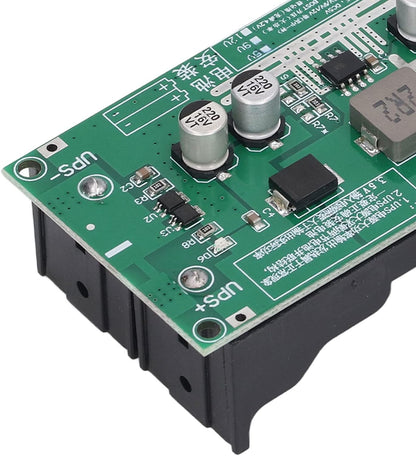

LX-2BUPS Battery 18650 UPS Module 5V @ 3A - 15W - (AD83777)

Description:

This is an 18650 lithium battery load switching module. It has a built-in UPS circuit and can perform dual power supply switching between the power supply and the battery without delay.

The UPS uninterruptible power supply function refers to the module directly supplying power to the load through the boost circuit when the power supply has voltage, and simultaneously supplying power to the lithium batteries for charging.

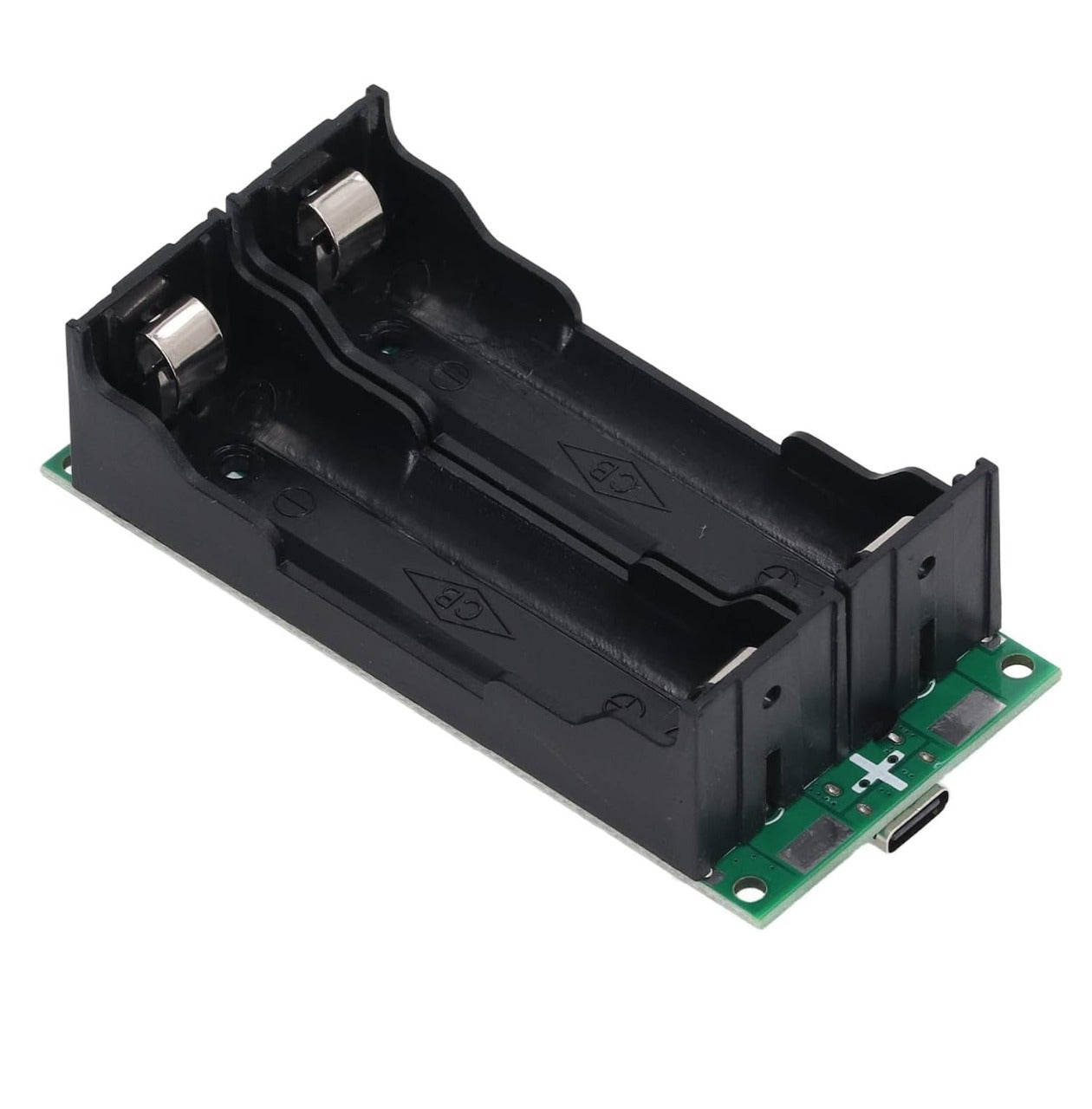

The module's interface is designed with two battery sockets, a universal Type-C charging port, and a direct 5V DC input, providing convenient options for the lithium battery.

Additionally, it has a two-color LED indicator, with the blue D2 LED remaining continuously lit when the battery is fully charged and the charging process automatically stopping; with the red D3 LED remaining lit when the battery is being charged; the D6 LED indicates the presence of 5V at the output of the charging circuit.

This module has excellent protection: once the power is cut, the battery path will automatically start, and power will be restored to the load after power-on, with short-circuit, over-voltage, and under-voltage protection.

Features:

- Item type: Battery boost charging module

- Model: LX-2BUPS

- Battery type: 3.7V Lithium (4.2V fully charged)

- Maximum output: 5VDC, 3A, 15W
