HC-SR04 Ultrasonic Ranging Module - (AD830)

Description:

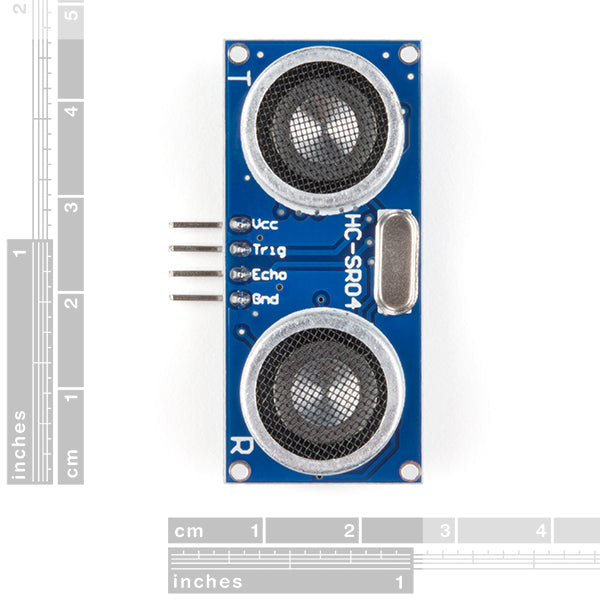

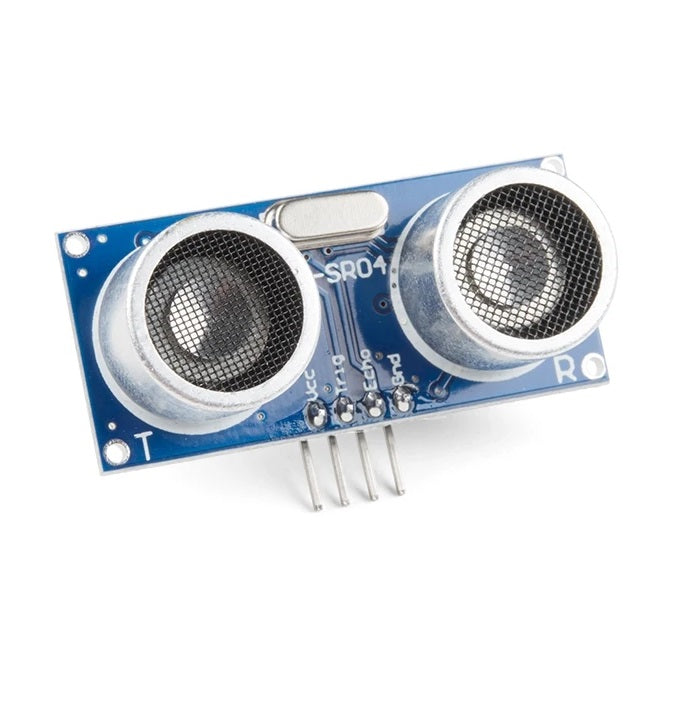

This is the HC-SR04 ultrasonic distance sensor. This cost-effective sensor provides non-contact measurement functionality from 2 cm to 400 cm with a ranging accuracy of up to 3 mm. Each HC-SR04 module includes an ultrasonic transmitter, a receiver, and a control circuit.

There are only four pins you need to worry about on the HC-SR04: VCC (power), enable (activate), echo (receive), and ground (ground). You'll find this sensor very easy to set up and use for your next range-finding project!

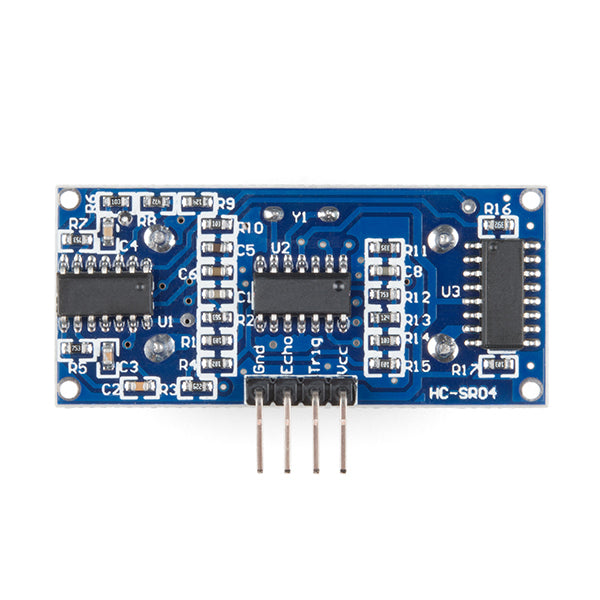

This sensor has an additional control circuit that can prevent inconsistent data "bounce" depending on the application.

Specs:

- Working voltage: 5VDC

- Working current: 15mA

- Working frequency: 40Hz

- Maximum range: 4m

- Minimum range: 2cm

- Measuring angle: 15°

- Output signal compatible with TTL logic

Data sheet
