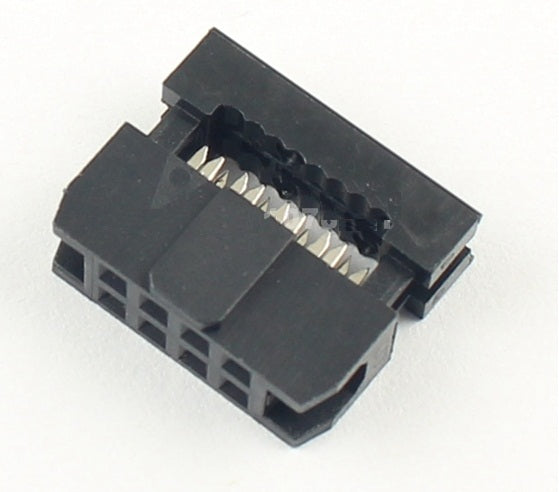

2x4 Female Ribbon Crimp Connector - 8 Pin - (AD8259)

Description:

These 2x4 crimp connectors can be attached to a ribbon cable with up to 8 wires to make your own cable assemblies and keep your connections organized. Simply press the connector onto your ribbon cable, no soldering required, making it easier to add as many mid-cable connectors as needed.

Note: The price is for one connector.

Features:

- Pin Pitch: 2.54mm

- Gender: Female

- Number of Pins: 2x4

- Connector Type: IDC

- Row Type: Dual

Specifications:

- Current: 3A

- Operating Temperature: -40°C to +105°C

- Contact Resistance: 20mOhms

- Insulation Resistance: 1000MOhms

- Maximum Voltage: 1000VAC

- Insulation Material: Polyester (UL94V-0)

- Standard: PBT

- Contact Material: Brass
