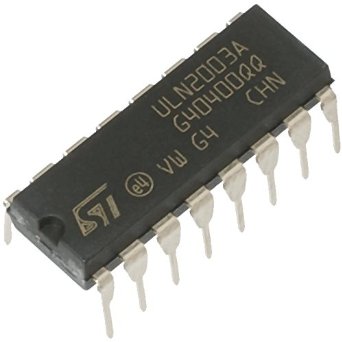

ULN2003 Seven Darlington Array NPN 50V @ 500mA - (AD8176)

Description:

The ULN2003 is a high-voltage, high-current Darlington array containing seven pairs of common-emitter open-collector Darlington transistors. Each channel supplies 500 mA and can withstand peak currents of 600 mA. Suppression diodes are included for inductive loads.

Characteristics:

- Seven Darlingtons per package with 500mA current output

- Integrated suppression diodes with 50V voltage output

- Compatible with TTL, CMOS, PMOS, DTL

Data sheet
