Breadboard Power Supply Module 3.3V - 5V - (AD807)

Description:

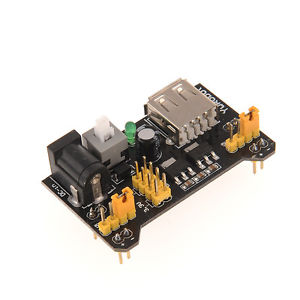

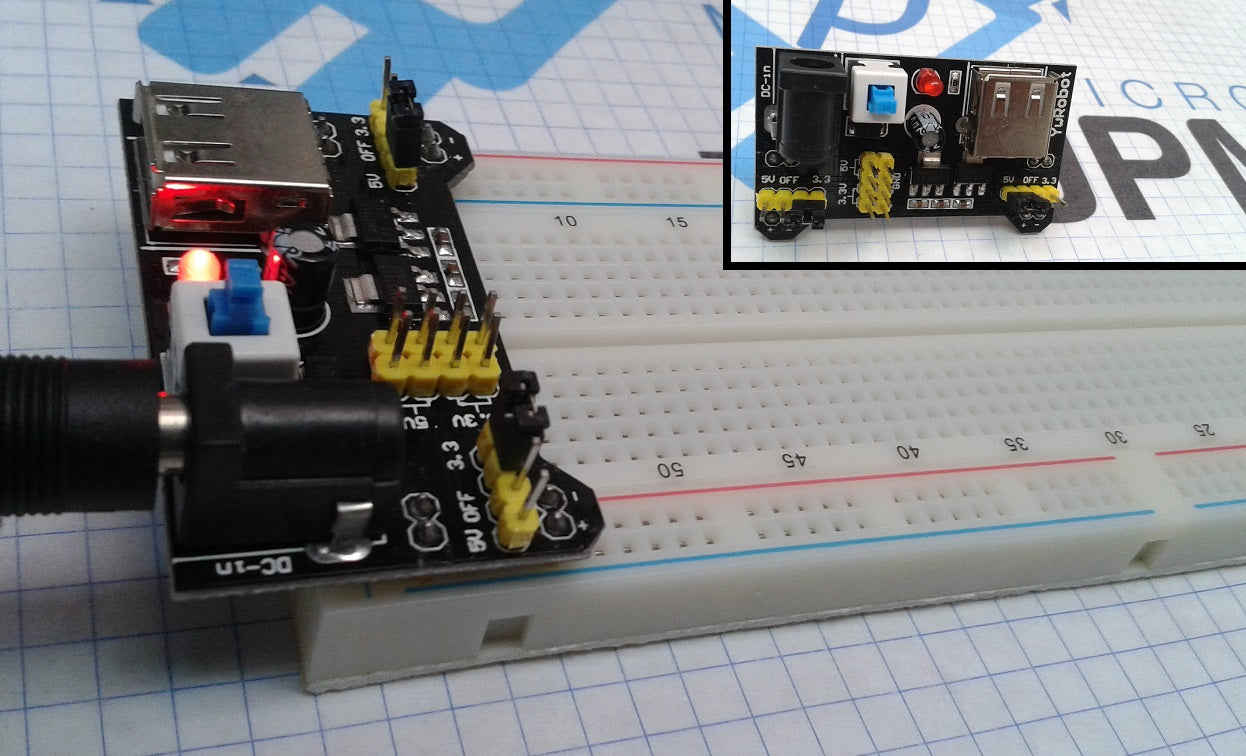

A very simple breadboard power supply board that draws power from any USB port and outputs regulated 5V and 3.3V. The 0.1" connectors are mounted on the bottom of the PCB for simple insertion into the breadboard. Pins labeled 5V and 3.3V connect directly to the breadboard lines.

It comes pre-fitted with a USB Type-A connector that delivers a maximum of 500mA at 5V. It also has a manual on/off switch.

Note: Breadboard not included, Cable not included.

Features:

- Compatible with 5V, 3.3V

- Applicable to MB102 breadboard.

- Input voltage: 6.5-12 V (DC) or USB

- Output voltage: 3.3V/5V Jumper for the switch.

- Maximum output current: <700 mA.

- Fluctuates between two independent control modes, can switch between 0V, 3.3V, 5V

- On the module there are two groups of 3.3V, 5V DC output pins.

- Dimensions: 5.3cm x 3.5cm.
