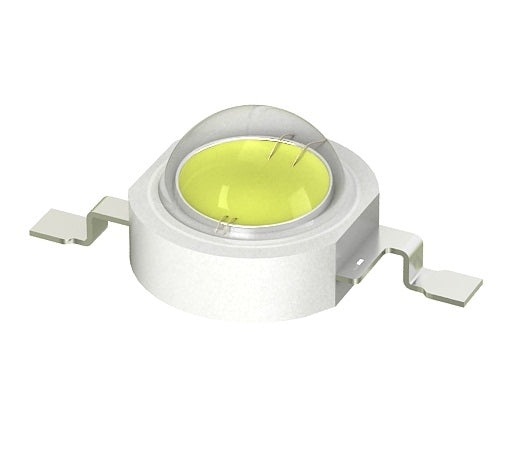

White LED - 3W to Aluminum PCB - (AD805)

Description:

So much power and so much light in such a small package. This aluminum-backed, no-PCB "cool" white 3-watt LED is sure to throw a lot of light on any project you add it to. These LEDs act just like any other LED except these little guys require a lot more power while putting out light as intense as a thousand suns going supernova (this is an exaggeration, but you know what we mean)!

Each LED needs an aluminum-backed PCB to help with heat dissipation and outputs a warm white light. Additionally, each LED requires a forward voltage of 3.2-3.8V at 750mA.

Note: We like to joke about supernovas and all that, but seriously, don't look directly at the LED.

Features:

- Forward Voltage: 3.2-3.8V

- Forward Current: 750 mA

- Viewing Angle: 125 ± 5 degrees

- Luminous Intensity: 160-200LM

- Color Temperature: 3000-3300K

Documents:

• Datasheet
• Product Video
