OP22B01 (12V) Voltage Signal Detection Module 110V-220VAC to 12VDC - (AD80293)

Description:

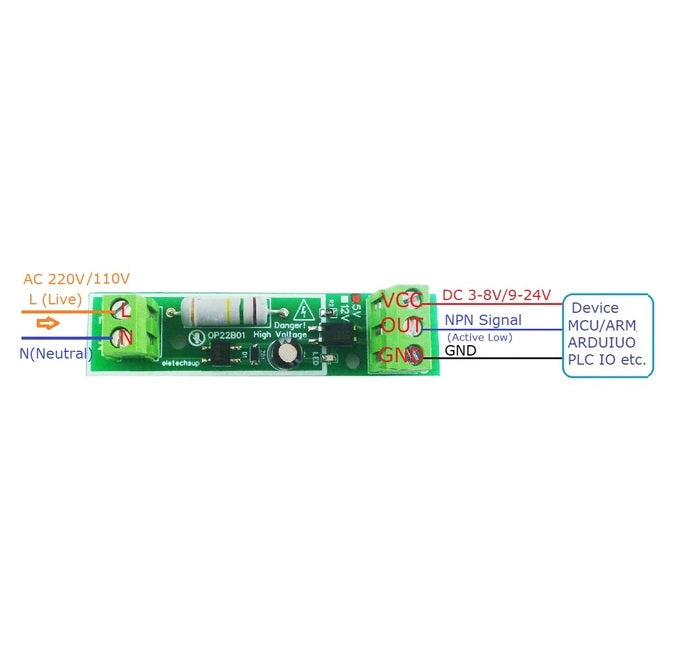

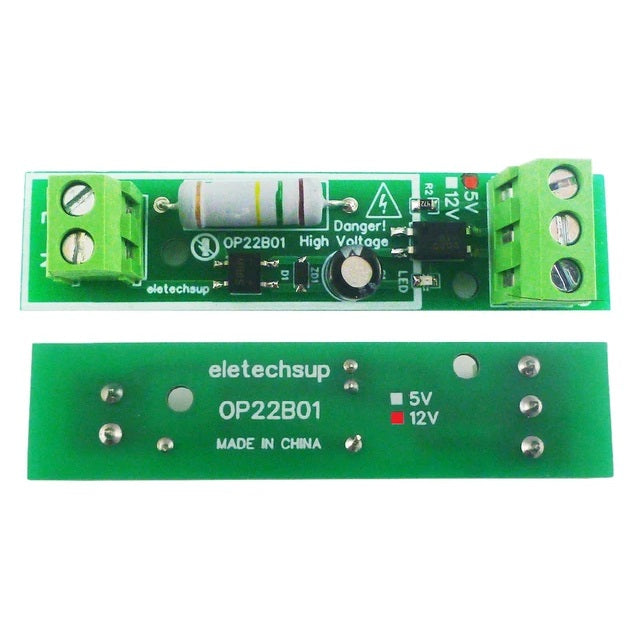

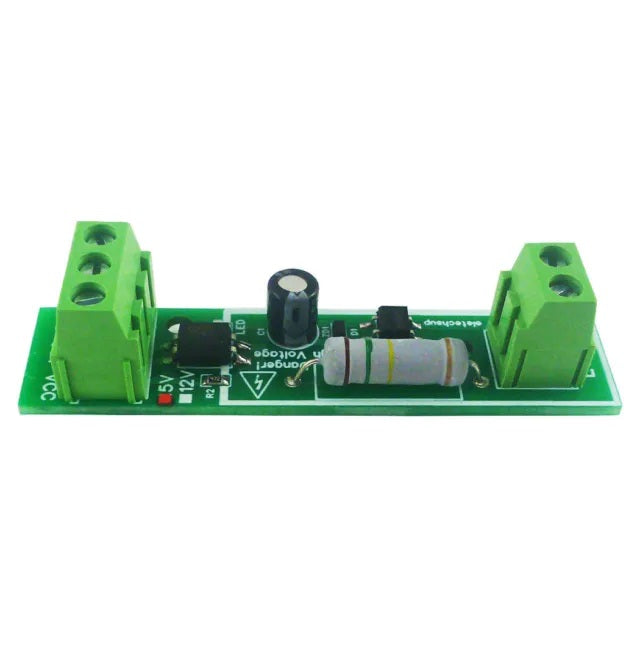

This is a single-phase AC voltage detector module, this board can detect AC voltages from 110 to 220V by means of the MB6S opto-coupler, and can supply a digital output from 3.3V to 24VDC, this version is 12VDC , this signal can be used to be detected by a PLC or microcontroller.

When there is 110 to 220VAC input, the LED light is on and the OUT port outputs a low level; when there is no 110 to 220VAC input, the LED light is off and the OUT port outputs a high level.

Note: The L-N terminal and the device on the white line are high voltage! Be careful when using them!

Specs:

- Detected voltage: AC 110V - 220V

- Output level: DC 12V

- Output signal type: NPN

- Output signal current: 3mA

- Insulation voltage: 3000V

- Signal frequency: <5KHz

- Working temperature: - 40 to 110º Celsius

- Size: 72x17x18mm

Data sheet
