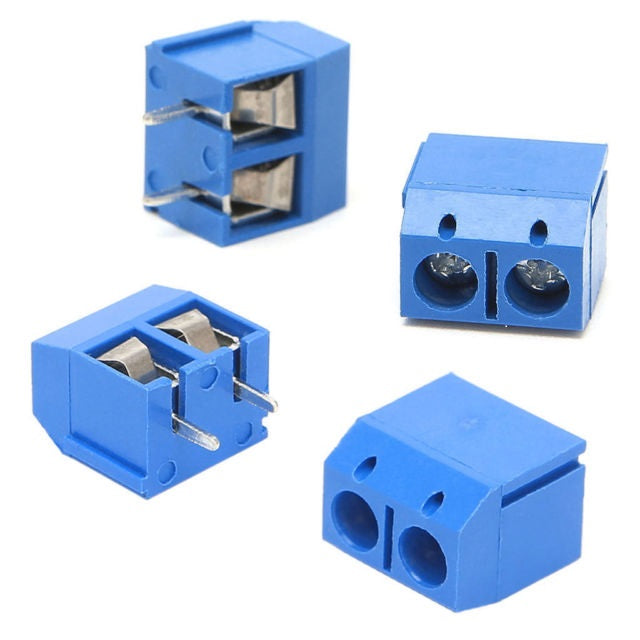

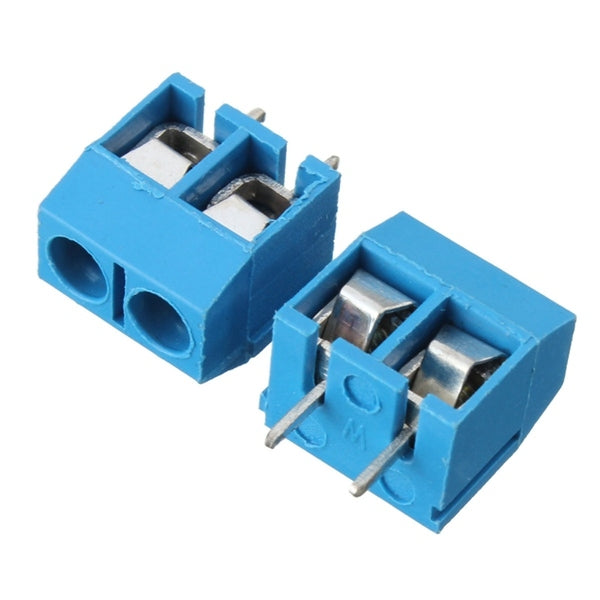

DG126-2 Terminal Block 2-Pole 5mm - (AD7960)

Description:

5mm spaced screw terminals. Comes in 2 or 3 positions and has the really cool feature of sliding lock to form any size you need (4 pins, 5, or up to 20 pins without problems). Rated up to 300V at 8A. The terminal can accept 26 to 14 AWG wires. The 5mm pin pitch will line up nicely with standard 0.1" perfboards, but the pins are thick enough (1.0mm OD) that you may need to increase the hole diameter on some perfboards.

Note: Sold in individual units!

Specifications:

- Number of poles: 2

- Pin spacing: 5mm

- Fits 12 - 24 AWG wire

- Current rating: 8A, 300V

- Insulation resistance: 5000Mohm/DC1000V
