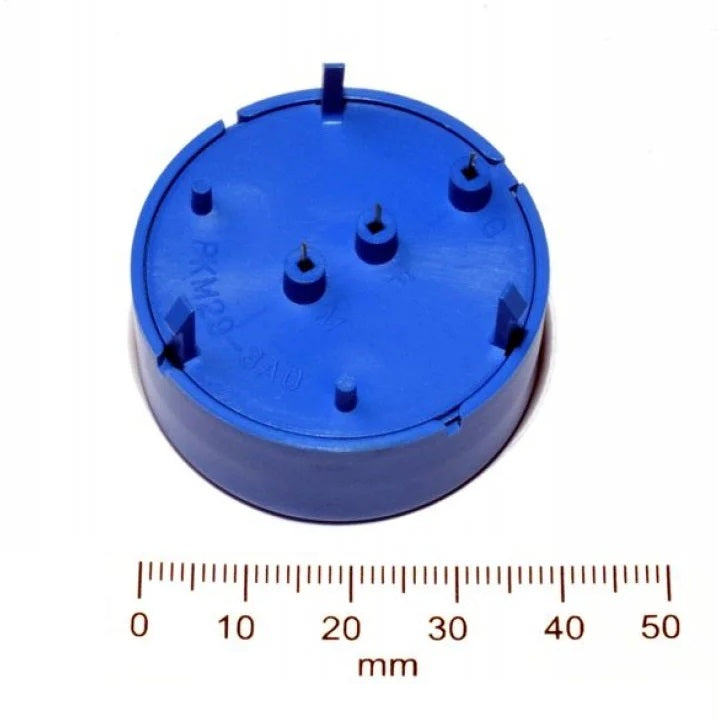

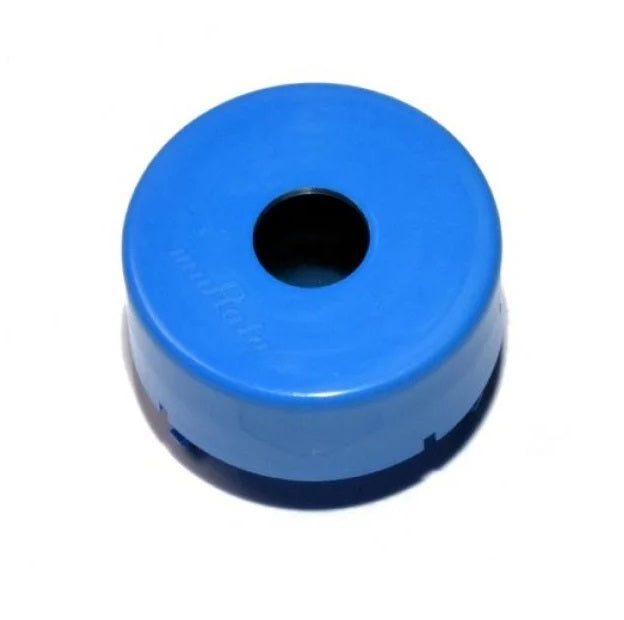

PKM29-3A0 Murata Passive Buzzer (39mm, 3.4kHz, 18V) - (AD79495)

Description:

This is a small, high-quality passive buzzer with a diameter of 39mm and a height of 16mm. You can use these devices to create simple sound or user interfaces. Each buzzer is for PCB mounting, has 3 pins, and requires a maximum operating voltage of 18V. These buzzers also have a typical sound output of 105 dB.

Note: Sold individually!

Features:

- Manufacturer Part Number: PKM29-3A0

- RoHS: Yes

- Buzzer Type: Piezoelectric

- Frequency: 3.4KHz

- Operating Voltage: 4.5 to 18VDC

- Sound Pressure Level: 105dB

- Termination: Pins

- Operating Temperature: -40°C to +85°C

Datasheet 1

Datasheet 2
