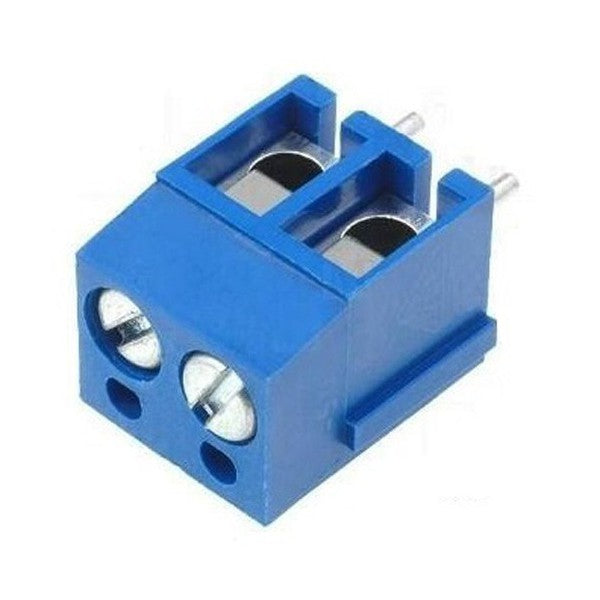

DG128-2 2-Pole 5mm Terminal Block - (AD7945)

Description:

Screw terminals spaced at 5mm. Comes in 2 or 3 positions and has the really cool feature of slide-locking to form any size you need (4 pins, 5, or up to 20 pins without problems). Rated up to 300V at 10A. The terminal can accept 26 to 14 AWG wires. The 5mm pin pitch will align well with standard 0.1" perfboards, but the pins are thick enough (1.0mm OD) that you may need to increase the hole diameter on some perfboards.

Specifications:

- Number of poles: 2

- Pin spacing: 5mm

- Fits 12 - 24 AWG wire

- Current rating: 10A, 300V

- Insulation resistance: 5000Mohm/DC1000V

Datasheet
