TTGO ESP32 Board UNO (WiFi + Bluetooth) - (AD79299)

Description:

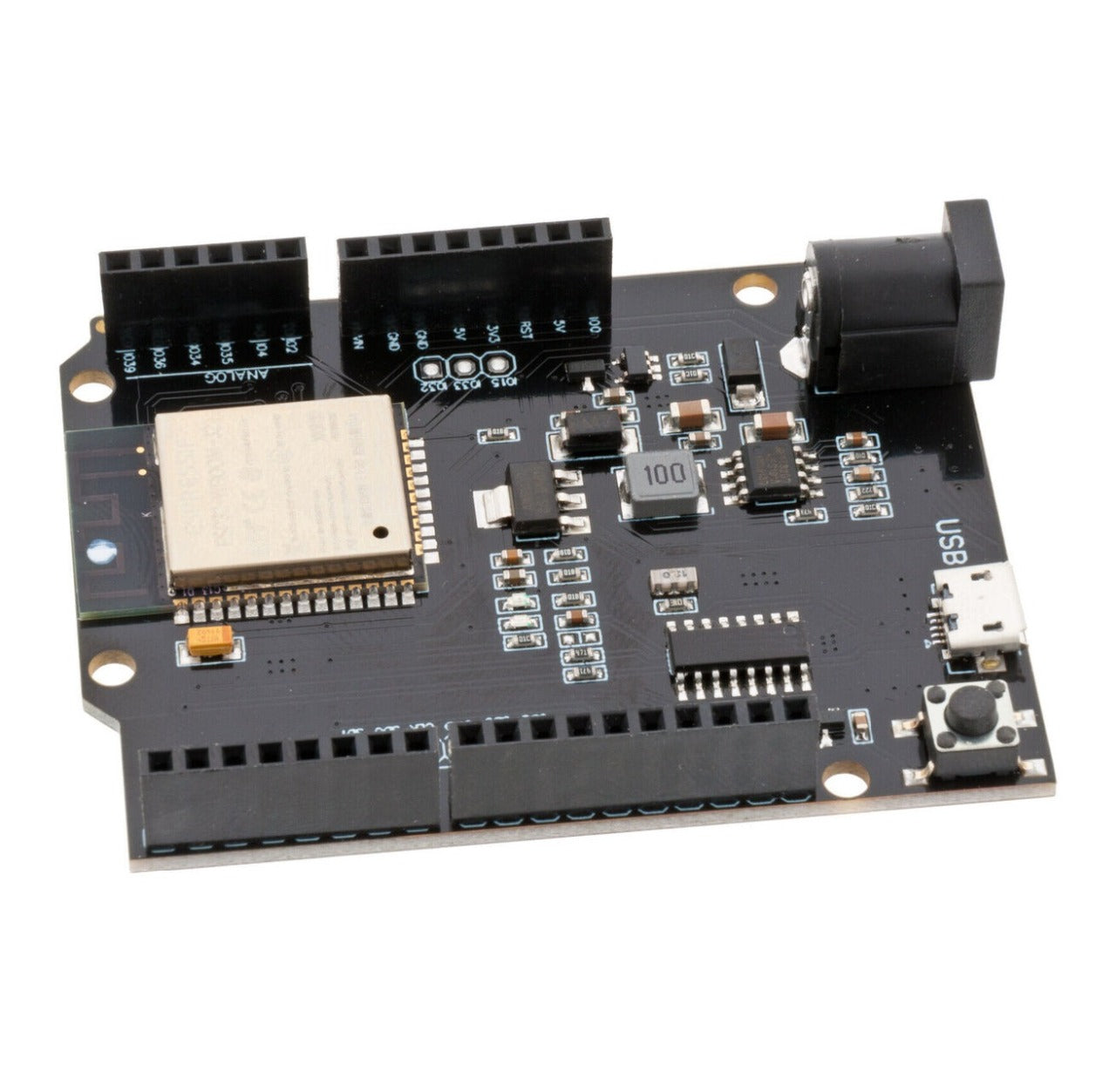

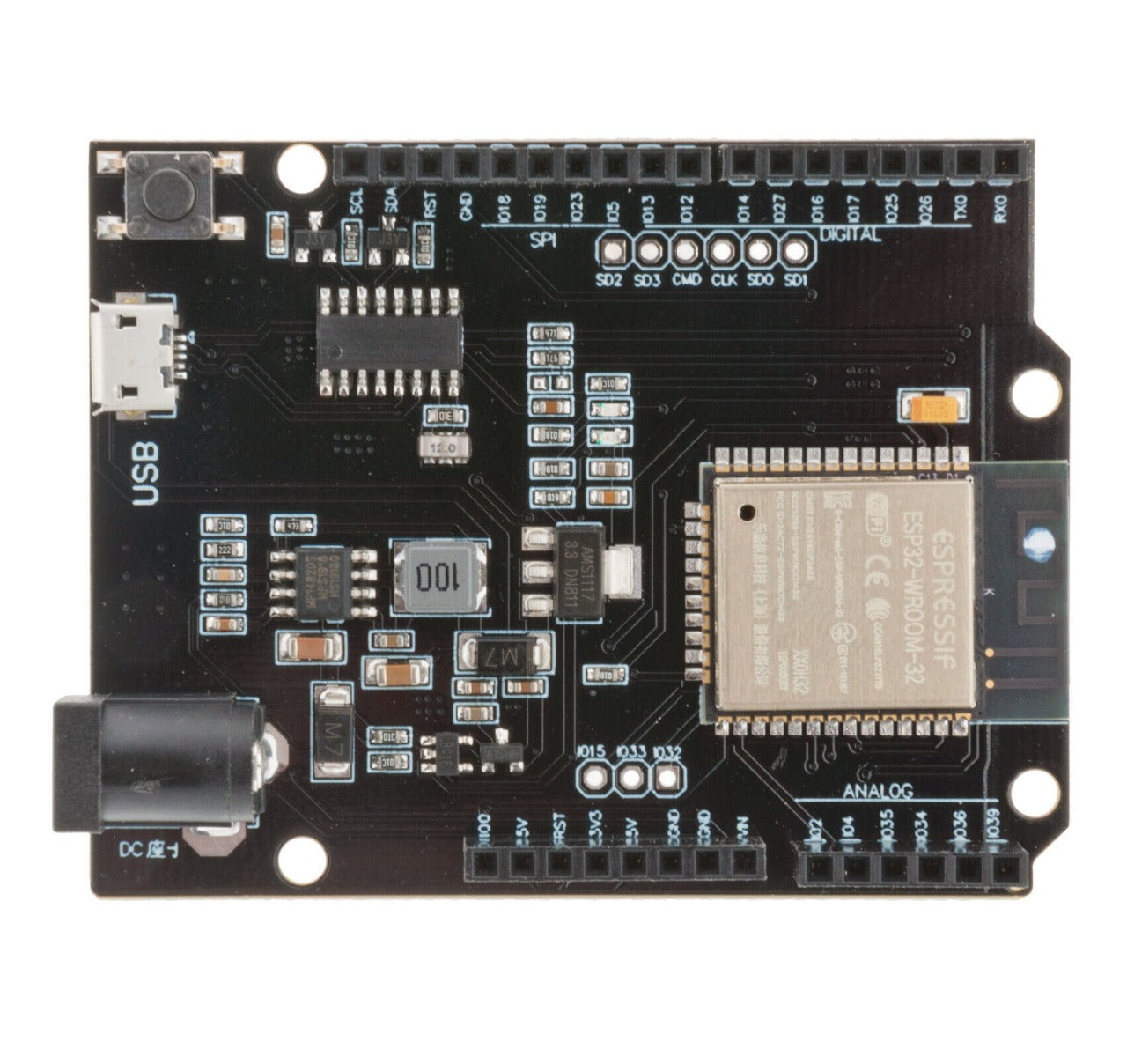

This board is assembled with an ESP-WROOM-32 module and has the standard size and connectors of an UNO board. Please note that all I/O pins are 3.3V!

NOTE! DO NOT use it with 5V shields! It can permanently damage the board! Use only with 3.3V shields and modules.

The ESP-WROOM-32 (ESP-32S) is a WiFi and Bluetooth module that uses the popular ESPRESSIF ESP32 chip. The ESP32 chip integrates a dual-core processor with 448 KByte of ROM, 520 KByte of SRAM, 16 KByte of SRAM in RTC, Wi-Fi 802.11 b/g/n/e/I, Bluetooth v4.2 BR/EDR and BLE, clocks and timers, abundant peripheral interfaces, and security mechanism.

Software can be developed using many different platforms, including Arduino. It is designed for low-power generic IoT sensor hubs, loggers, video streaming for cameras, Wi-Fi and Bluetooth enabled devices, home automation, and mesh networking applications, targeting manufacturers, hardware engineers, software engineers, and solution providers.

The ESP32 is the most integrated solution for Wi-Fi + Bluetooth applications in the industry with fewer than 10 external components. ESP32 integrates the antenna switch, RF balun, power amplifier, low-noise receive amplifier, filters, and power management modules. As such, the entire solution occupies minimal printed circuit board (PCB) area.

Features:

- Standard UNO board size and headers

- CPU & Memory: Dual-core 32-bit Xtensa® LX6 processor, up to 600 DMIPS

- 4 MB SPI Flash

- 448 KB ROM

- 520 KB SRAM

- Compact size of 68mm x 53mm x 3.1mm (±0.2mm)

- Supply Voltage: DC 5V to 12V

Wi-Fi

- 802.11 b/g/n/e/i

- 802.11n (2.4 GHz), up to 150 Mbps

- 802.11 e: QoS for wireless multimedia technology

- WMM-PS, UAPSD

- MPDU and A-MSDU aggregation

- Block acknowledgment

- Fragmentation and Defragmentation

- Automatic beacon monitoring/scanning

- 802.11 i security features: pre-authentication and TSN

- Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)

- Infrastructure BSS station mode/SoftAP mode

- Wi-Fi Direct (P2P), P2P discovery, P2P group owner mode and P2P power management

Bluetooth

- Compliant with Bluetooth v4.2 BR/EDR and BLE specifications

- Class 1, class 2 and class 3 transmitter without external power amplifier

- Enhanced power control

- +10 dBm transmitting power

- NZIF receiver with -98 dBm sensitivity

- Adaptive Frequency Hopping (AFH)

- Standard HCI based on SDIO/SPI/UART? High-speed UART HCI, up to 4 Mbps

- BT 4.2 Controller and Host Stack

- Service Discovery Protocol (SDP)

- General Access Profile (GAP)

- Security Management Protocol (SMP)

- Bluetooth Low Energy (BLE)

- AT/GATT

- HID

- All GATT-based profiles are supported

- GATT-based profile similar to SPP

- BLE Beacon

- A2DP/AVRCP/SPP, HSP/HFP, RFCOMM

- CVSD and SBC for audio codec

- Bluetooth Piconet and Scatternet
