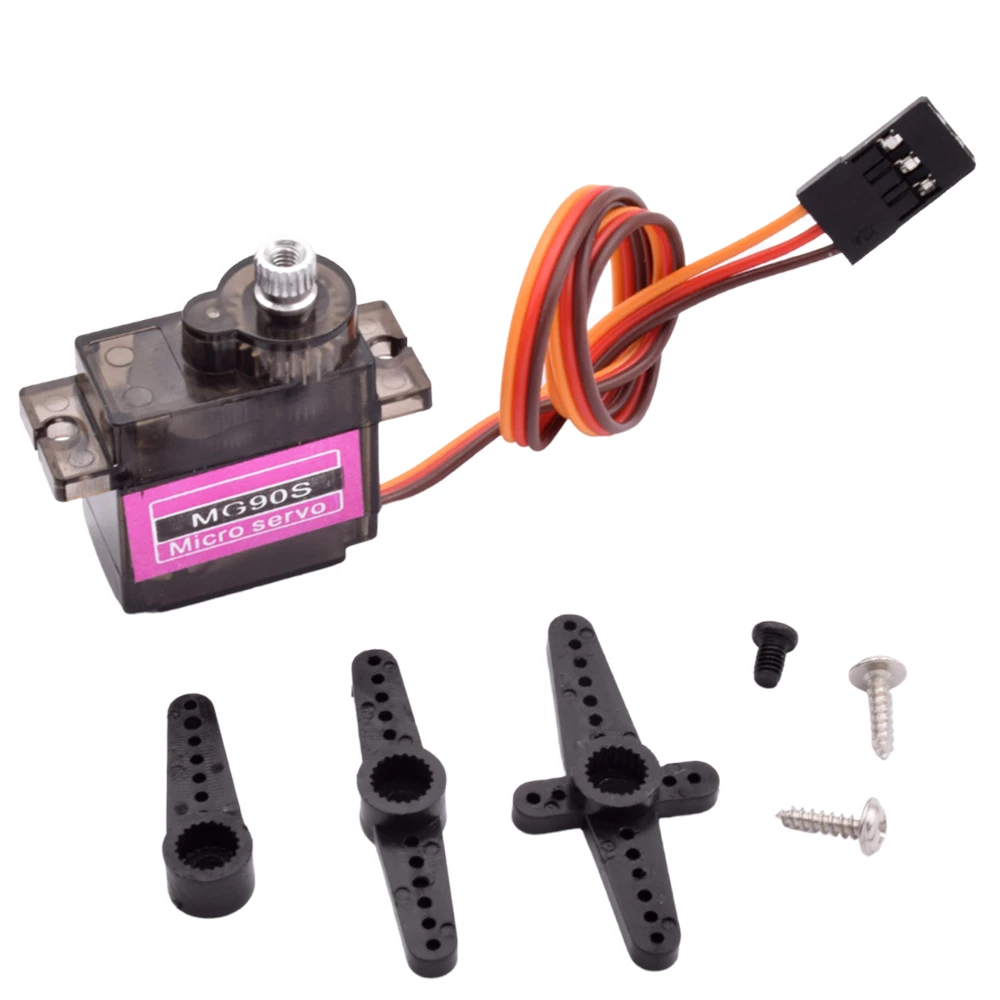

MG90S (360º) Micro Servo - High Torque Metal Gear - (AD78110)

Description:

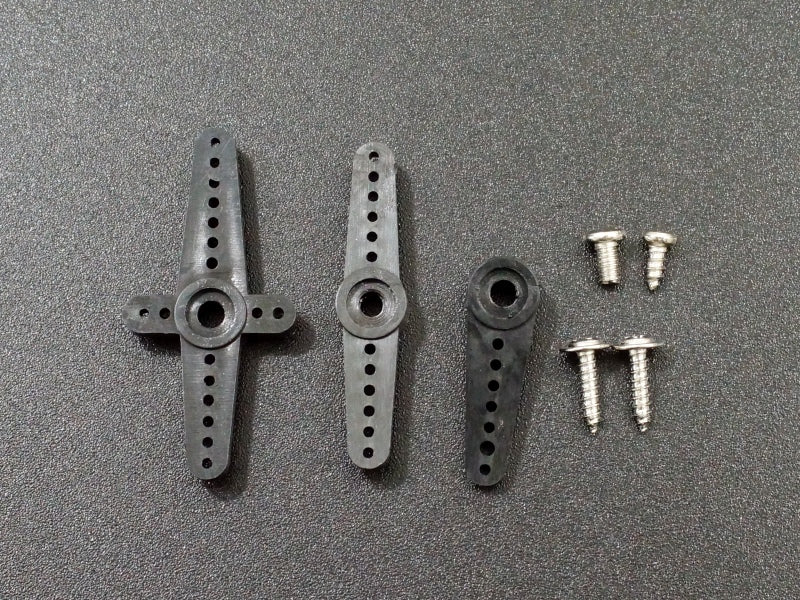

Add more power to your robot with this metal-geared servo. The tiny servo can rotate approximately 360 degrees, and works just like the standard types you've used, but smaller. You can use any servo code, hardware, or library to control these servos. Ideal for beginners who want to move things without building a motor controller with feedback and a gearbox, especially since it fits in small places. Of course, it's not as strong as a standard servo. It works great with the Arduino motor shield, our 16-channel servo driver, or simply by wiring with the Servo library. It comes with a couple of accessories and hardware.

To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE. Position "90" (1.5 ms pulse) is stop, "180" (2 ms pulse) is maximum forward speed, "0" (1 ms pulse) is maximum backward speed. Simple calibration may be required, simply tell the servo to "stop" and then gently adjust the potentiometer in the recessed hole with a small screwdriver until the servo stops moving.

Technical data:
