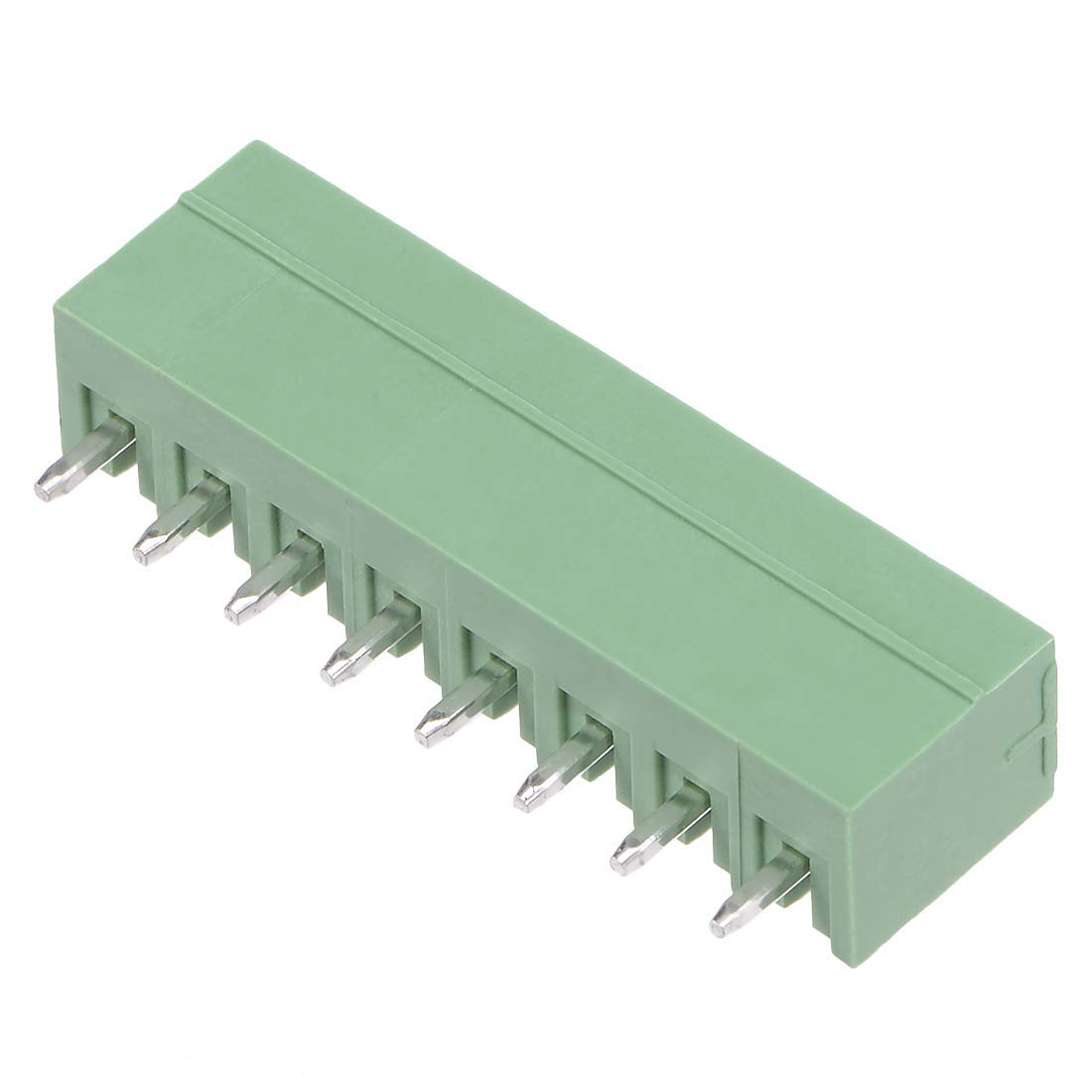

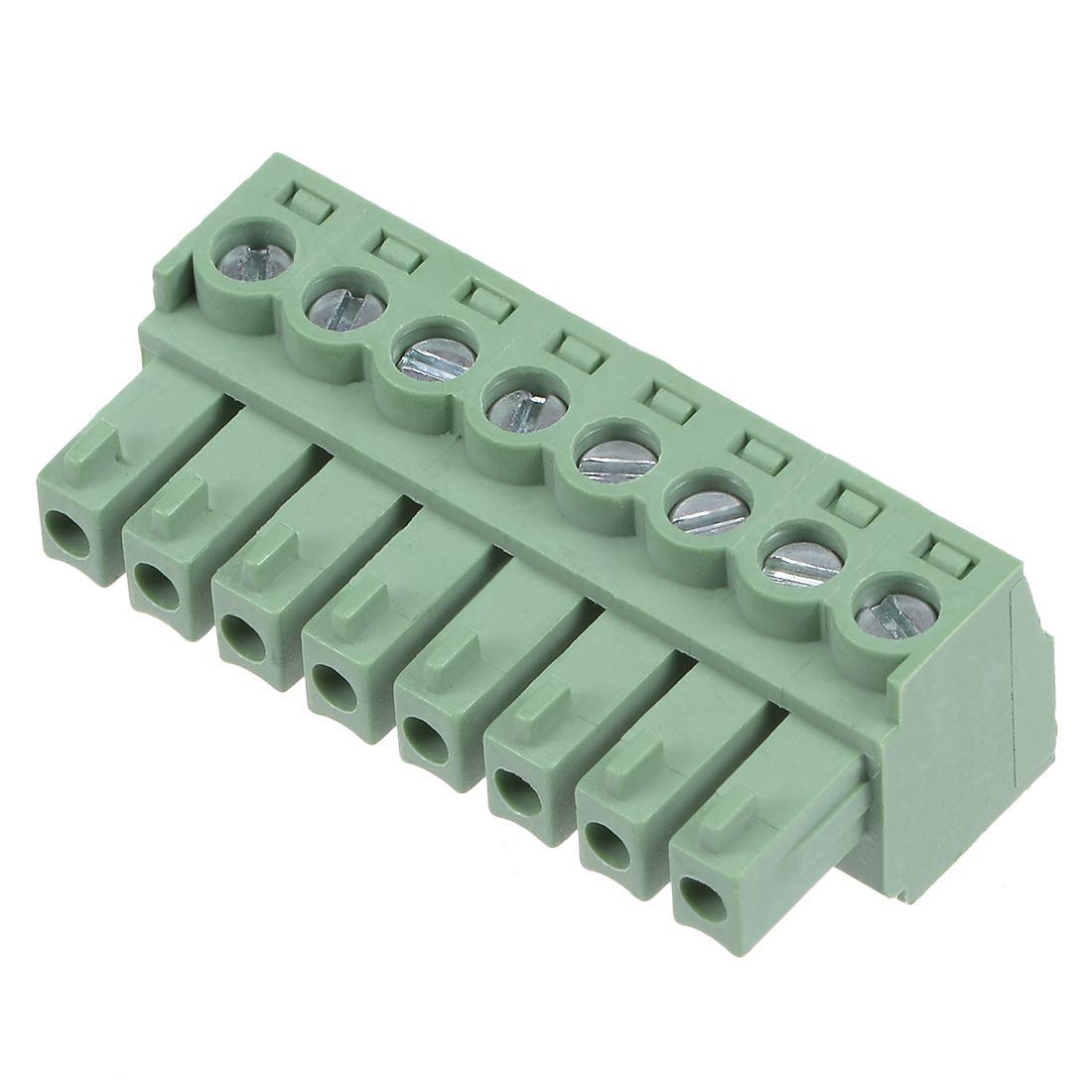

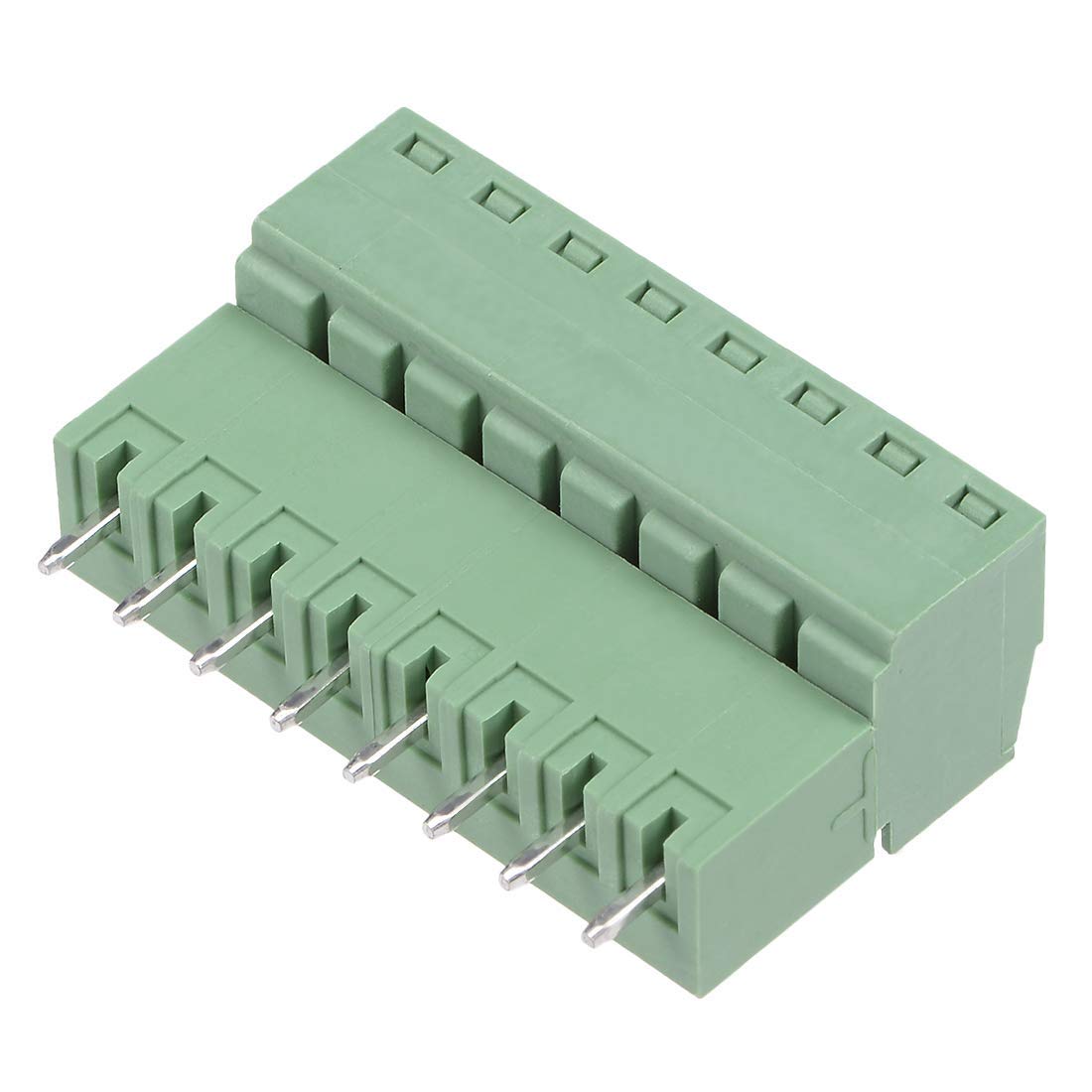

9 Pin Terminal Block Connector 3.81mm Pitch (Male & Female) - (AD77327)

Description:

Screw terminals spaced at 3.81mm. They come in 2 or more positions. Rated up to 300V at 8A. The terminal can accept 26 to 10 AWG wires. The pin pitch is 3.81mm, but the pins are thick enough (1.0mm outer diameter) that you may need to increase the hole diameter on some perfboards.

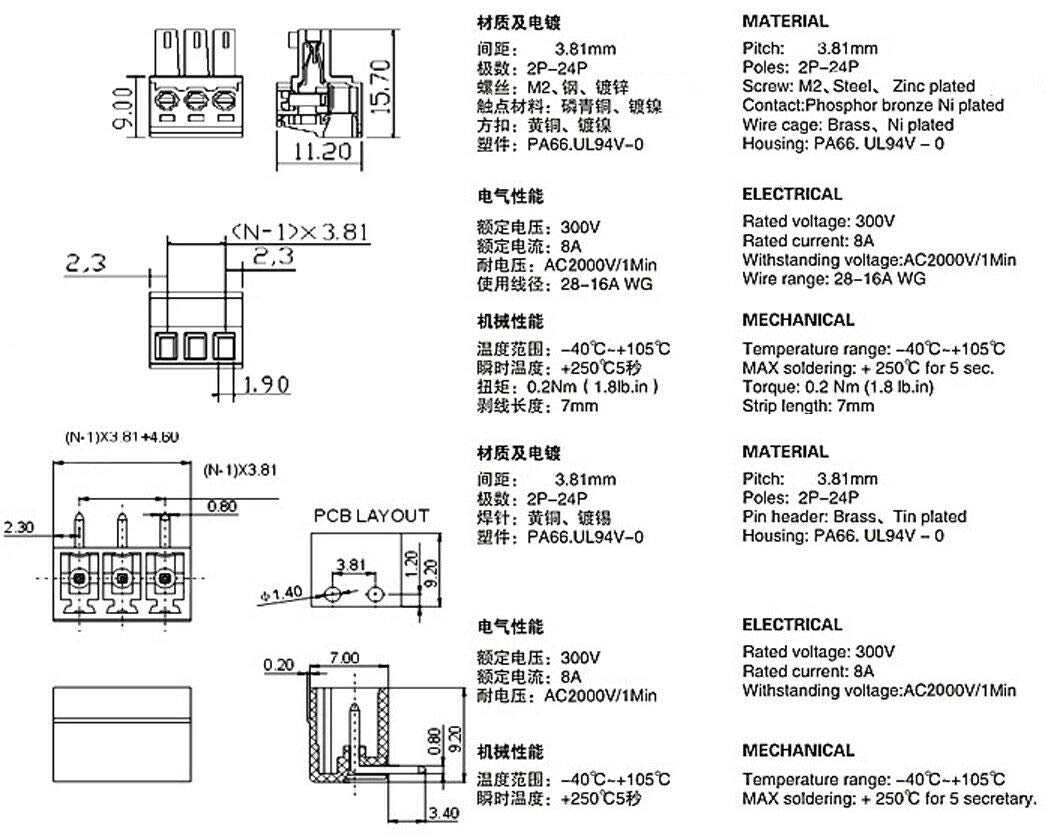

Specifications:

- Maximum voltage: 300V

- Maximum current: 8A

- Contact resistance: 20mΩ

- Insulation resistance: 5000MΩ/1000V

- Wire gauge: 18AWG

- Working temperature: -40°C~+105°C

- Length: 5-6mm

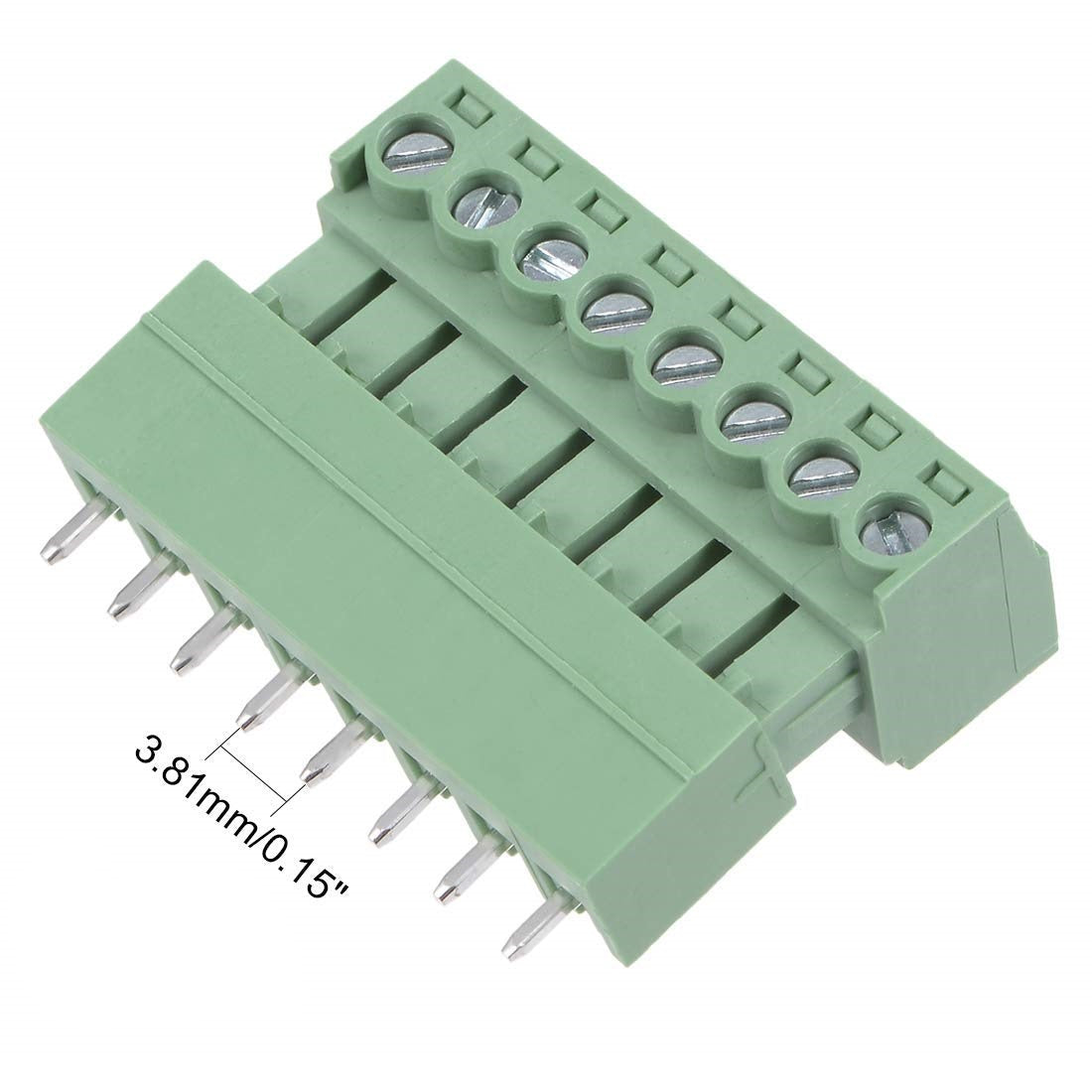

- Pin Spacing: Approx. 3.81mm/0.15"

- Poles: 9P

- Material: Plastic
