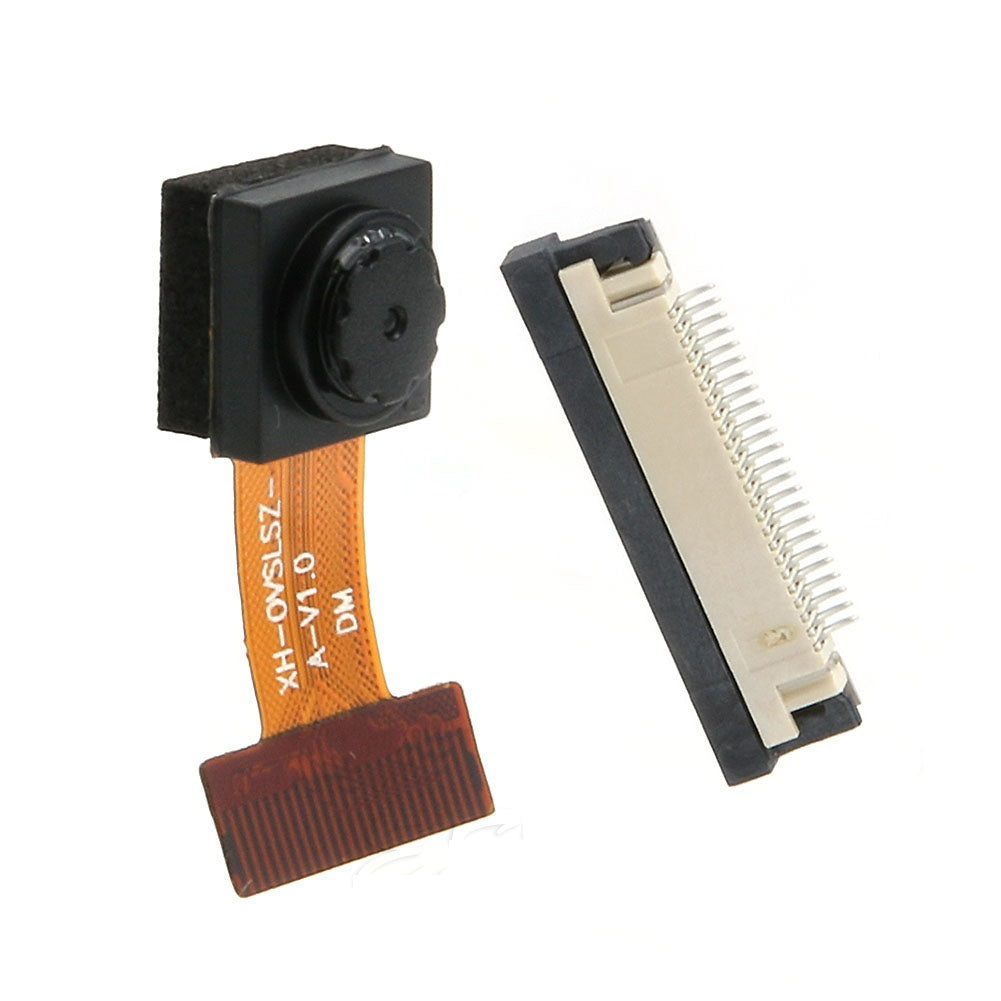

640x480 CMOS Camera Module OV7670+24 pin Socket - (AD76577)

Description:

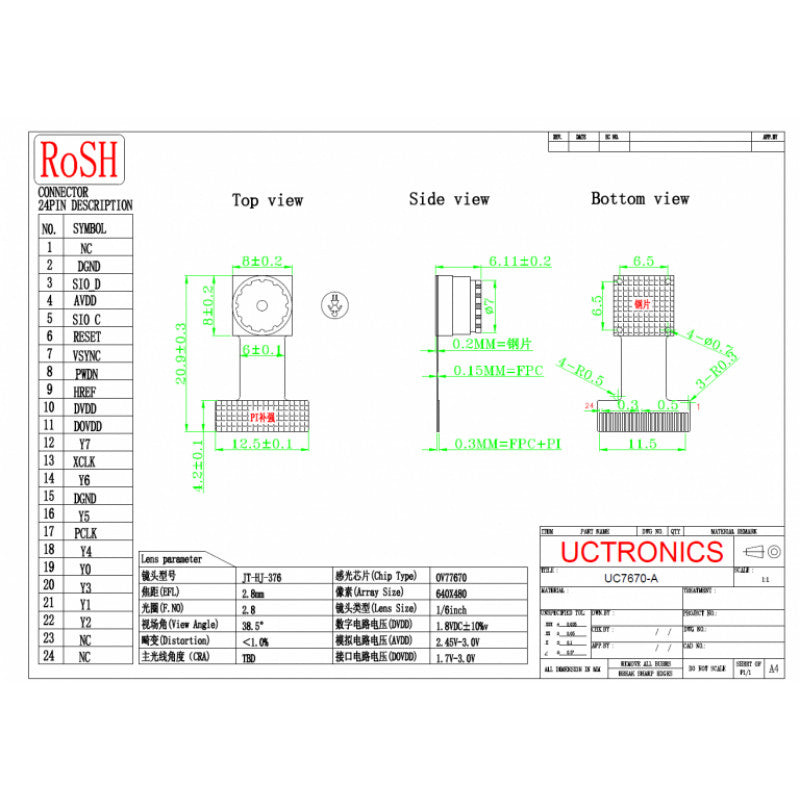

This CCM (Compact Camera Module) based on OV7670 sensor, built with high quality standard lens and FPC with 24 pin Goldfinger interface.

It features an imaging array capable of operating at up to 30 frames per second (fps) in VGA, with full user control over image quality, formatting, and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control, and more, can also be programmed via the SCCB interface.

This tiny camera module can be an addition to your project, it is just like the other JPEG cameras, but much smaller and thinner.

Characteristics:

- IO Voltage: 2.5V - 3.0V

- SNR: 46db

- DIN: 52db

- 0.3 Mega pixels

- Pixel size: 3.6μm x 3.6μm

- Dark current: 12 mV/s at 60°

- Photo matrix: 640 x 480

- Active power: 60mW/15fps VGA

- Optical size: 1/6"

- Angle of view: 67 degrees

- Maximum frame rate: 30 fps VGA

- Sensitivity: 1.3V/(Lux-sec)

- Latency: < 20 μA

- Working temperature: -30° to 70°
