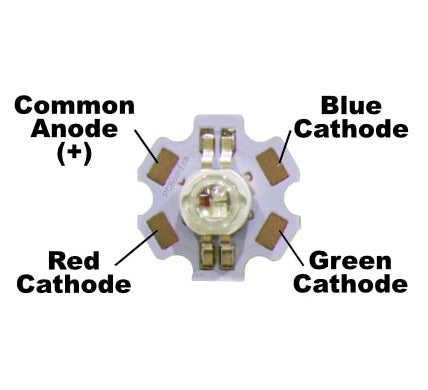

LED RGB 4-Pin 3W with PCB - (AD76374)

Description:

So much power and light in such a small package. This triple-output 3W per channel high power RGB LED is sure to shed a lot of light on whatever project you add it to. This LED acts like any other LED except they require a lot more power while providing light as intense as a thousand suns going supernova (this is an exaggeration, but you know what we mean).

Keep in mind that with all three LEDs on (9W total output), you will need an additional heat sink.

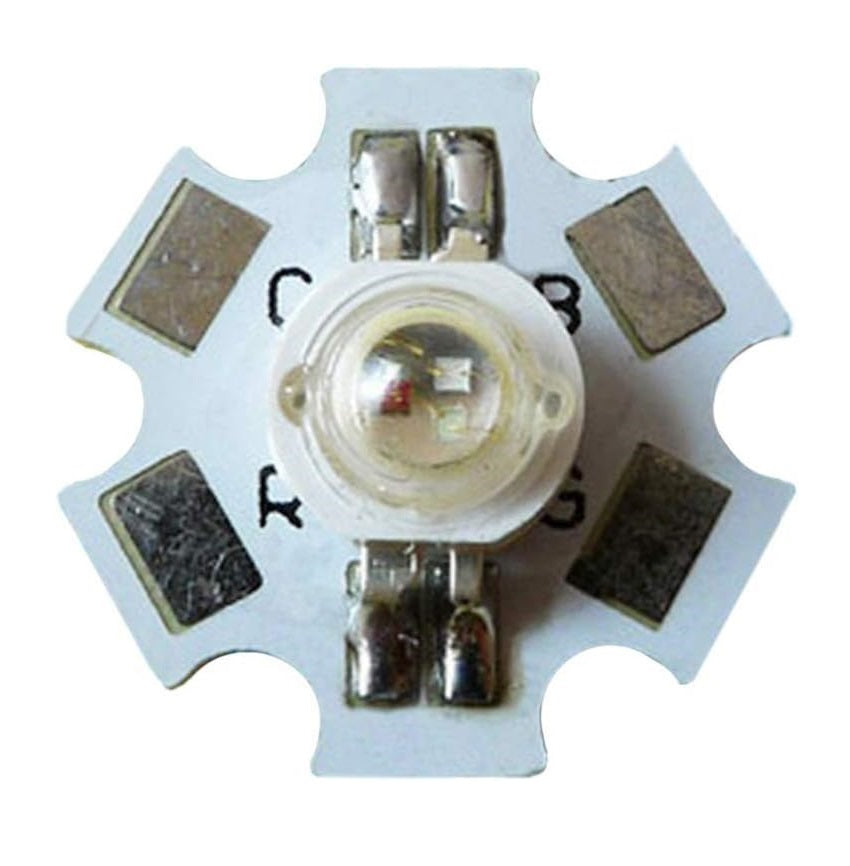

This LED sits on an aluminum-backed PCB to help with heat dissipation, but with a total 9W output, an additional heat sink will be required. Also, each LED requires an operating voltage of 2.2 - 2.6V for red, 3.2 - 3.8V for green, and 3.2 - 3.8V for blue.

Note: We like to joke about supernovas and all that, but seriously, don't look directly into the LED.

Features:

- Size (approx.): 18mm (D) x 8mm (H)

- Aluminum PCB for heat dissipation

- Operating Voltage:

    - Red: 2.2 - 2.6V

    - Green: 3.2 - 3.8V

    - Blue: 3.2 - 3.8V

- Wavelength:

    - Red: 620 nm

    - Green: 520 nm

    - Blue: 460 nm

- Viewing Angle: 140°

Reference Documents:

- Datasheet

- Lumen to MCD Calculator
