NTE R02-11A10-120 Relay DPDT 8-Pin 120VAC - (AD76371)
NTE R02-11A10-120 Relay DPDT 8-Pin 120VAC - (AD76371)
Couldn't load pickup availability
Description:

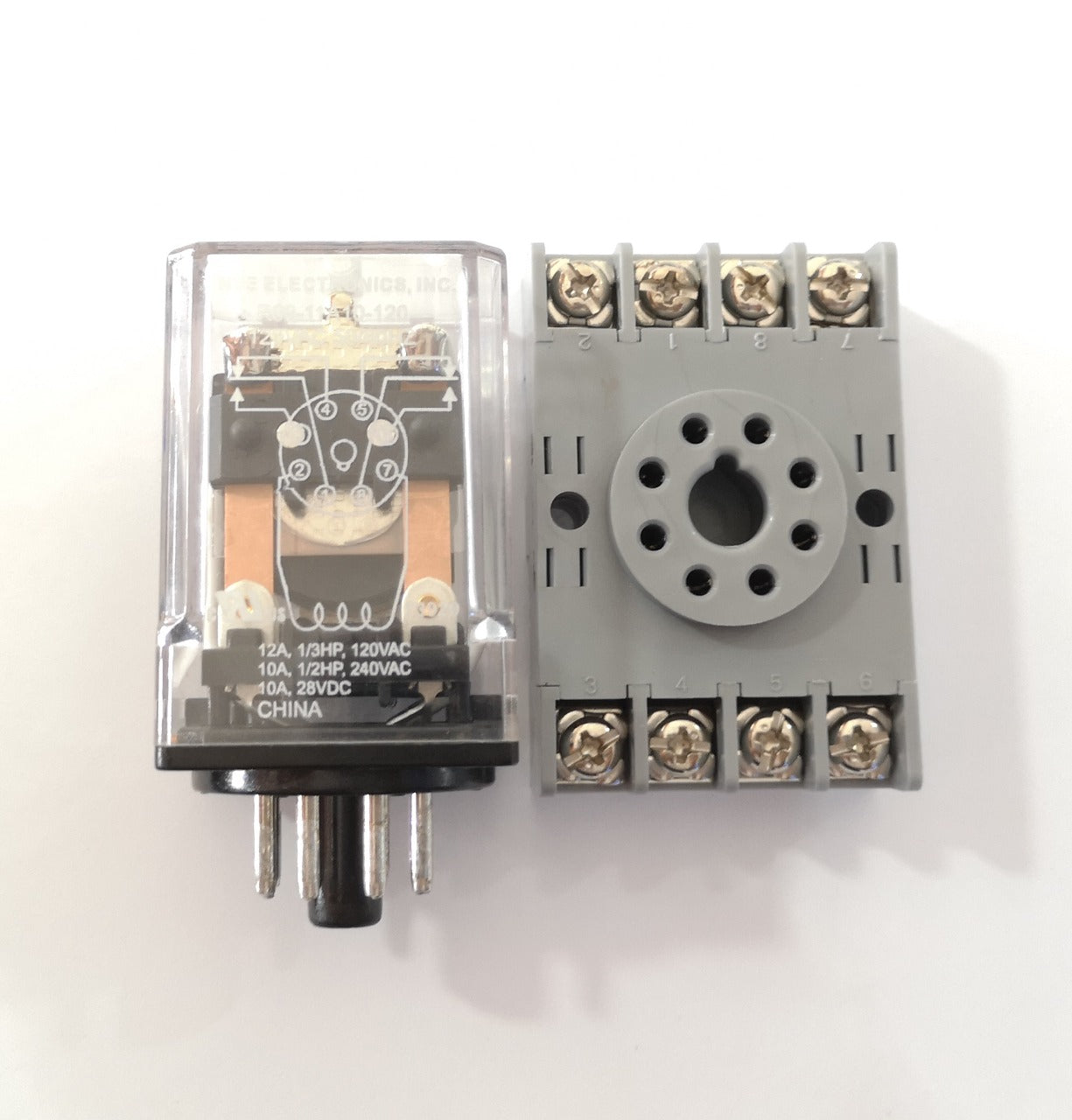

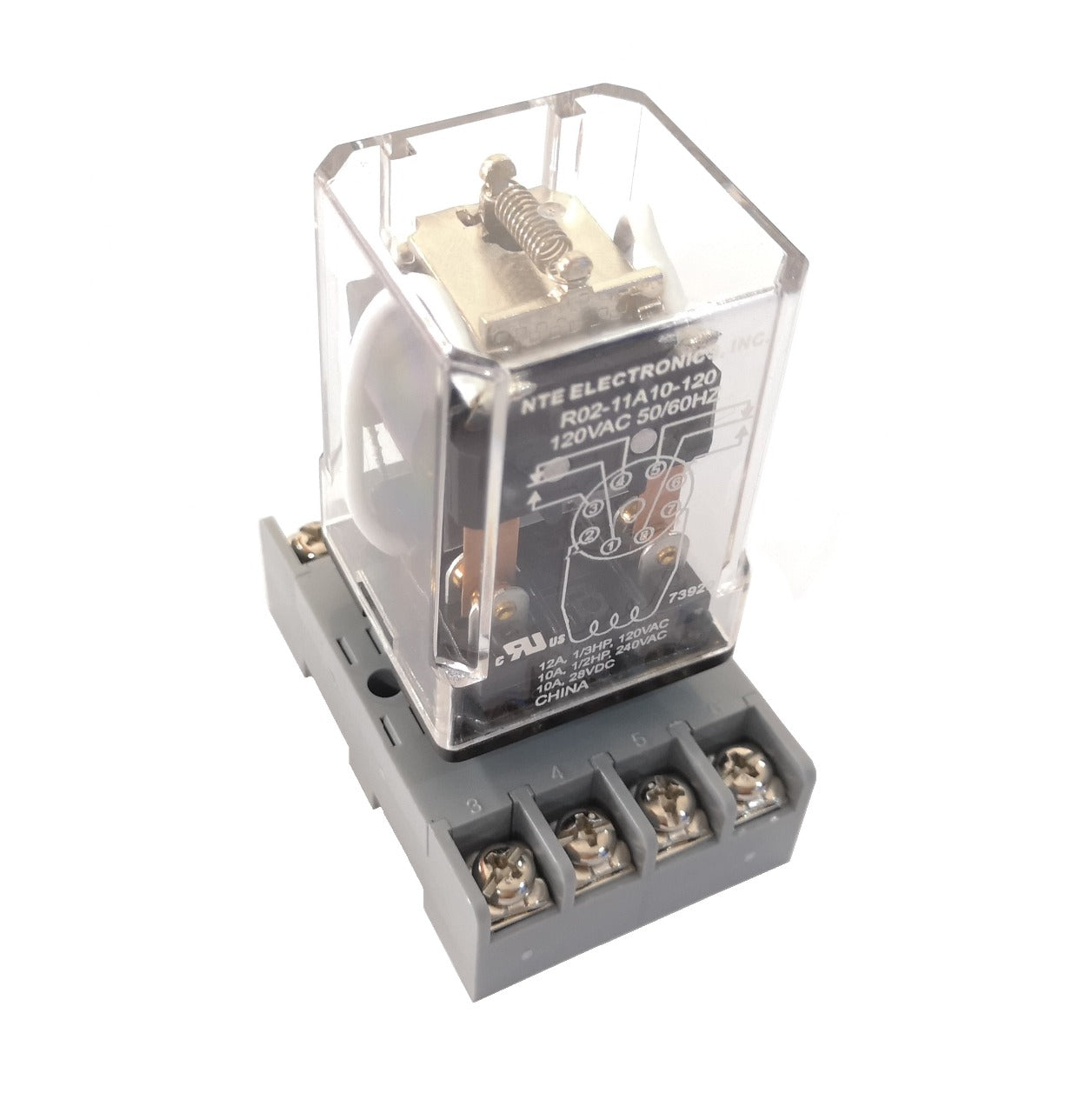

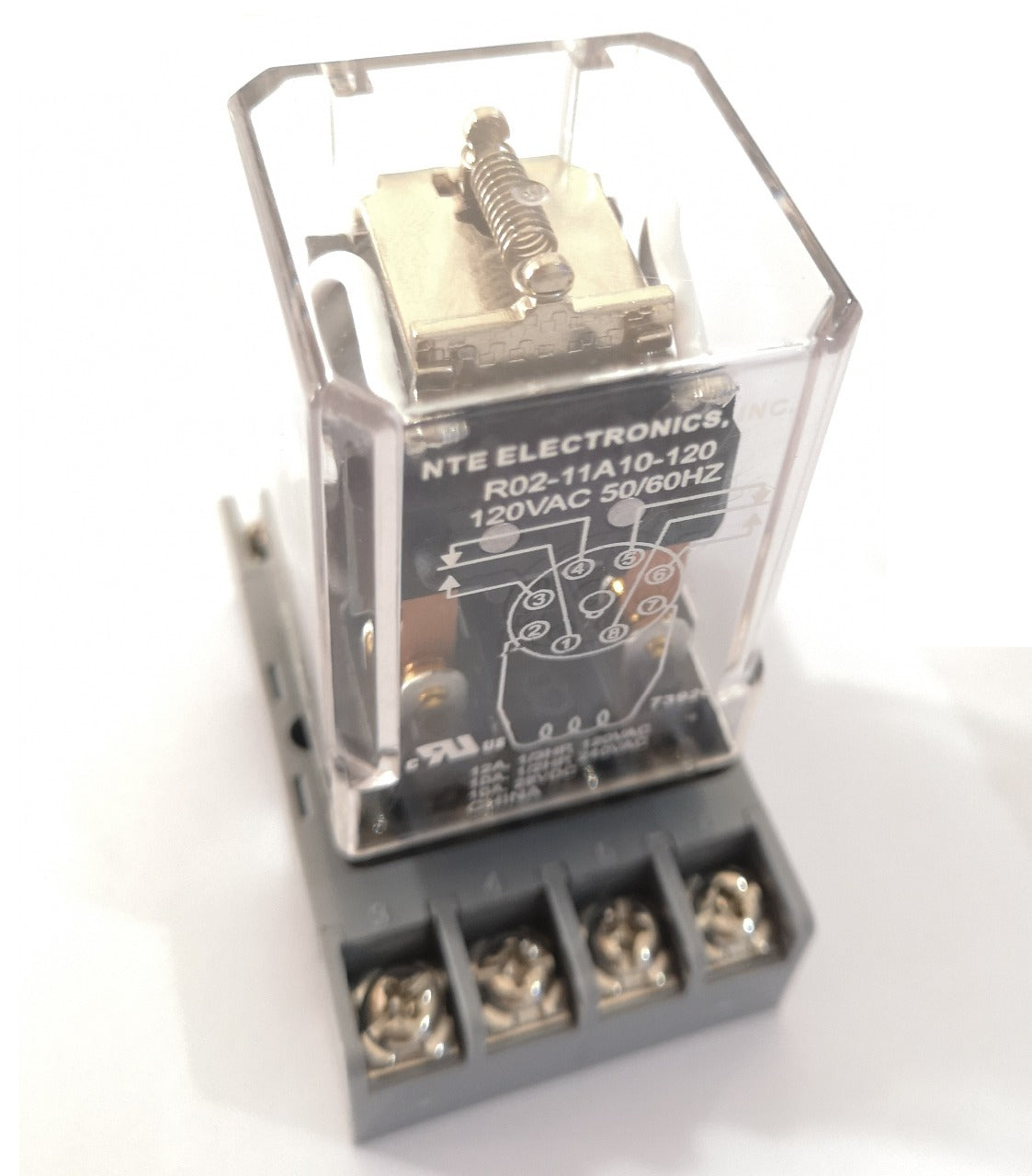

This is a relay with a 120VAC coil, with a base included for DIN rail mounting. AC power relays interrupt high-capacity DC/AC loads and high-voltage DC/AC circuits in a compact, quiet design. The sealed construction also requires no arc space, saves space, and helps ensure safe applications.
These are double-pole, double-throw (DPDT) protective relays. Use them to switch high-voltage and/or high-current devices.
Features:
- Base model: 5X852E (8 pins)
- Relay model: R02-11A10-120
- Coil voltage: AC 120V
- Contact structure: 8 pins, 2x N.O. Contact, 2x N.C. Contact
- Contact capacity: 12A @ 120VAC, 10A @ 250VAC, 10A @ 28VDC
- Input voltage: ≤80% (V)
- Release voltage: DC: ≥10% (V), AC: ≥30%
- Contact resistance: ≤50 (mΩ)
- Insulation resistance: ≤100 (mΩ)
- Action time: 20 ms or less
- Reset time: 20 ms or less
- Operating frequency: Mechanical 18,000 cycles / hour, Electrical 18,000 times / hour
