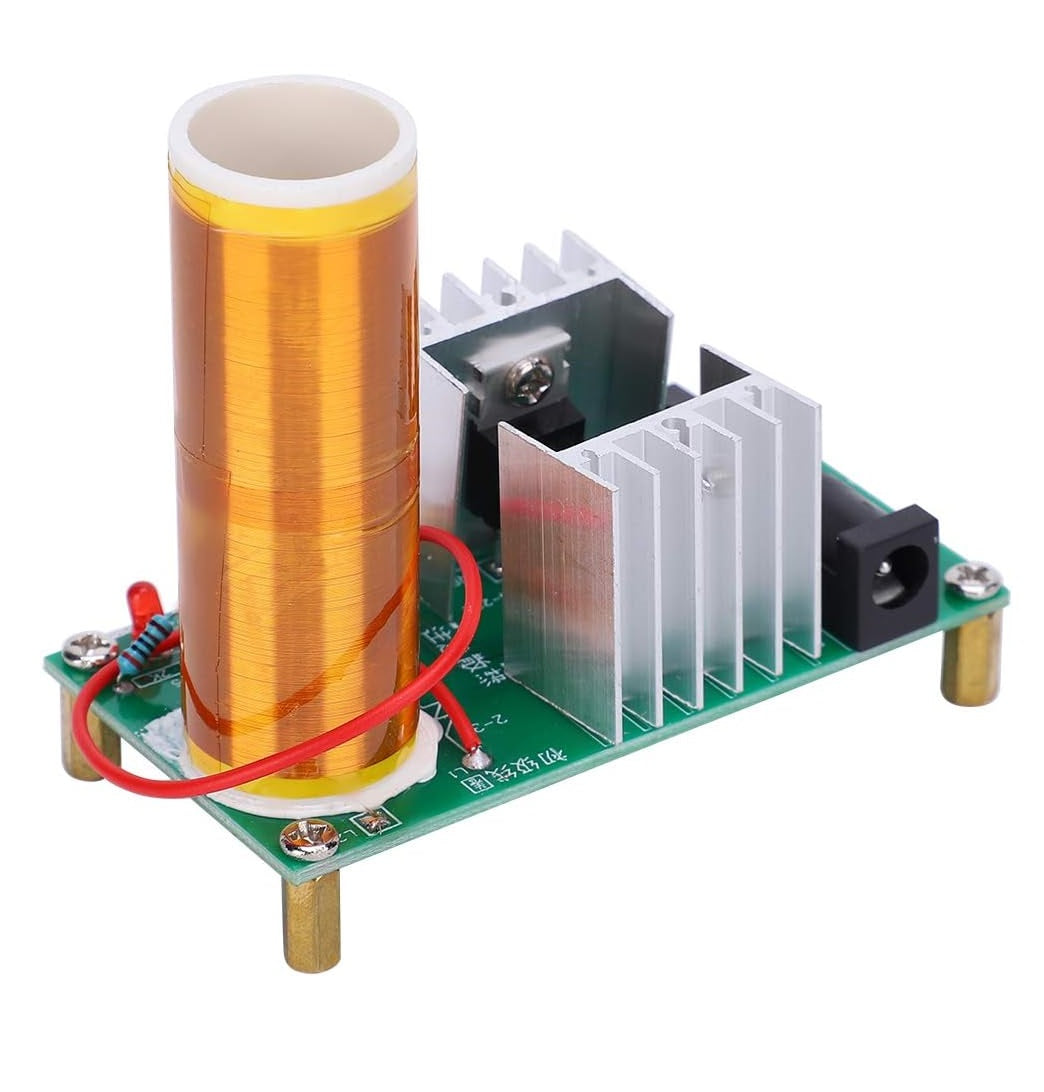

DIY Mini Tesla Coil Module 15W - (AD76349)

Description:

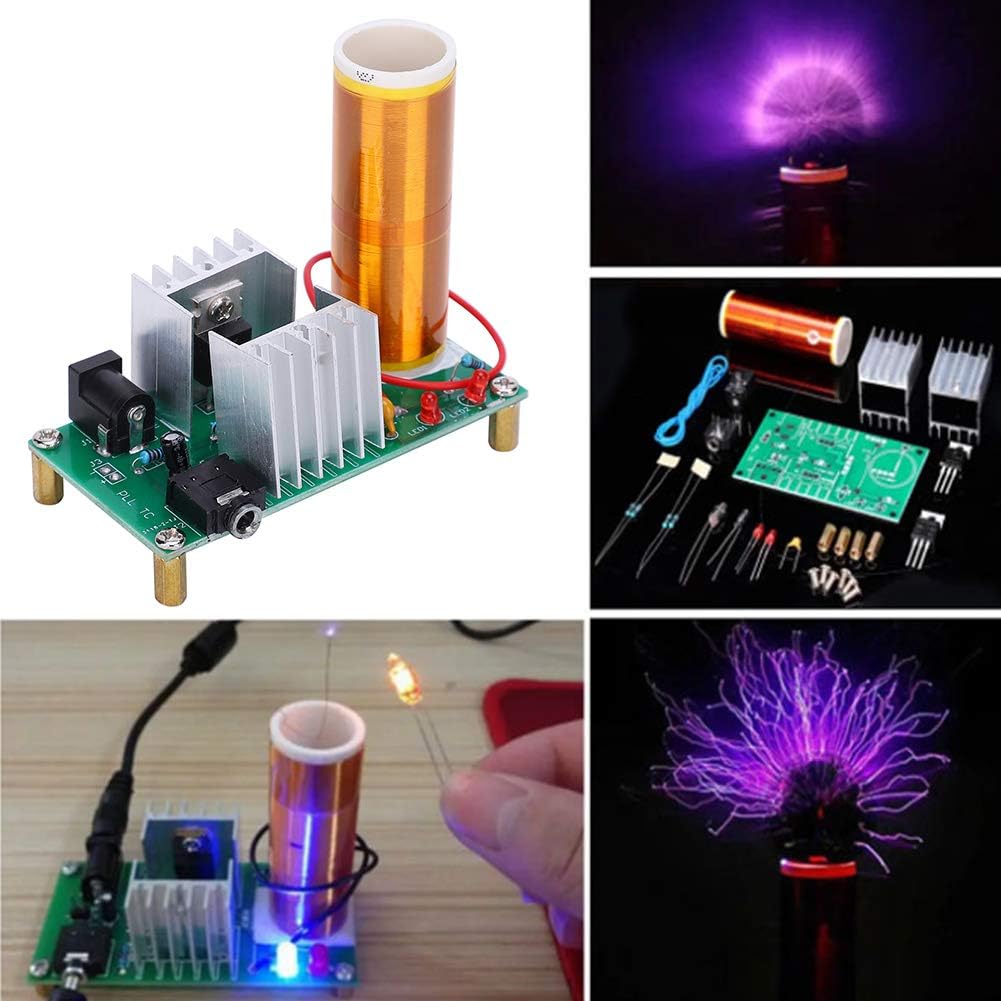

This kit is for assembling a 15W Tesla coil module, it is a DIY (Do It Yourself) kit. The Tesla coil can produce high-temperature and high-pressure plasma, which you can use this board to sing, light, transmit wirelessly, and light a fluorescent lamp. It has a wonderful arc. You can employ a very interesting small production of scientific experiments.

Features:

- PCB size: 4.0mm x 8.0mm

- Power: 15W

- Power input: DC 15-24V. Current is 2A, 5.5mm DC connector

- Audio input: 3.5mm jack, can be connected to mobile phone, MP3, computer audio

Introduction to the principle:

The Tesla coil is a transformer that operates on the principle of resonance. It was invented by Nikola Tesla, a Serbian-American scientist in 1891. It is mainly used to produce high-frequency, ultra-high voltage, but low current AC power. The Tesla coil consists of two groups of coupled resonant circuits (sometimes three groups). The Tesla coil is difficult to define and Nikola Tesla has tested a large number of various coil configurations. Tesla used these coils to conduct innovative experiments, such as electric lighting, fluorescence spectrum, X-rays, high-frequency alternating current phenomena, electrotherapy, and radio power transmission, transmission, and reception of radio signals.

Tesla function:

- Electric arc function: the rear part will produce an arc. The arc can also ignite.

- Light function: after the Tesla coil is energized, the fluorescent lamp can be lit separately.

- Music playback function: a new concept speaker for an electric arc to stimulate the air, to make the air vibrate produced by plasma. It can play mobile, computer music, but the sound is small.

Note:

This product is safe, the power is not high, you will not suffer electric shock damage, but it is not recommended to touch the top of the coil arc, there will be a burning sensation.

Do not touch the heatsink after a long power supply, the temperature is very high, especially using 24v high voltage heat, if necessary, add your own cooling fan, or working hours lead to too much heat, turn off for a period of time for electrical use. It is recommended that the Tesla coil operates when the body or other objects approach the coil.

Do not place cell phones, MP3s, and other electronic equipment near the coil, or the coil will produce high-frequency magnetic field interference, which will cause cell phones, MP3s, and other equipment to fail or be damaged.
