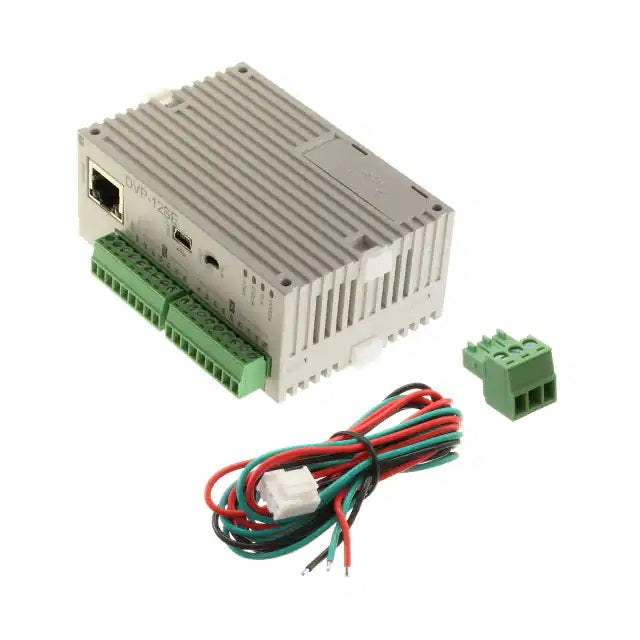

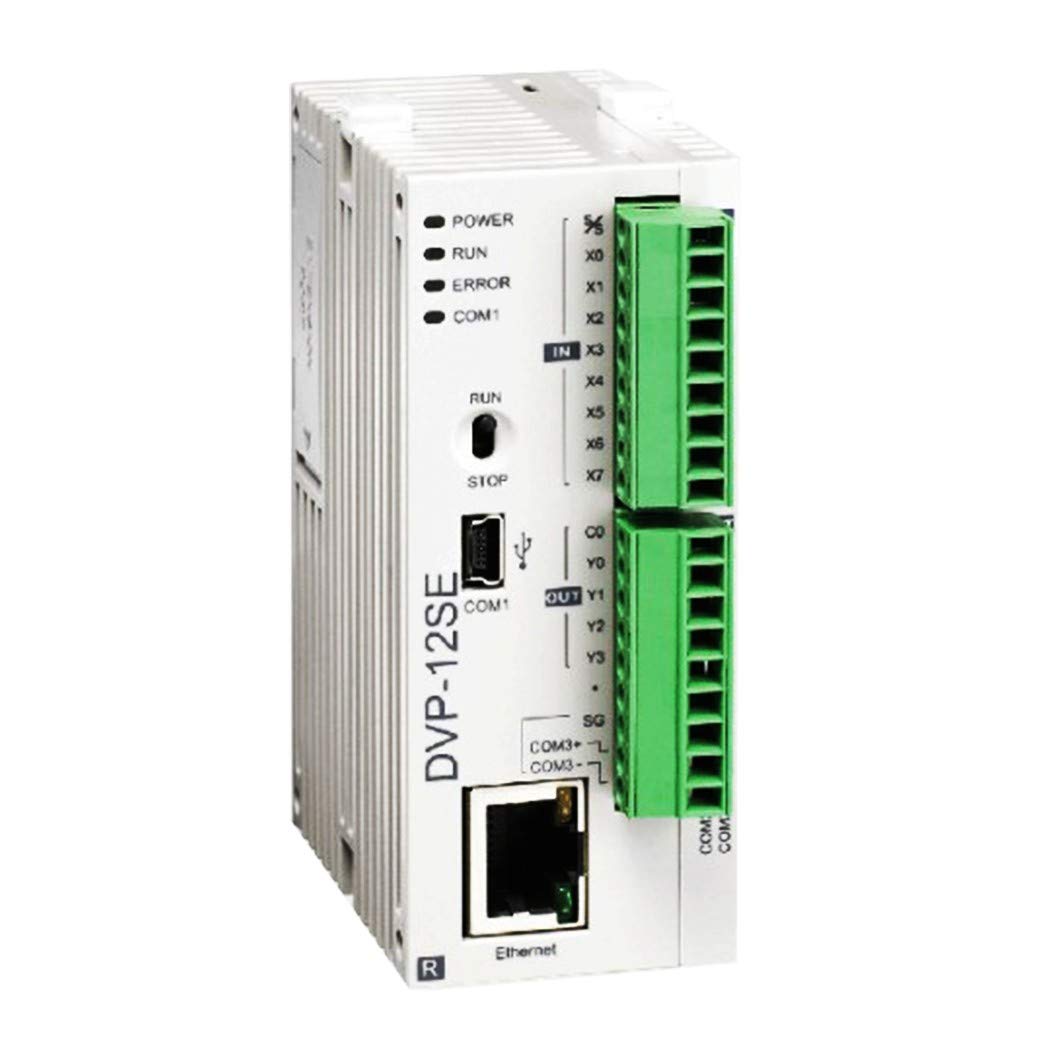

DVP12SE11T Delta PLC 8-Input 4-Output Transistor 24VDC - (AD76303)

Description:

The programmable logic controller (PLC) is a control system that utilizes electronic operations. Its simple storage procedures, practical extension principles, sequential/position control functions, timed counting, and input/output control are widely applied in the field of industrial automation control.

This is a Delta PLC (Programmable Logic Controller) from the Delta DVP Slim CPU industrial series; with an Ethernet port, two RS-485 ports, eight digital inputs, and four transistor digital outputs.

Characteristics:

- The industry's most complete network-type slim PLC

- Provides 8 digital inputs and 4 digital outputs

- Built-in Mini USB, Ethernet and 2 RS-485 ports

- Applications: Remote device monitoring, production line monitoring, building automation, printing machines, container filling (recipe application)

- Program capacity: 16K

- Data log: 12K

- Faster execution speed compared to competitors: LD: 0.64μs, MOV: 2μs

- Integrated Ethernet compatible with MODBUS TCP and Ethernet/IP

- The IP filter feature is a firewall that provides the first line of defense and provides protection against malware and network threats.

- Supports both left and right side modules of the DVP-S series

- No battery required. Maintenance-free. (The real-time clock operates for 15 days after power off.)

Documents:

dvpse_series.pdf (910983)

Links:

www.deltaww.com/en-US/products/PLC-Programmable-Logic-Controllers/243

www.deltaww.com/en-us/products/PLC-Programmable-Logic-Controllers/3598

downloadcenter.deltaww.com/en-US/DownloadCenter?v=1&q=COMMGR%20V1.14&sort_expr=cdate&sort_dir=DESC

downloadcenter.deltaww.com/en-US/DownloadCenter?v=1&q=ispsoft&sort_expr=cdate&sort_dir=DESC
