ESP32-S WiFi + Bluetooth Module - (AD75611)

Description:

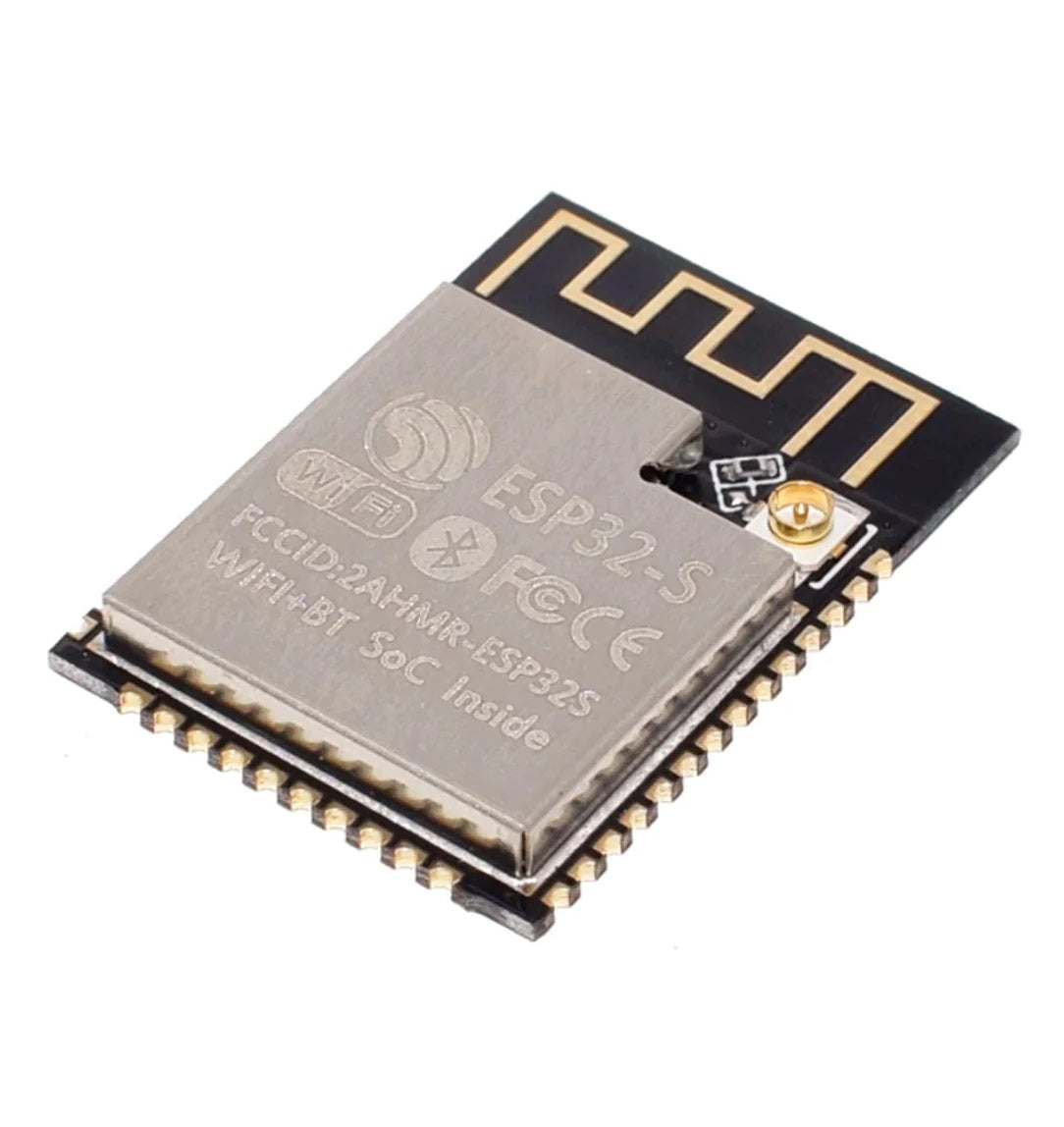

The ESP32-S is an ESP32-based wireless module, supporting WiFi and Bluetooth 4.2, with built-in 32 Mbit Flash, coming in an SMD38 package. There is also an integrated PCB antenna and a metal shield. In short, it is a small form factor and quite cost-effective wireless module.

Features:

• Wi-Fi 802.11b/g/n + Bluetooth SOC
• 32-bit dual-core CPU, 240MHz frequency, processing power up to 600 DMIPS
• Two integrated 12-bit SAR analog/digital converters (ADCs), up to 18 channels
• Supports UART/SPI/I₂C/SDIO/GPIO/ADC/PWM
• SMD38 package
• Supports OpenOCD debugging interface
• Supports multiple sleep modes, with deep sleep current as low as 6.5µA
• UART baud rate up to 4 Mbps
• Integrated Lwip and FreeRTOS
• Supports STA/AP/STA+AP operating mode
• Supports Smart Config (APP) / AirKiss (WeChat), one-key networking
• Supports local UART firmware upgrade and/or remote firmware upgrade (FOTA)
• AT commands for quick start
• Supports secondary development, integrated Windows/Linux environment
