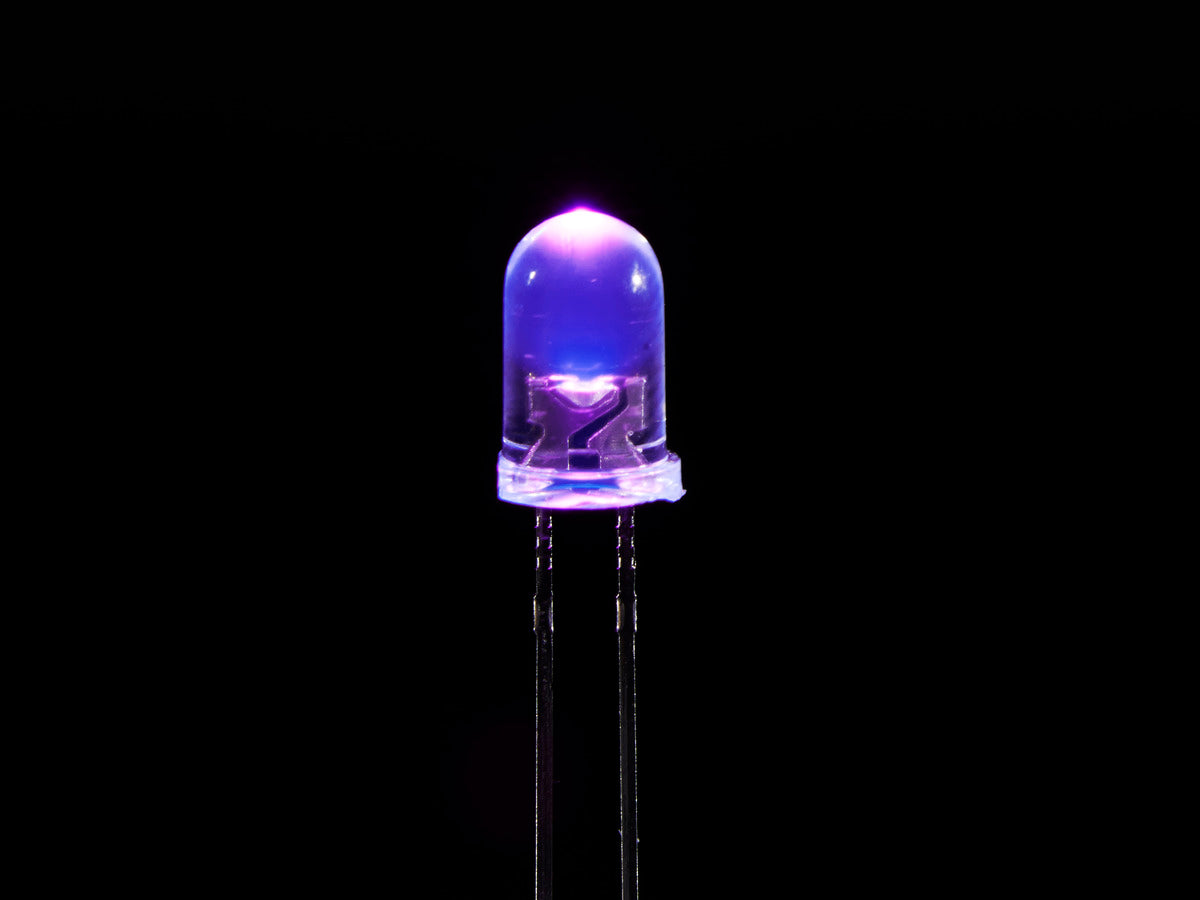

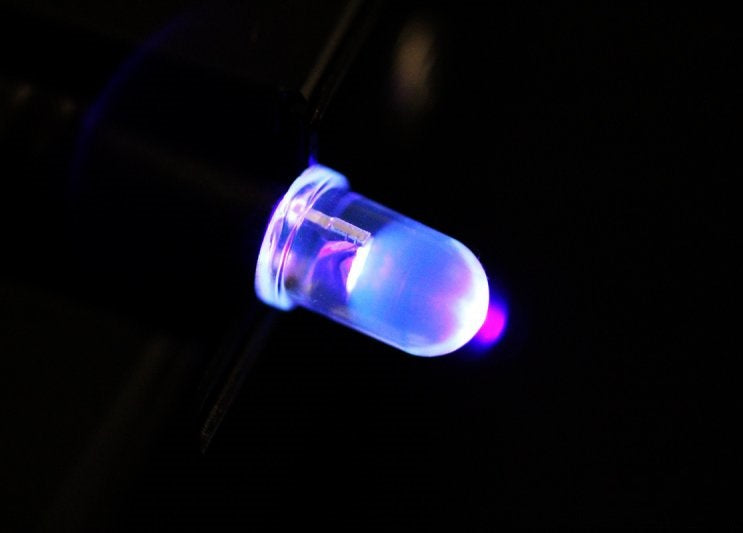

LED UV 400nm Purple 5mm Clear Lens - (AD750)

Description:

Need really bright LEDs? We love these 5mm clear UV/purple LEDs. They emit ultraviolet (UVA) light, great for projects with fluorescent materials, known as UV/black light reactive or glow-in-the-dark. They are bright (350 mcd) and have about a 20-degree LED beam. They easily plug into a breadboard and come in packs of ten, so you can easily add that UV touch to your project.

Technical Details:

• Forward Voltage: 3.4V typical at 20mA
• Max Forward Current: 25mA (20mA recommended)
• Max Reverse Voltage: 5V
• Max Reverse Current: 10µA
• Brightness: 350 mcd typical
• Wavelength: 400 nm
• Operating Temperature Range: -40°C to 85°C
• LED Dimensions:
  • Base Diameter: 5mm
  • LED Height: 9mm
  • Pin Length: 29mm

Datasheet
