Orange Pi Zero 512MB - (AD74333)

Description:

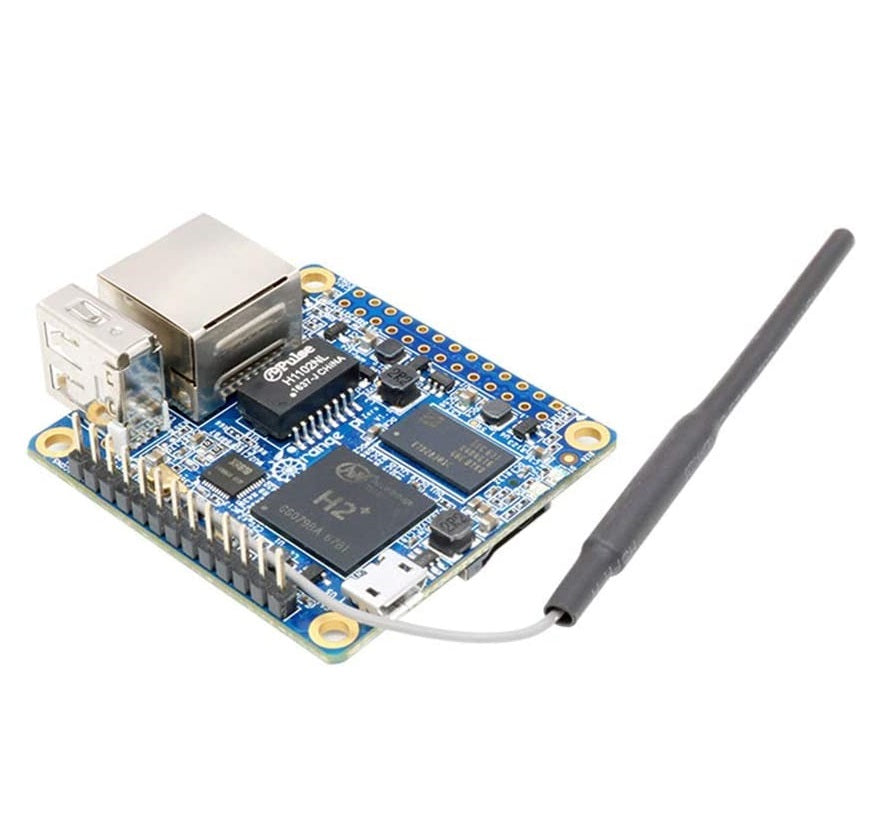

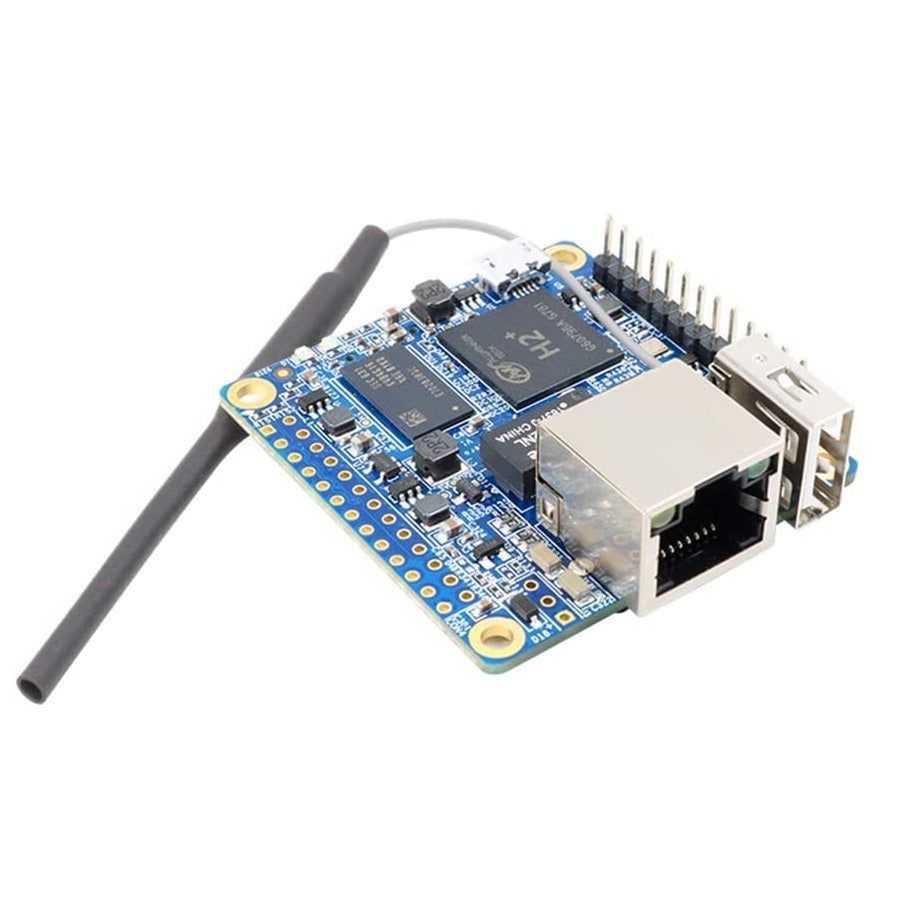

The Orange Pi Zero 512MB RAM is a mini-computer featuring an Allwinner H3 SoC and 512MB DDR3 SDRAM (the 256MB version is standard). It integrates a TF card slot, 100 Ethernet network, USB 2.0, 26-pin headers, etc. It is powered via USB OTG, and can load an operating system or applications, running Android, Ubuntu, or Debian.

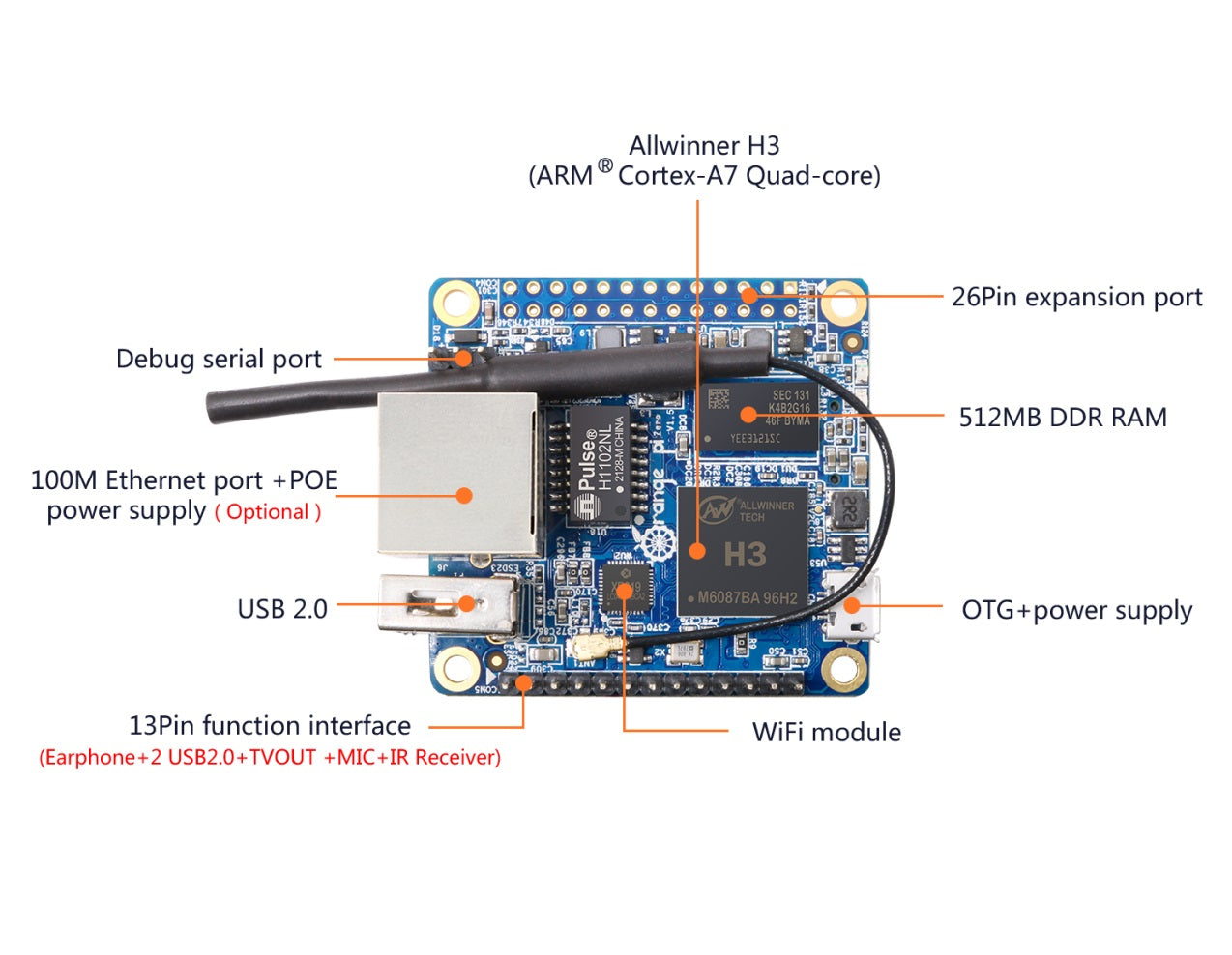

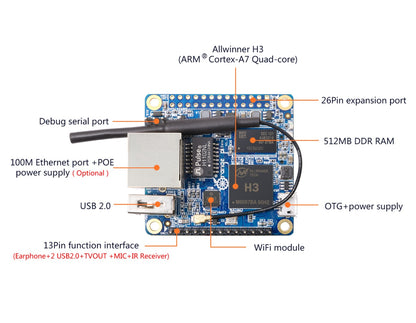

It includes ports for Ethernet and Wi-Fi, in addition to the usual USB 2.0 port for power, it has a Micro USB Type connector and video output via an AV pin.

The board also has 26 pins with SPI, UART communication interfaces, and multiple GPIO ports. It also incorporates other input and output peripherals such as a pin for a mini MIC microphone, status and POWER LEDs, a pin for an audio jack connector, and a pin for an IR receiver.

Specifications and Features:

- Model: Orange Pi Zero 512MB

- Version: V1.2

- Processor (CPU): H3 Quad-core Cortex-A7 H.265/HEVC 1080P

- Processor brand: Allwinner H2

- CPU Frequency: 600MHz

- SDRAM: 512MB DDR3 SDRAM (Shared with GPU)

- USB Ports: 1x USB 2.0

- Power Supply: Micro-B type interface 5V @ 3A input

- LEDs: Power LED and Status LED

- IR Receiver: Compatible with infrared remote control

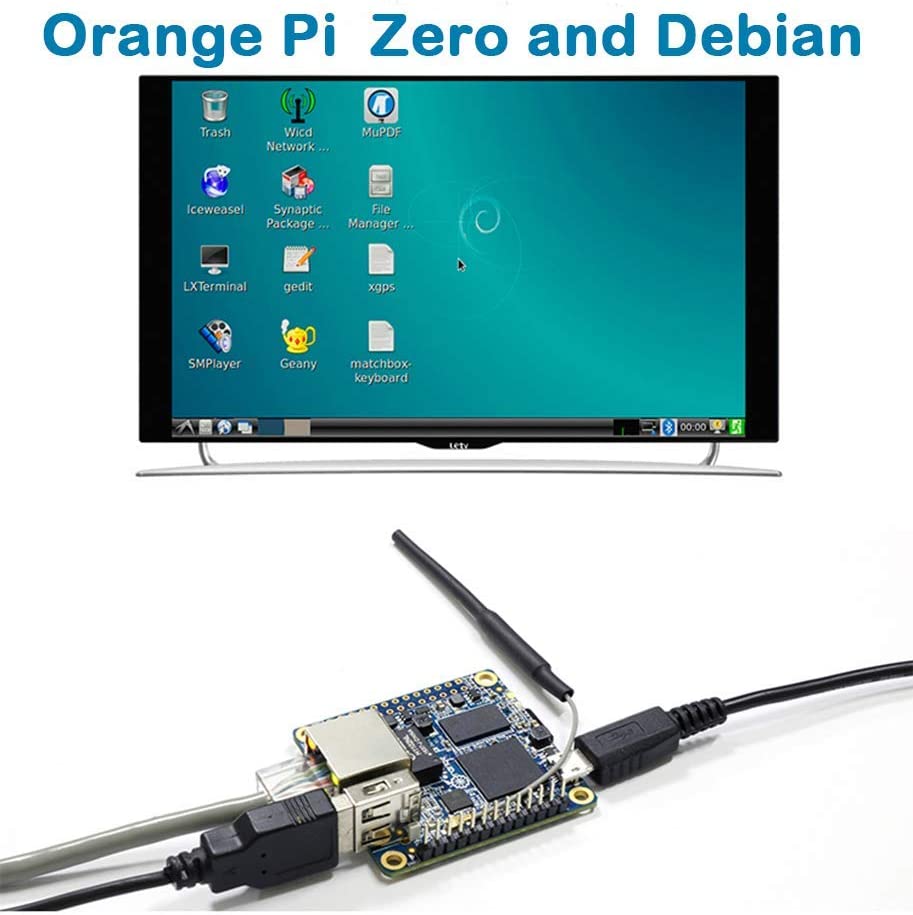

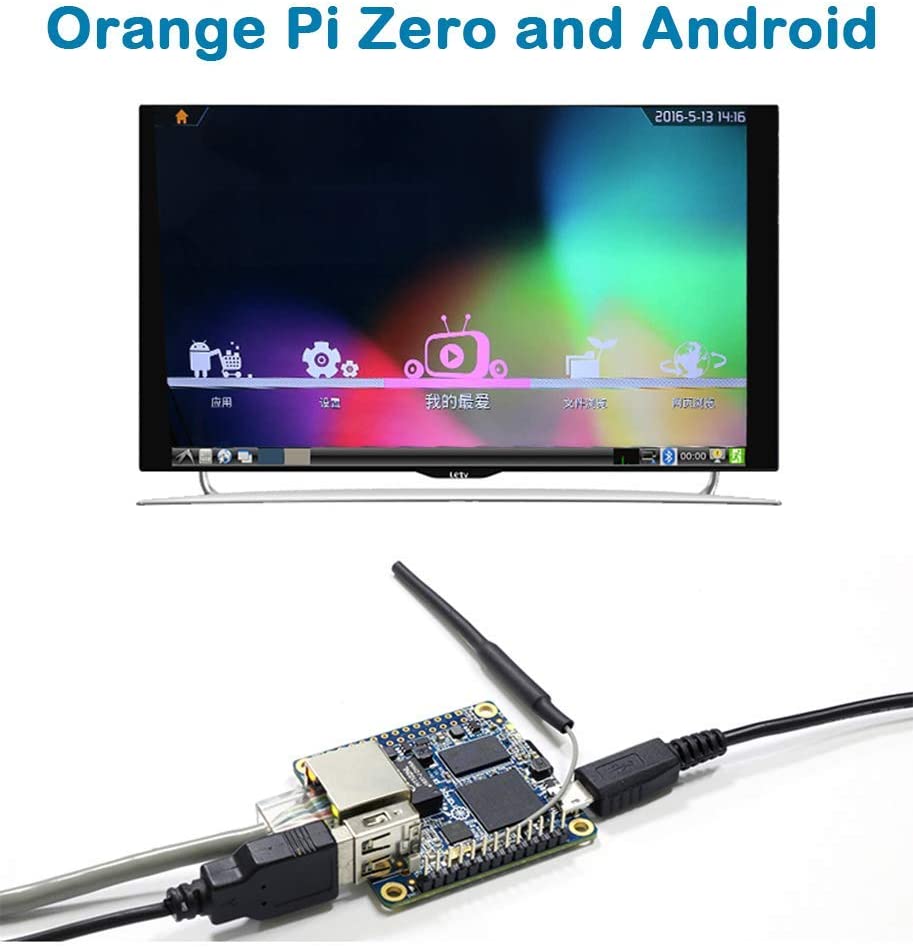

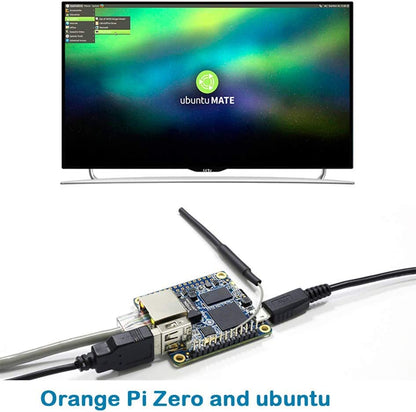

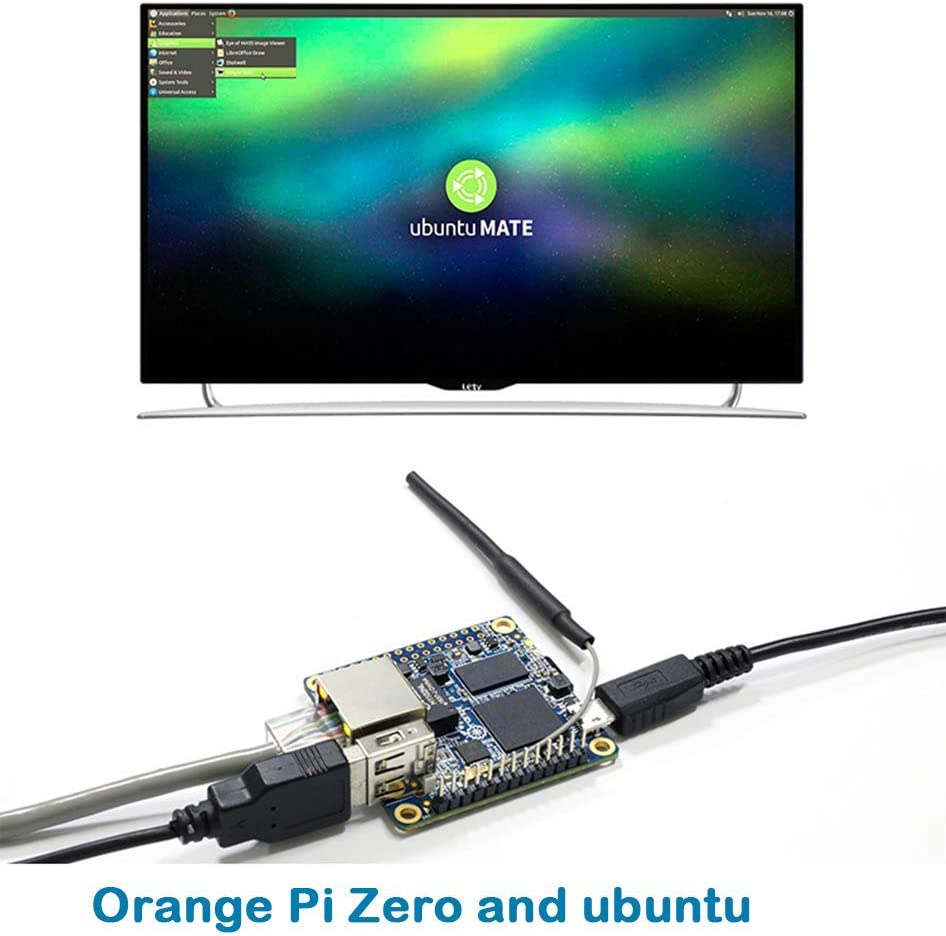

- Supported operating systems: Android, Ubuntu, or Debian

Low-level peripherals:

- 26-pin connector with 1x SPI, 1x UART, and multiple GPIO ports.
