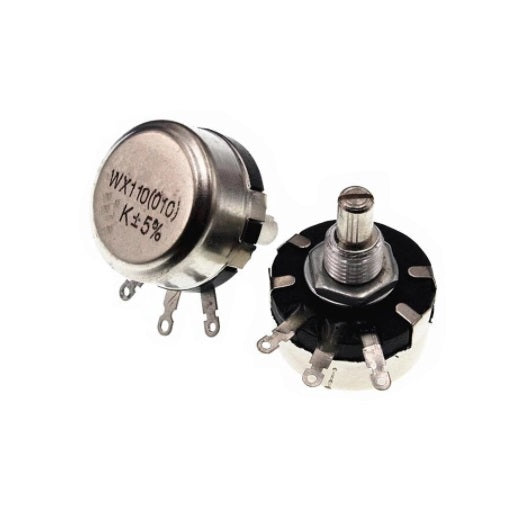

WX110-010 - 10KΩ 1W 6mm Round Shaft Linear Taper Rotary Potentiometer - (AD73543)

Description:

An adjustable potentiometer can open up many interesting user interfaces. Turn the knob and the resistance changes. Connect VCC to one external pin, GND to the other, and the center pin will have a voltage that varies from 0 to VCC depending on the rotation of the potentiometer. Hook the center pin to an ADC on a microcontroller and get variable input from the user!

Details:

- Model: WX110-010

- Impedance: 10Kohm

- Tolerance: ± 5%

- Technology: Carbon composition

- Type: B (Linear) X

- Shaft diameter: 6 mm / 0.236 ''

- Wire diameter: 10mm (hole in the panel)
