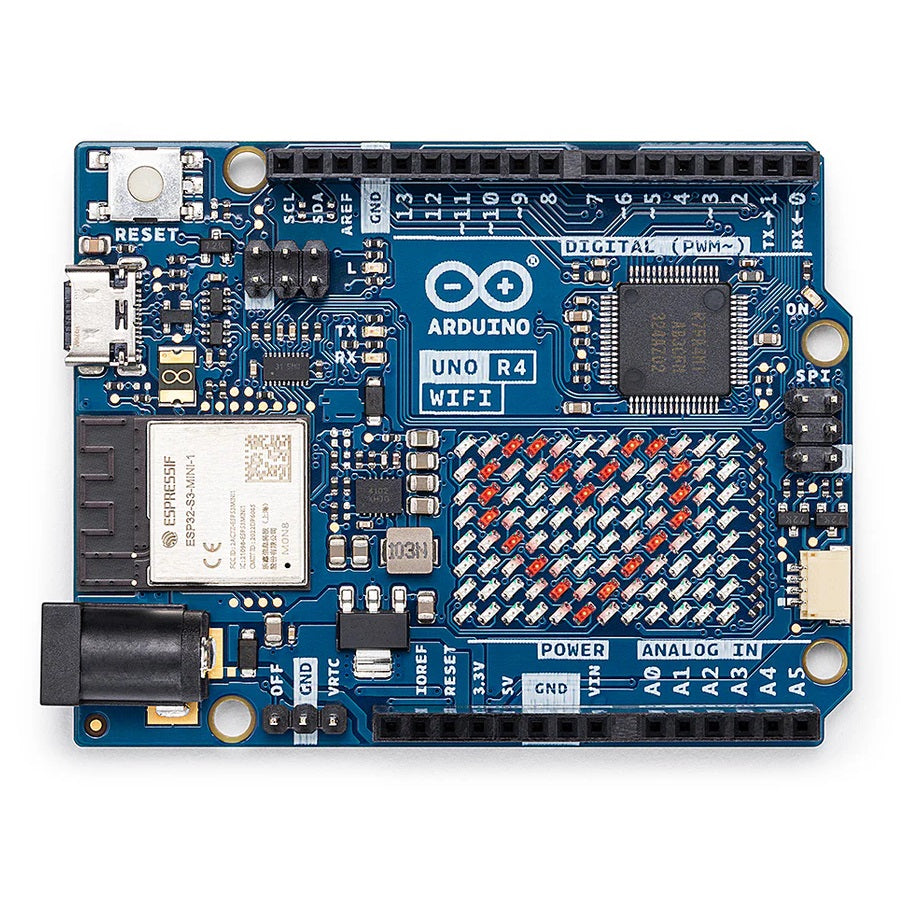

Arduino UNO R4 WIFI Type-C (Original) - (AD72997)

Description:

The Arduino UNO R4 WiFi combines the processing power and exciting new peripherals of Renesas' RA4M1 microcontroller with Espressif's ESP32-S3 wireless connectivity power. In addition to this, the UNO R4 WiFi offers an integrated 12x8 LED matrix, Qwiic connector, VRTC and OFF pin, covering all potential needs makers will have for their next project.

With the UNO R4 WiFi, you can easily upgrade your project and add wireless connectivity to expand the reach of your current setup. If this is your first project, this board has everything you need to spark your creativity.

Let's explore what the UNO R4 WiFi has to offer:

• Hardware compatibility with UNO form factor: The UNO R4 WiFi maintains the same form factor, pinout, and 5V operating voltage as its predecessor, the UNO R3, ensuring a seamless transition for existing shields and projects.
• Expanded memory and faster clock: The UNO R4 WiFi features increased memory and a faster clock speed, allowing for more precise calculations and effortless handling of complex projects.
• Additional onboard peripherals: The UNO R4 WiFi features a range of integrated peripherals, including a 12-bit DAC, CAN BUS, and OP AMP, providing expanded capabilities and design flexibility.
• Extended 16V tolerance: The UNO R4 WiFi supports a wider input voltage range, enabling seamless integration with motors, LED strips, and other actuators using a single power source.
• HID support: With built-in HID support, the UNO R4 WiFi can simulate a mouse or keyboard when connected to a computer via USB, making it easy to send keystrokes and mouse movements.
• Wi-Fi® and Bluetooth®: The UNO R4 WiFi hosts an ESP32-S3 module, allowing makers to add wireless connectivity to their projects. Combined with Arduino IoT Cloud, makers can monitor and control their projects remotely. Qwiic connector: The UNO R4 WiFi features a Qwiic I2C connector, enabling easy connection to nodes from the extensive Qwiic ecosystem. Adapter cables also allow compatibility with sensors and actuators based on other connectors.
• Battery-powered RTC support: The UNO R4 WiFi includes additional pins, including an "OFF" pin to turn off the board and a "VRTC" pin to keep the internal real-time clock powered and running.
• LED Matrix: The UNO R4 WiFi incorporates a 12x8 bright red LED matrix, ideal for creative projects with animations or plotting sensor data, eliminating the need for additional hardware.
• Runtime error diagnostics: The UNO R4 WiFi includes an error detection mechanism that detects runtime failures and provides detailed explanations and suggestions about the line of code causing the failure.
• With all these features included in the familiar UNO form factor, now is the perfect time to upgrade your project or embark on your creative journey. The UNO R4 WiFi offers unparalleled versatility and possibilities for makers of all levels.

Note: Programming cable is not included.

Reference link 1

Reference link 2
