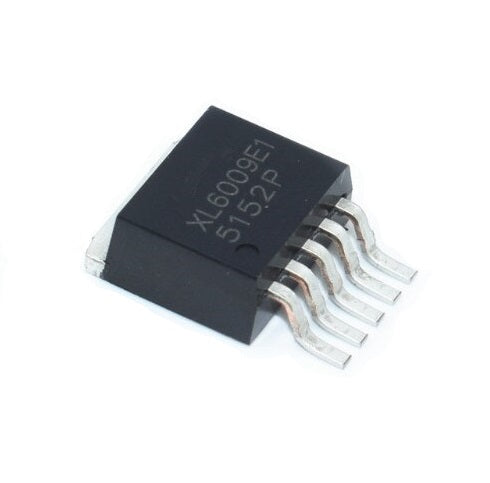

XL6009 (TO-263) Buck-Boost DC-DC Adjustable Step Up-Down Converter - (AD71502)

Description:

The XL6009 regulator has a wide input range, current mode, and is a DC/DC converter capable of generating positive or negative output voltages. It can be configured as a boost, flyback, SEPIC, or inverting converter. The XL6009 has an integrated N-channel power MOSFET and a fixed-frequency oscillator; the current-mode architecture results in stable operation over a wide range of supply and output voltages. The XL6009 regulator is specially designed for portable electronic equipment applications.

Datasheet
