SparkFun RedBoard Artemis Nano [DEV-15443] - (AD70684)

Name: SparkFun RedBoard Artemis Nano [DEV-15443] - (AD70684)
Brand: Sparkfun
SKU: AD70684
Price: 30.95 USD
Availability: InStock

$30.95 USD

Sale Sold out

Description:

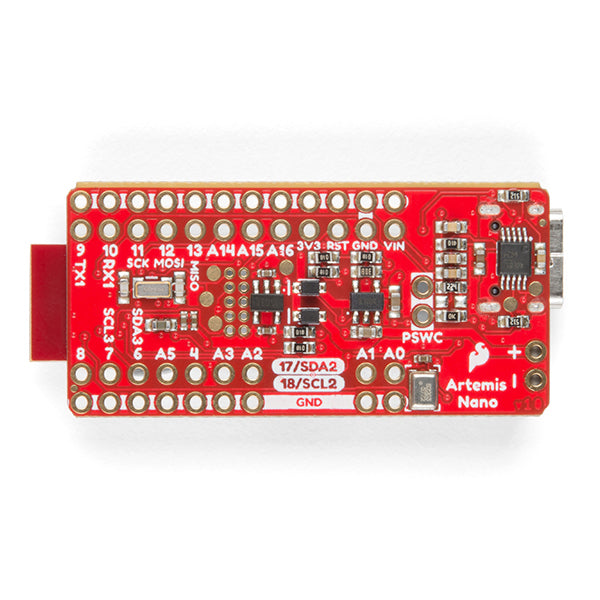

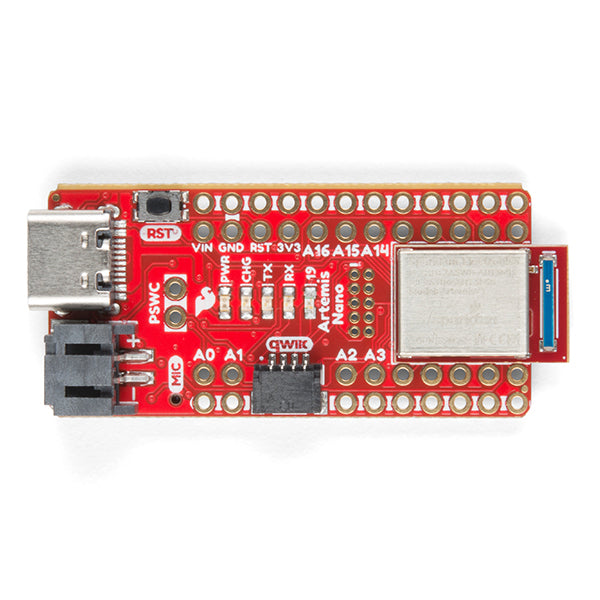

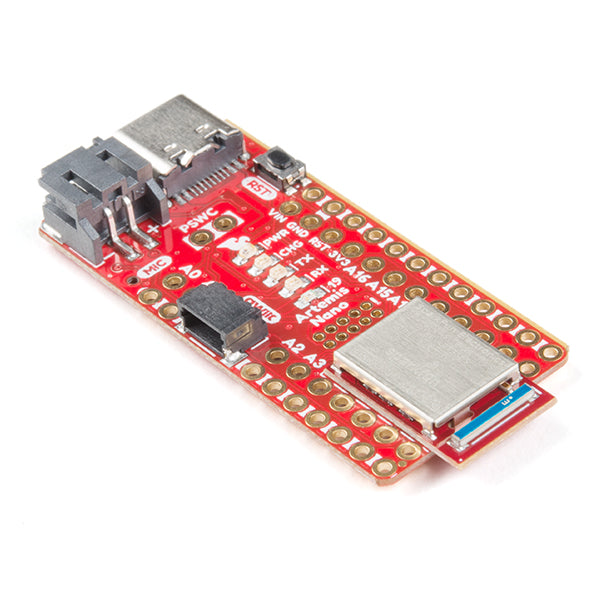

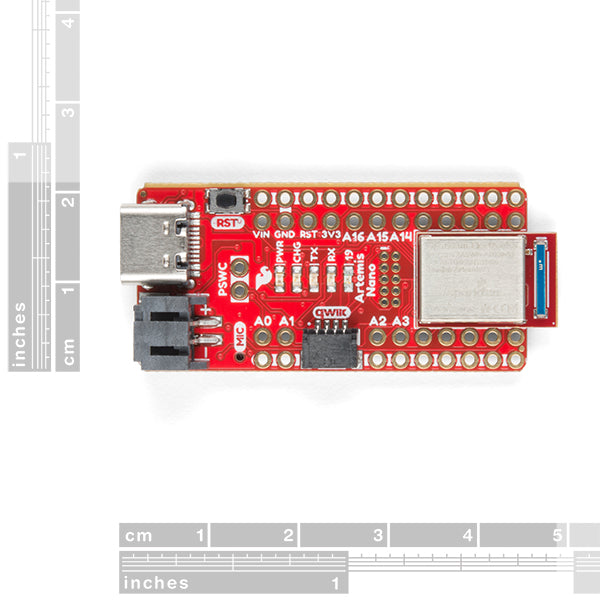

We like to joke that the Artemis Nano is a party in the front and business in the back. And that's by design! All important LEDs, connectors, labels, and buttons are presented on the front for the best user experience with all the supporting circuitry on the back of the board. The RedBoard Artemis Nano is a minimal yet extremely practical implementation of the Artemis module. A lightweight 0.8mm thick PCB, with integrated LiPo battery charging and a Qwiic connector, this board is easy to deploy in very small projects. A double row of ground connections makes it easy to add many buttons, LEDs, and anything that requires its own GND connection. At the same time, the board is breadboard compatible if you solder the inner rows of pins.

A modern USB-C connector makes programming easy. The Nano is fully compatible with SparkFun's Arduino core and can be easily programmed under the Arduino IDE. We have also exposed the JTAG connector for more advanced users who prefer to use the power and speed of professional tools. If you're looking for a simple and cost-effective board to replace your old Arduino Uno or Arduino Nano, look no further. We even added a digital MEMS microphone for those who want to experiment with always-on voice commands with TensorFlow and machine learning.

With 1MB of flash memory and 384k of RAM, you'll have plenty of room for your sketches. The Artemis module runs at 48MHz with a 96MHz turbo mode available and with Bluetooth to boot!

The SparkFun Artemis Nano is an incredibly flexible device for a small footprint, but if you're looking for all the bells and whistles, be sure to check out our RedBoard and ATP footprints for even more I/O and capabilities.
