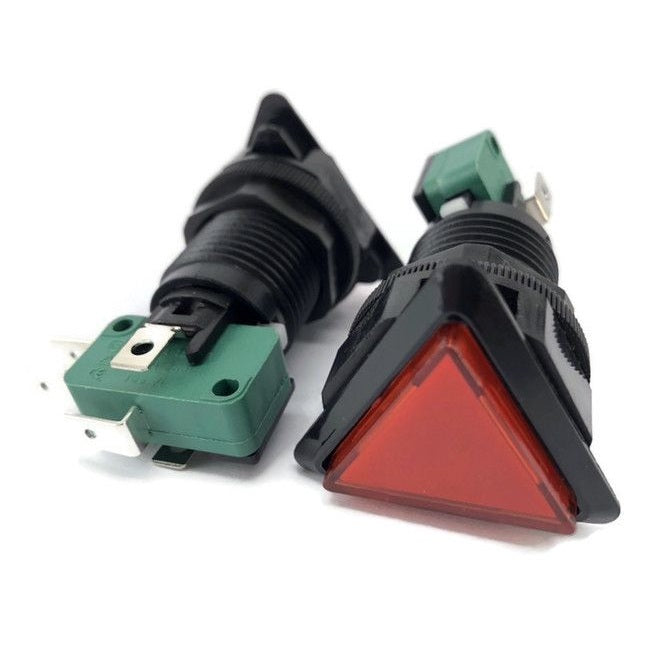

Red Triangle Illuminated Push Button Switch SPDT Momentary 12V - (AD70249)

Description:

A button is a button, and a switch is a switch, but these LED illuminated arcade buttons are in a class of their own. It's the same size as a "standard" 32mm arcade, but it has a built-in 12VDC LED that can be controlled separately from the switch action, either for indication or just for looking good.

The body is made of high-quality plastic. It comes with a colored LED, which provides ample illumination. The button comes with a normally N.C. and N.O. microswitch. Once you have placed the desired LED, simply press the microswitch. The microswitch is quite fast, so you will hear and feel it activate.

Features:

- Manufacturer: Tayda Electronics

- Manufacturer Part Number: PBS-33

- RoHS: Yes

- Button color: red.

- Circuit: SPDT

- Mounting type: Panel mount

- Lamp voltage: 12V 3W

- Current rating: 15A @ 125VAC

- Switch characteristic: OFF-(ON) MOMENTARY

- Operating temperature: -25C to +85C
