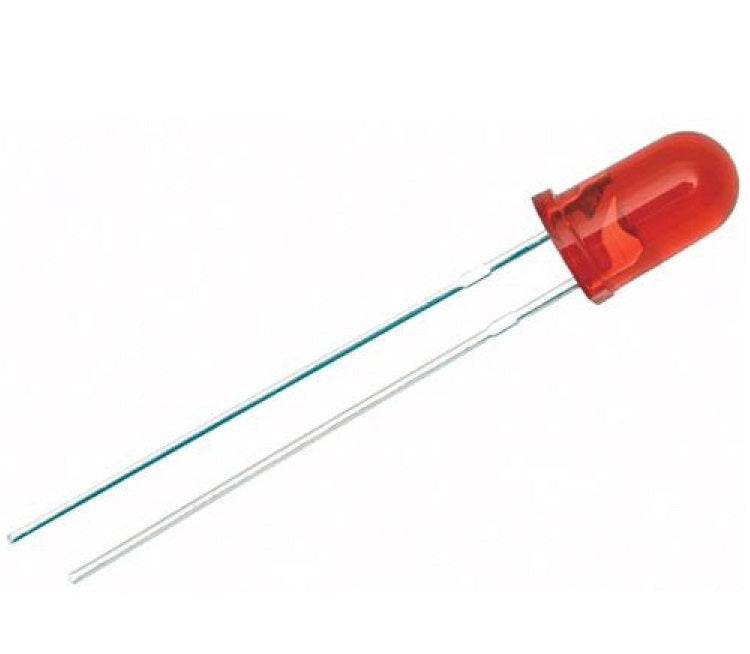

Red LED 5mm Diffused - (AD688)

Description:

LEDs: those blinky things. A must have for power indication, pin status, optoelectronic sensors, and fun blinky displays. This is a very standard red LED. The lens is 5mm in diameter and diffused.

Features:

- 1.8 - 2.2VDC forward drop

- Max current: 20 mA

- Suggested using current: 16-18mA

- Luminous Intensity: 150-200 mcd

Documents:

• Datasheet
• LED Tutorial
