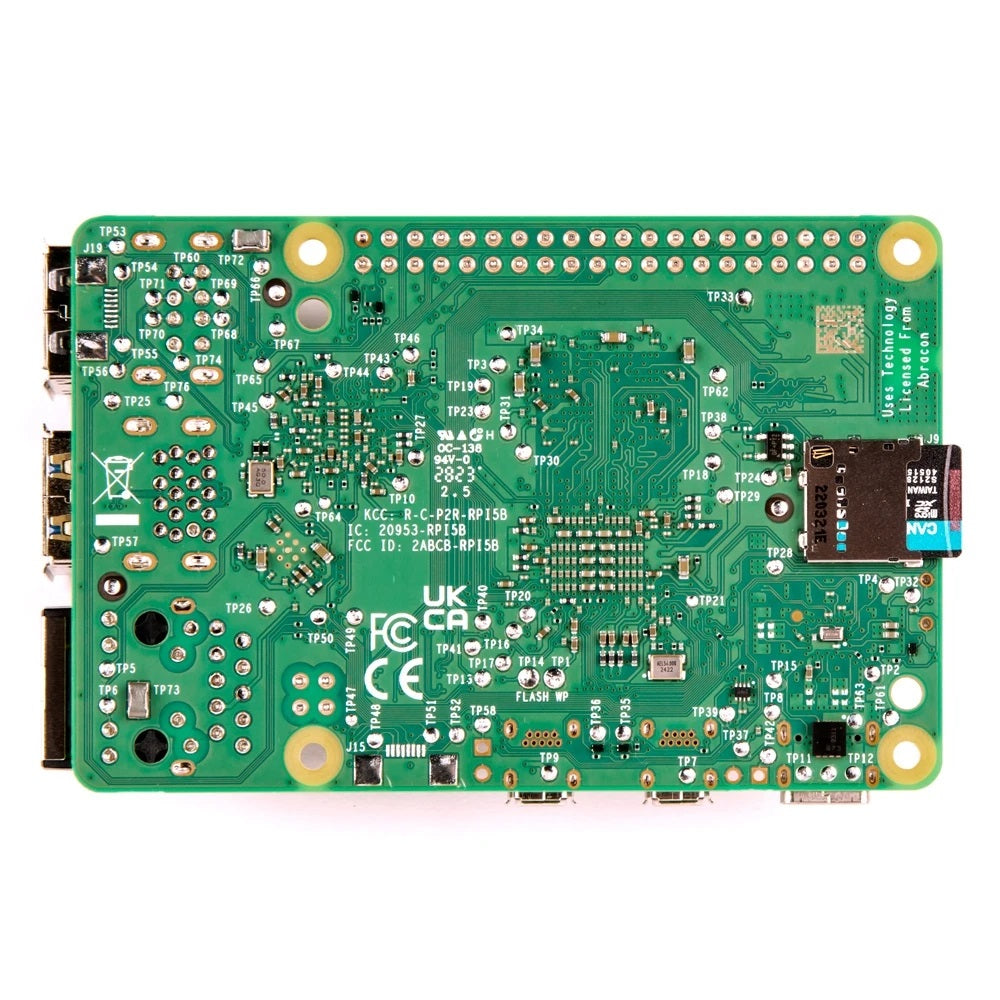

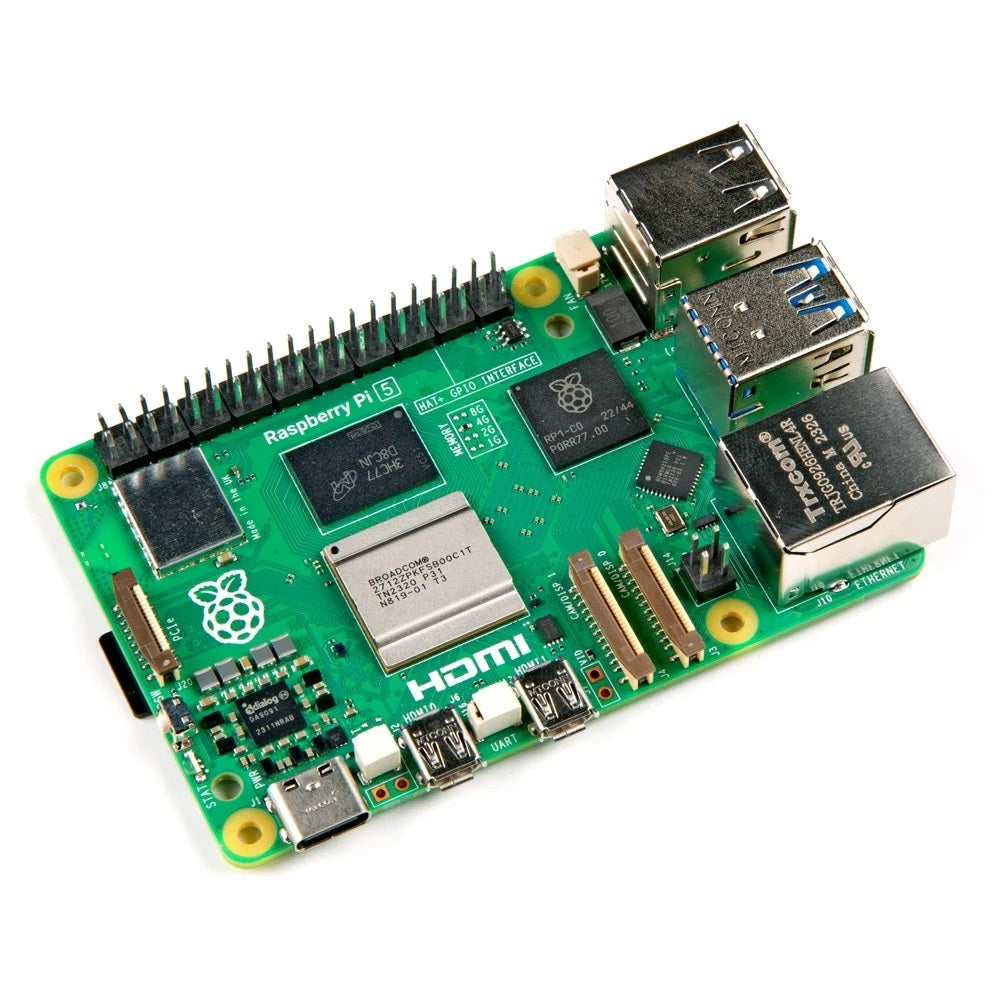

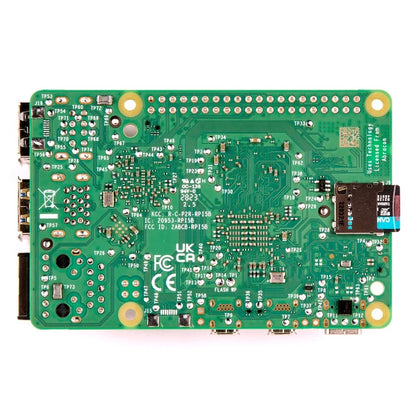

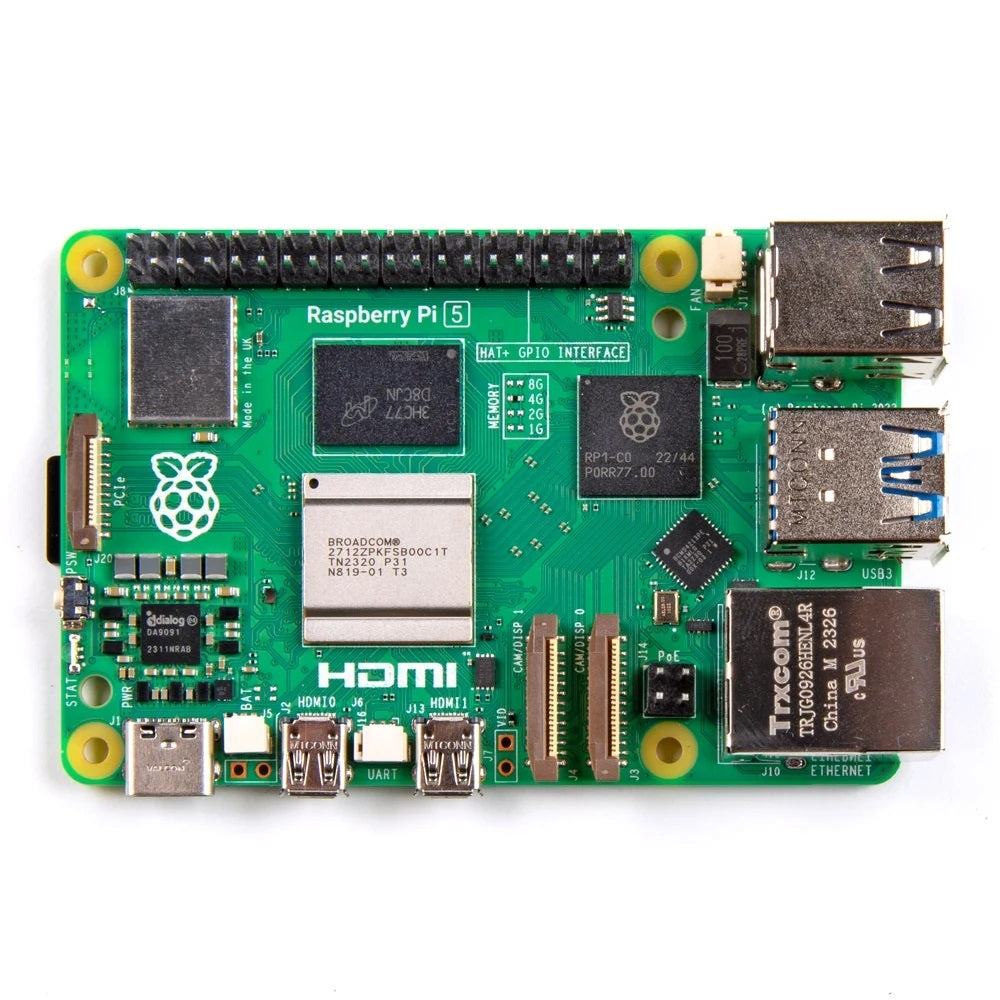

Raspberry Pi 5 - 4GB [DEV-23550] - (AD68549)

Description:

The new Raspberry Pi single-board computer version, with a 2.4GHz quad-core 64-bit Arm Cortex-A76 processor, delivers a 2–3× increase in CPU performance over Raspberry Pi 4. Coupled with a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU, dual 4Kp60 display output over HDMI, and state-of-the-art camera support from a redesigned Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers and opens the door to new applications for industrial customers.

For the first time, this is a full-size Raspberry Pi that uses silicon built in-house. The “southbridge” RP1 provides the bulk of the Raspberry Pi 5’s I/O capabilities and represents a radical improvement in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals. The dedicated 1Gbps four-lane MIPI camera and display interfaces present on earlier models have been replaced by a pair of 1.5Gbps four-lane MIPI transceivers, tripling total bandwidth and supporting any combination of up to two cameras or displays. SD card peak performance is doubled through support for the SDR104 high-speed mode. For the first time, the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.

This module features 4GB of LPDDR4X-4267 SDRAM.

Features and Specifications:

- Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches, and a 2MB shared L3 cache GPU.

- VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2

- Dual 4Kp60 HDMI® display output with HDR support

- 4Kp60 HEVC decoder

- LPDDR4X-4267 SDRAM (4GB)

- Dual-band 802.11ac Wi-Fi®

- Bluetooth 5.0 / Bluetooth Low Energy (BLE)

- microSD card slot, with support for high-speed SDR104 mode

- 2x USB 3.0 ports, supporting simultaneous 5Gbps operation

- 2x USB 2.0 ports

- Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)

- 2x 4-lane MIPI camera/display transceivers

- PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)

- 5V/5A DC power via USB-C, with Power Delivery support

- Raspberry Pi standard 40-pin header

- Real-time clock (RTC), powered by external battery

- Power button
