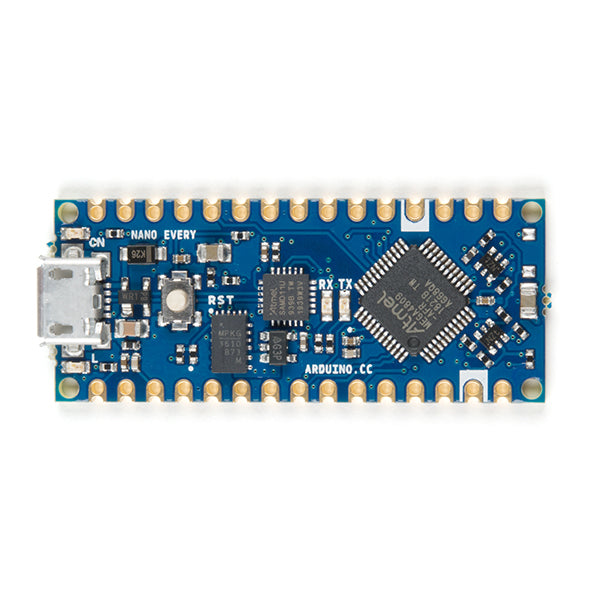

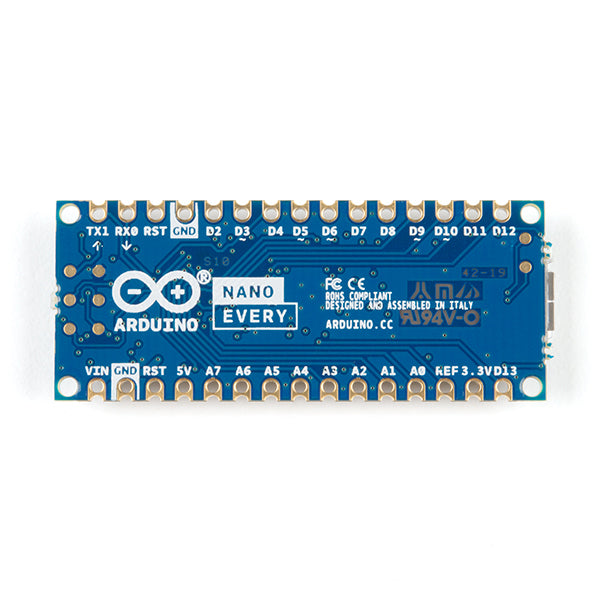

Arduino Nano Every [DEV-15590] - (AD68136)

Description:

Turn your ideas into reality fast with the new Arduino Nano Every. This small, robust, and powerful board has the same classic Nano footprint loved around the world. It can be programmed with the easy-to-use Arduino IDE available online and offline. Get started in minutes with thousands of open-source sketches or write your own - it's the perfect choice for your everyday projects. The Arduino Nano Every’s size makes it ideal for wearable projects; in experiments, in prototyping, or in a full cosplay setup! Sensors and motors can be connected without too much hassle, which means it’s also great for robotics, drones, and 3D printing.

Based on the ATMega4809 AVR processor, the Arduino Nano Every is flexible to your design requirements. It can be used on a breadboard when pin headers are mounted, or as an SMT directly soldered onto a PCB thanks to its castellated pads. A SAMD11 ARM Cortex M0+ processor acts as a high-performance USB-to-serial converter that expert users can reprogram to further expand this board’s applications.

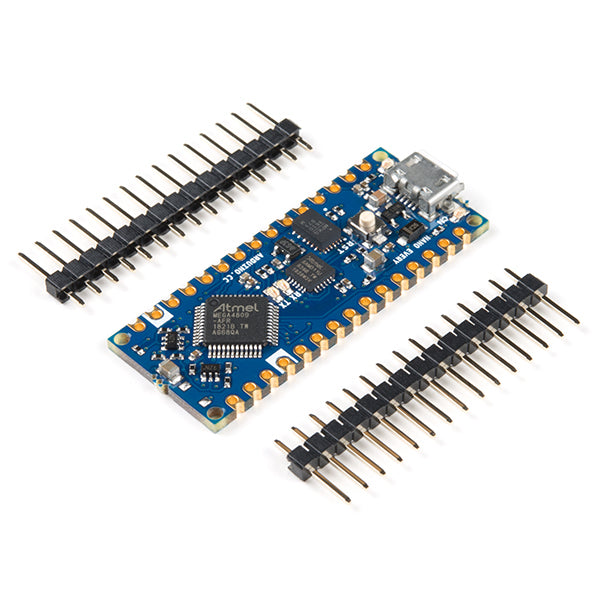

Includes:

• 1x Arduino Nano Every Board
• 2x 15 Pin Headers

Features:

• Microcontroller: ATMega 4809
• Clock Speed: 20 MHz
• CPU Flash Memory: 48 KB
• SRAM: 6 KB
• EEPROM: 256 bytes
• PWM Pins: 5 (D3, D5, D6, D9, D10)
• Operating Voltage: 5V
• Input Voltage (limit): 21V
• DC Current per I/O Pin: 20 mA
• DC Current for 3.3V Pin: 50 mA
• Analog Input Pins: 8 (10-bit ADC)
• Analog Output Pins: Only through PWM (no DAC)
• 14 Digital Pins
• External Interrupts: All digital pins
• Interfaces: 1 UART, 1 SPI, 1 I²C
• Built-in LED: 13
• USB

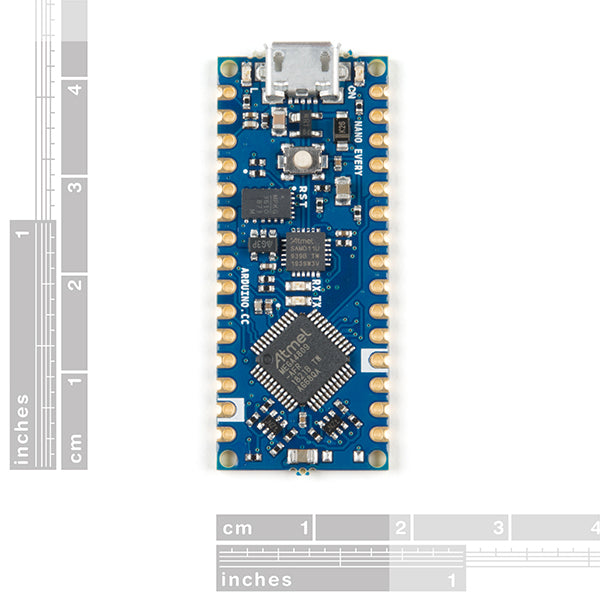

• Dimensions: 45 x 25 mm
• Official library available

Documents:

• Datasheet
• Getting Started with the Arduino NANO Every
• ATMega 4809 Datasheet
• Schematic
• Pinout Diagram
• Arduino IDE Download
• Eagle Files
