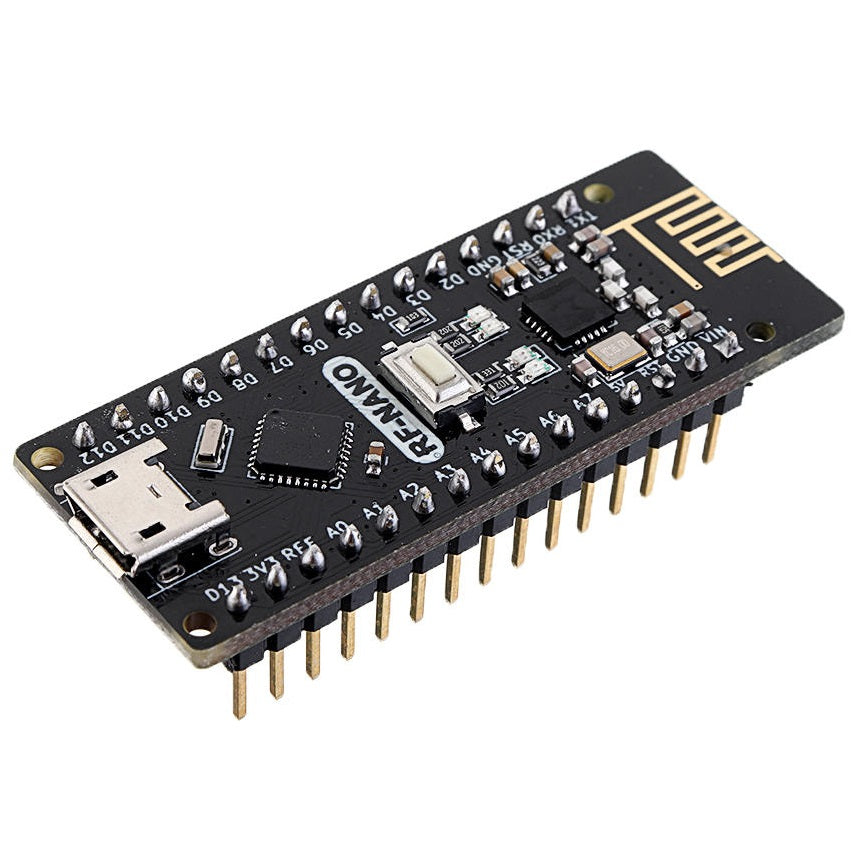

RF Nano - Arduino Nano with NRF24L01 Wireless Module - (AD67110)

Description:

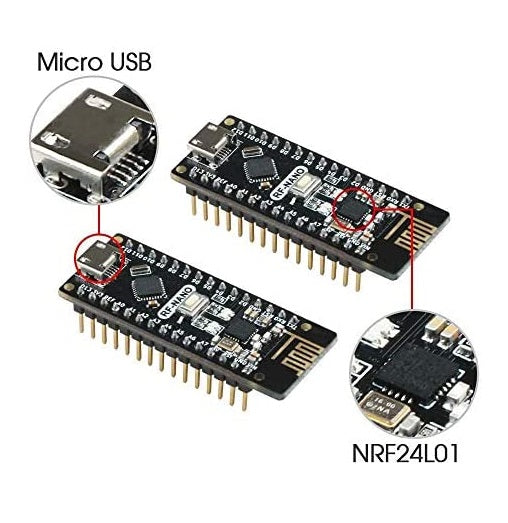

The RF-Nano board combines the versatility of an Arduino Nano V3.0 board and the connectivity of an NRF24L01 module, the best of 2 worlds in the same board. The main chip is ATMEGA328P-MU QFN32, which runs the latest bootloader (Arduino IDE). Thanks to the integration of the NRF24L01+, you can create applications that require a 2.4G wireless connection through a compact, convenient, and solder-free board.

Features:

- Microcontroller: ATMEGA328P-MU QFN32

    - Flash Memory 32 KB

    - SRAM: 2 KB

    - Clock Speed: 16 MHz

    - EEPROM 1 KB

- NRF24L01+ 2.4G wireless antenna

- Operating voltage:

    - Micro USB: 5 VDC

    - VIN PIN: 7 ~ 12 VDC

- Analog I/O: 8 Pins

- DC Current per I/O Pin: 40 mA (I/O Pins)

- Digital I/O: 22 Pins

- PWM Output: 6

- USB to Serial Converter: CH340

- Power Consumption: 19 mA

- Dimensions: 48 x 19mm
