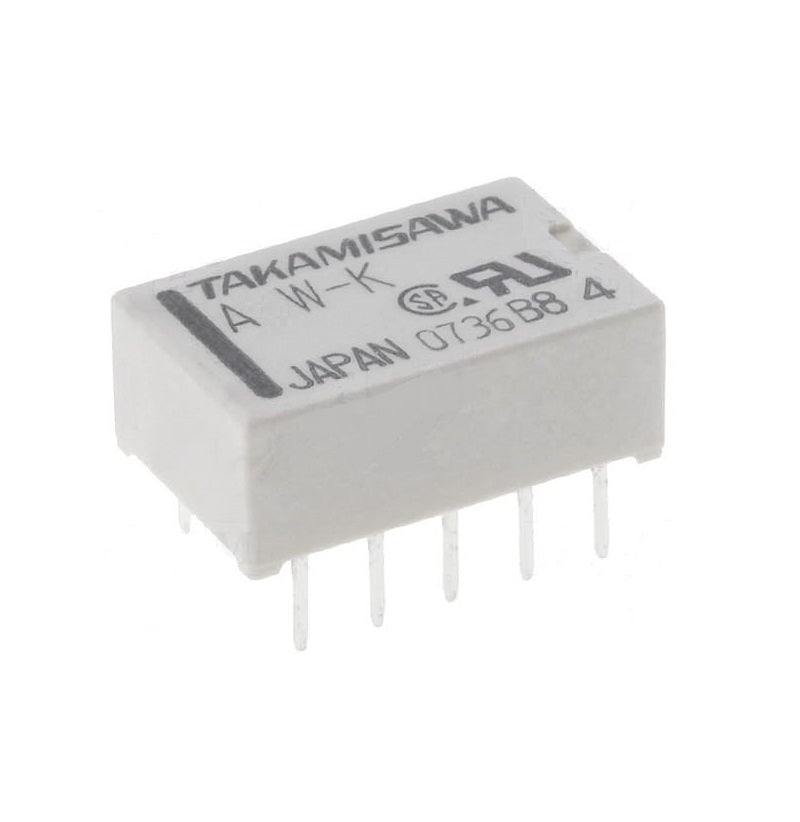

A4.5W-K Mini Relay DPDT 4.5VDC @ 1A - (AD66239)

Description:

This relay's coil has a 4.5V capacity. The contacts have a low current capacity, only 1A (see datasheet below). It is widely used for automotive applications. These are high-quality, general-purpose, double-pole, double-throw (DPDT) sealed relays. Use them to switch high voltage and/or high current devices.

Features:

- Manufacturer: Fujitsu

- Manufacturer Part Number: A-4.5W-K

- RoHS: YES

- Coil Voltage: 4.5 VDC

- Contact Rating: 1A

- Switching Function: DPDT (2 C forms)

- Contact Rating: 0.5A @ 125VAC, 1A @ 30VDC.

- Type: General Purpose

- Operating Function: Non-latching type

- Mounting: Through-hole PCB

- Dimensions: (W x D x H): 9.0 x 14.0 x 5.0mm

Datasheet
