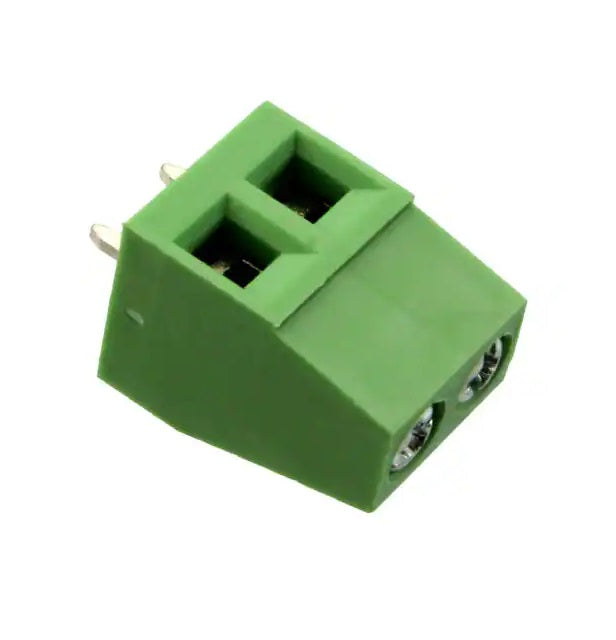

DG128-2 (2.54mm) Screw Terminal Block - 2 Positions - (AD65380)

Description:

Screw terminals spaced at 2.54mm. Comes in 2 or 3 positions, does not have block interlocking feature. Rated up to 150V at 6A. The terminal can accept 30 to 22 AWG wires. The pin pitch is 2.54mm and will align well with standard 0.1" perfboards, the pins are thin and fit well into perfboards.

Specifications:

- ROHS

- Number of poles: 2

- Pin spacing: 2.54mm

- Fits 22 - 30 AWG wire

- Current rating: 6A @ 150V

- Insulation resistance: 20Mohm

Datasheet
