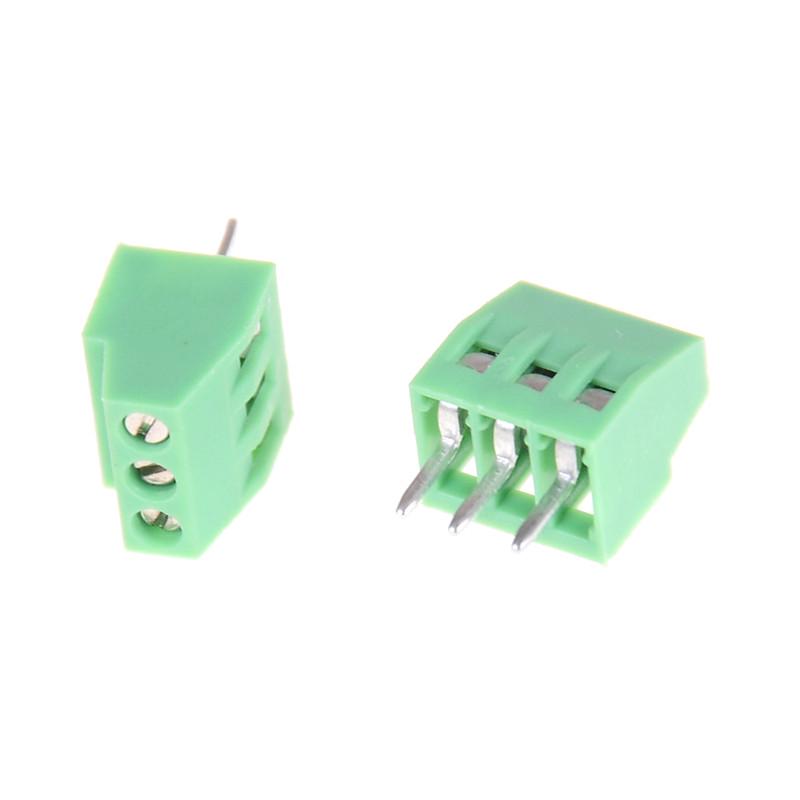

DG128-3 (2.54mm) Screw Terminal Block - 3 Positions - (AD65374)

Description:

Screw terminals spaced at 2.54mm. Comes in 2 or 3 positions, does not have block interlocking feature. Rated up to 150V at 6A. Terminal can accept 30 to 22 AWG wires. Pin pitch is 2.54mm and will align well with standard 0.1" perfboards, pins are thin and fit well into perfboards.

Note: Sold individually!

Specifications:

- ROHS

- Number of poles: 3

- Pin spacing: 2.54mm

- Fits wire 22 - 30 AWG

- Current rating: 6A @ 150V

- Insulation resistance: 20Mohm

Datasheet
