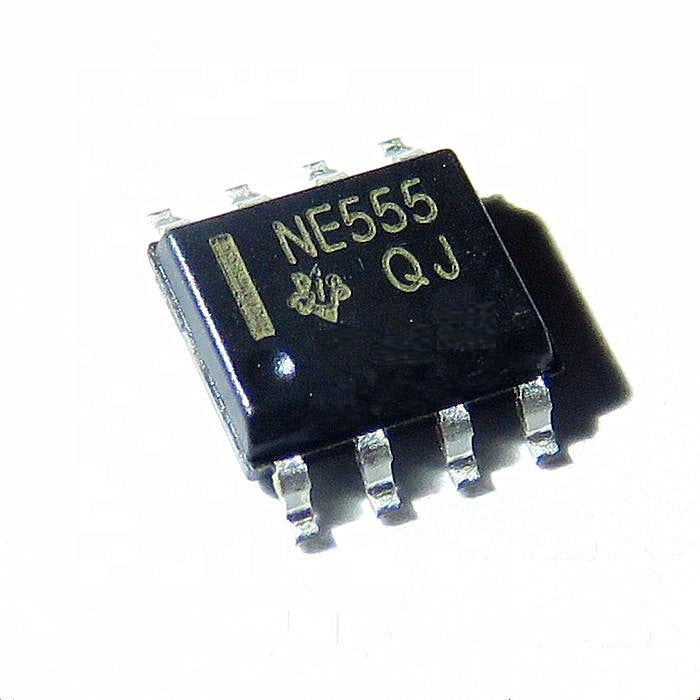

NE555 Timer (SMD SO-8) - (AD63848)

Description:

The 555 is a highly stable device for accurate time generation for delays or oscillation. Additional terminals are provided for triggering or resetting if desired. In time delay operation, the time is precisely controlled by an external resistor and capacitor. For astable operation as an oscillator, the frequency and duty cycle are accurately controlled with two external resistors and a capacitor. The device can be triggered or reset on the edges of the waveforms, and the output circuit can supply 200mA or drive TTL circuits.

Features:

- Timing from microseconds to hours.

- Adjustable duty cycle.

- TTL compatible output and power supply.

Datasheet
