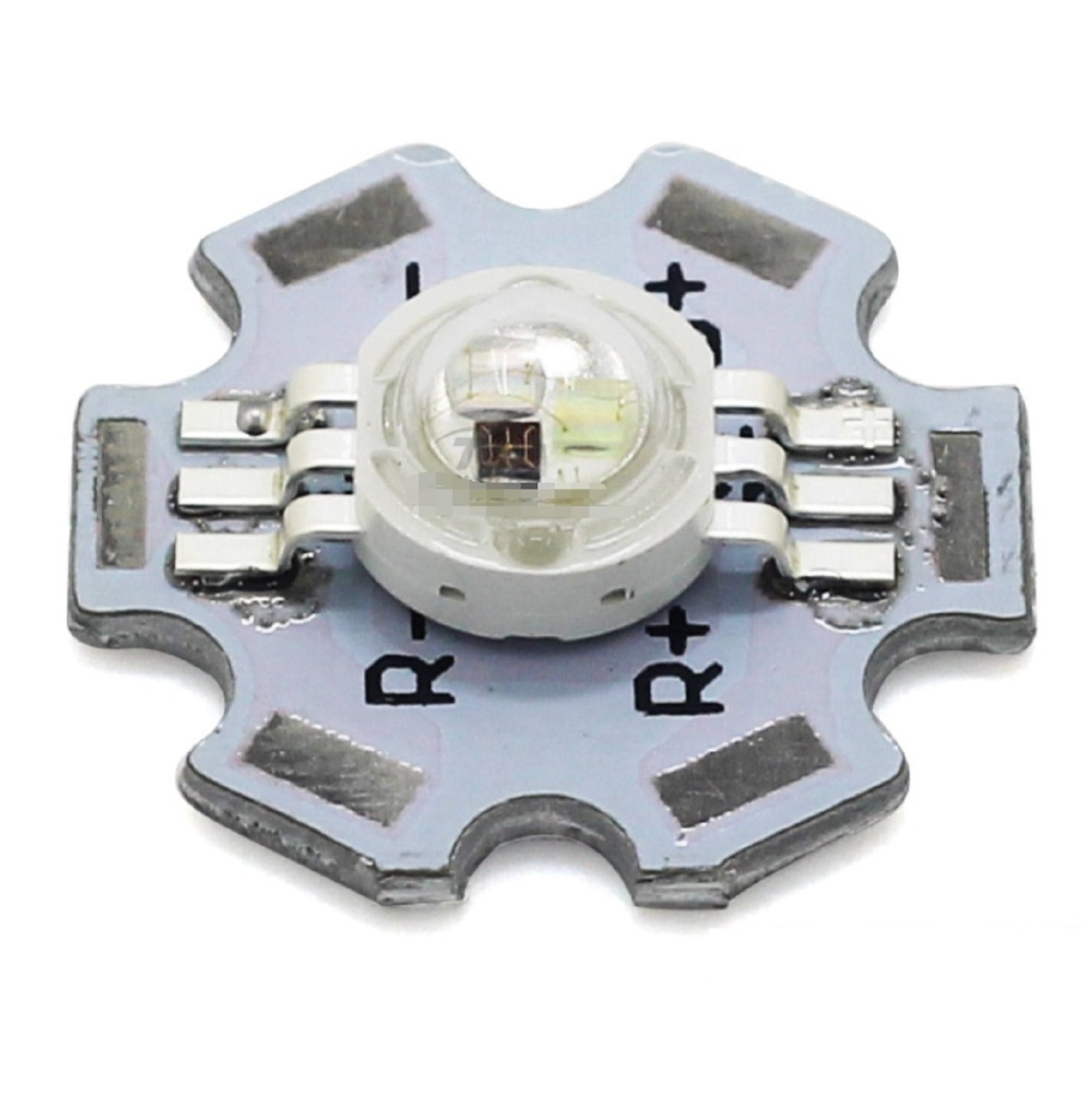

RGB 6-Pin 3W LED with PCB - (AD63667)

Description:

So much power and light in such a small package. This high-power, triple-output, 3W-per-channel RGB LED is sure to shed a lot of light on any project you add it to. This LED acts like any other LED except they require a lot more power while delivering light as intense as a thousand suns going supernova (this is an exaggeration, but you know what we mean).

Please note that with all three LEDs on (9W total output), you will need an additional heatsink.

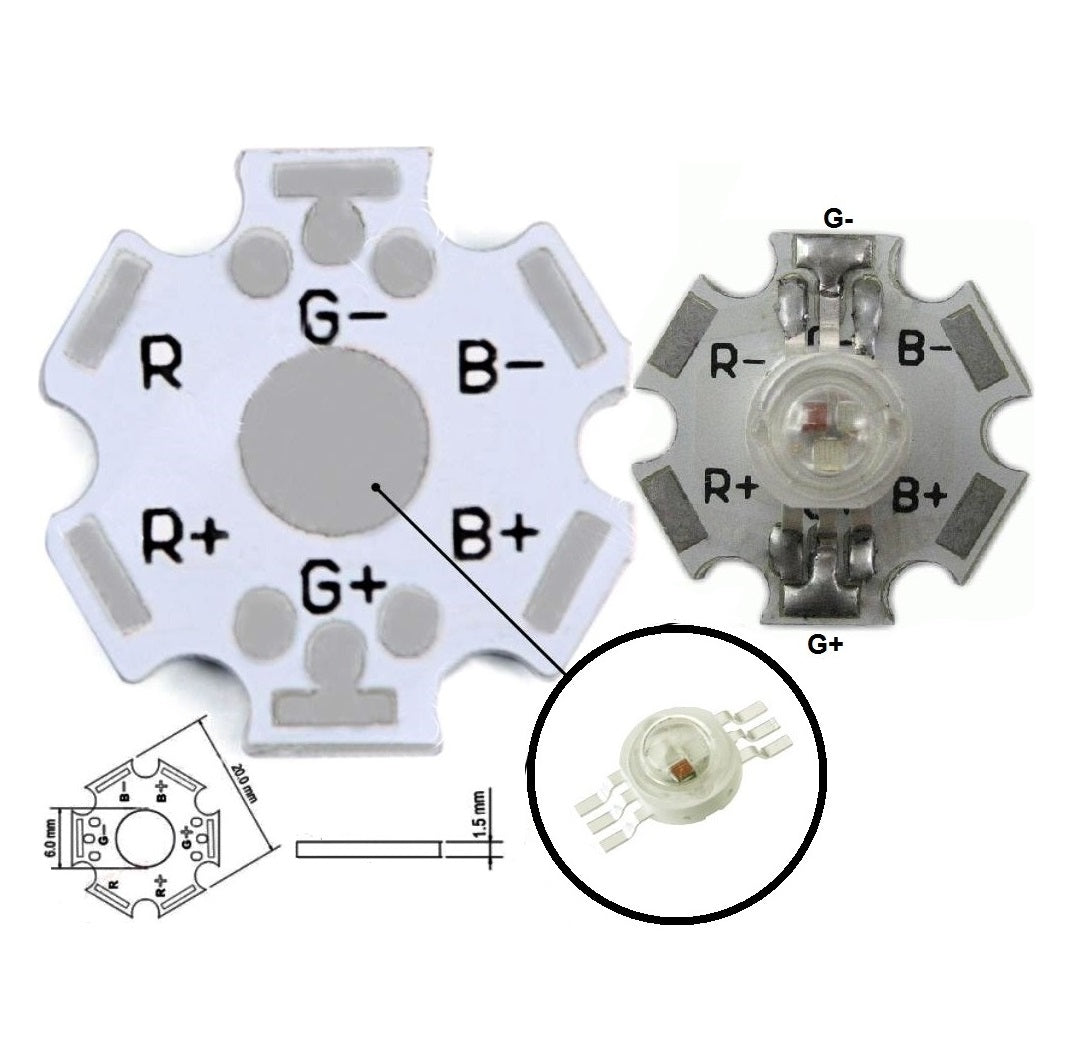

This LED sits on an aluminum-backed PCB to aid in heat dissipation, but with a 9W total output, an additional heat sink will be required. Also, each LED requires an operating voltage of 2.2 - 2.6V for red, 3.2 - 3.8V for green, and 3.2 - 3.8V for blue.

Note: We like to joke about supernovas and all that, but seriously, do not look directly into the LED.

Features:

- Size (Approx.): 18mm (D) x 8mm (H)

- Aluminum PCB for thermal dissipation

- Operating Voltage:

    - Red: 2.2 - 2.6V

    - Green: 3.2 - 3.8V

    - Blue: 3.2 - 3.8V

- Wavelength:

    - Red: 620 nm

    - Green: 520 nm

    - Blue: 460 nm

- Viewing Angle: 140°

Documents:

• Datasheet
• Lumen to MCD Calculator
• Related Hookup Guides:
  • PicoBuck LED Driver Hookup Guide
  • FemtoBuck LED Driver Hookup Guide
