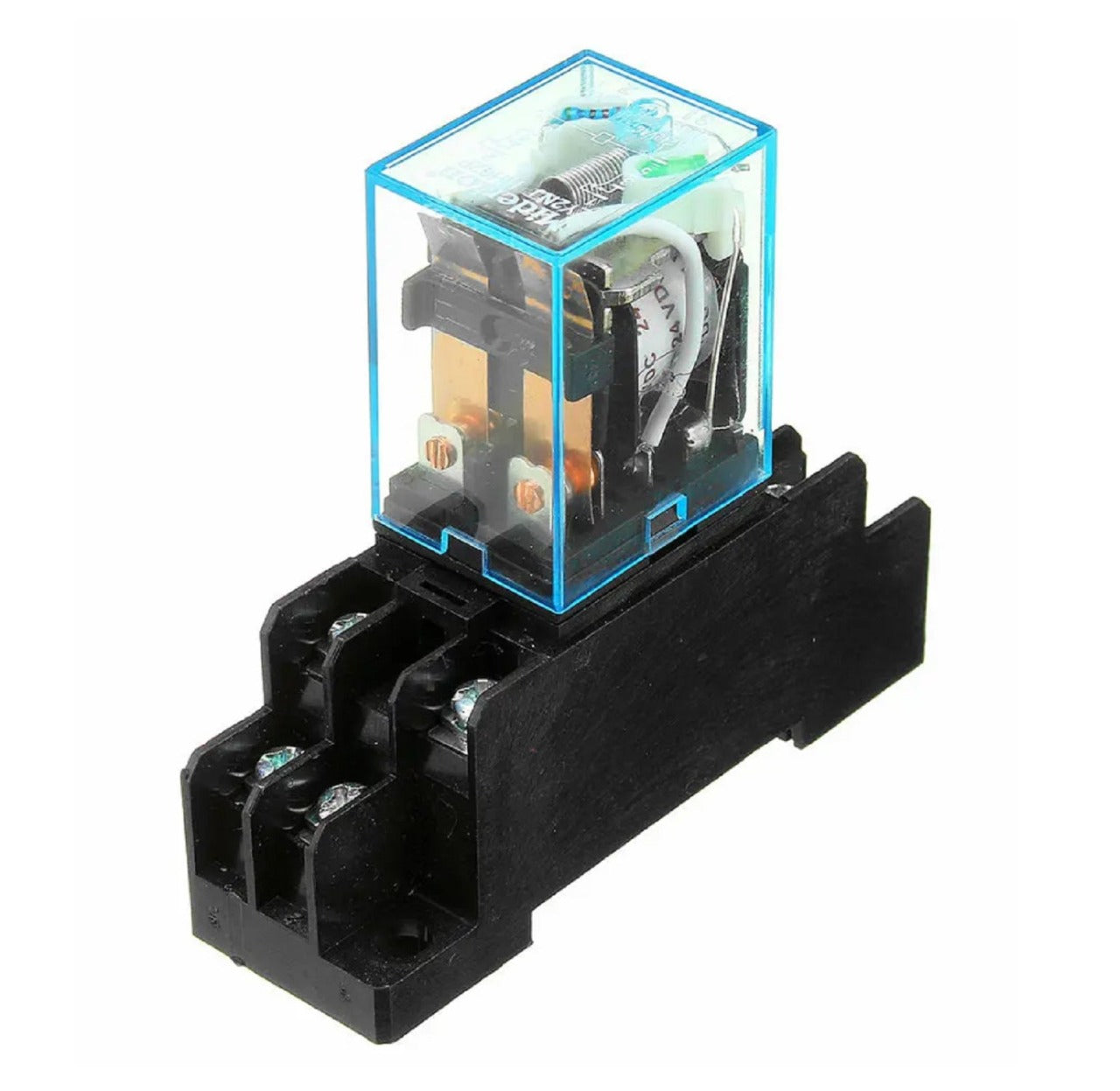

12VDC Coil Power Relay JQX-13F DPDT 8 Pin With Socket Base - (AD62611)
12VDC Coil Power Relay JQX-13F DPDT 8 Pin With Socket Base - (AD62611)
Couldn't load pickup availability
Description:
This is a 12VDC coil relay with a DIN rail base. DC power relays interrupt high-capacity DC/AC loads and high-voltage DC/AC circuits in a compact, quiet design. The sealed construction also requires no arc space, saves space, and helps ensure safe applications.
These are double-pole, double-throw (DPDT) protective relays. Use them to switch high voltage and/or high current devices.
Features:
- Base model: LY2NJ (8 pins)
- Relay model: JQX-13F
- Coil voltage: DC12V
- Coil power: DC (W): ≤0.9AC (VA): ≤1.2
- Contact structure: 8 pins, 1x N.O. Contact, 1x N.C. Contact
- Contact capacity: 10A @ 250VAC
- Pickup voltage: ≤80% (V)
- Release voltage: DC: ≥10% (V), AC: ≥30%
- Contact resistance: ≤50 (mΩ)
- Insulation resistance: ≤100 (mΩ)
- Dimensions: 27.5 x 21 x 35.3 mm
- Action time: 20 ms or less
- Reset time: 20 ms or less
- Operating frequency: Mechanical 18,000 cycles/hour, Electrical 18,000 times/hour
