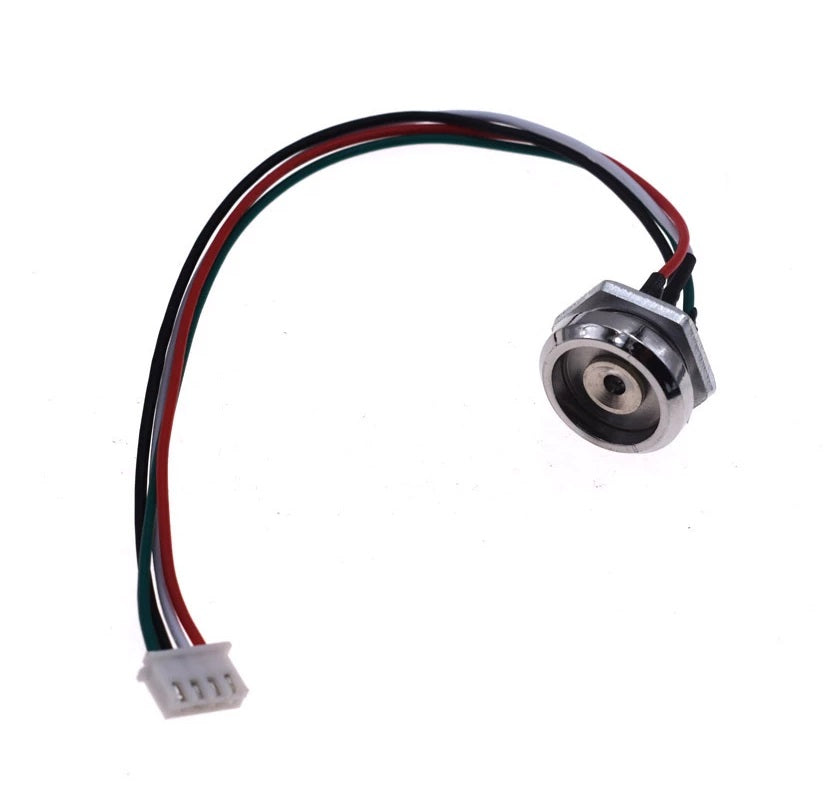

DS9092 iButton Reader with LED - (AD62552)

Description:

This is a TM DS9092 card reader for iButton probes with an LED light. These iButton probes are simple and easy to use. The probe offers the capabilities and durability of other probes at a lower cost and easier handling. With standard features and additional tactical feedback, the probe is a great tool for handheld devices that read stationary or free-standing iButtons.

This iButton probe provides the electrical contact necessary for data transfer to and from the DS19xx family of iButtons. The probe's round shape provides a self-aligning interface that easily matches the circular rim of the iButton MicroCan package. The metal contacts resist wear and are easy to keep clean. This type of probe is best suited for designs where the iButton makes contact with the reader.

Characteristics:

- High sensitivity

- The probe guides the iButton entry

- iButton glides over the surface to self-clean the contacts

- Accessible shallow probe cavity simplifies removal of debris such as mud

- Flexible design supports panel mounting or hand grip mounting with optional tactile feedback

- Applications: Communications and telecommunications; transportation and automotive; security, avionics, and defense

Data sheet

Reference link
