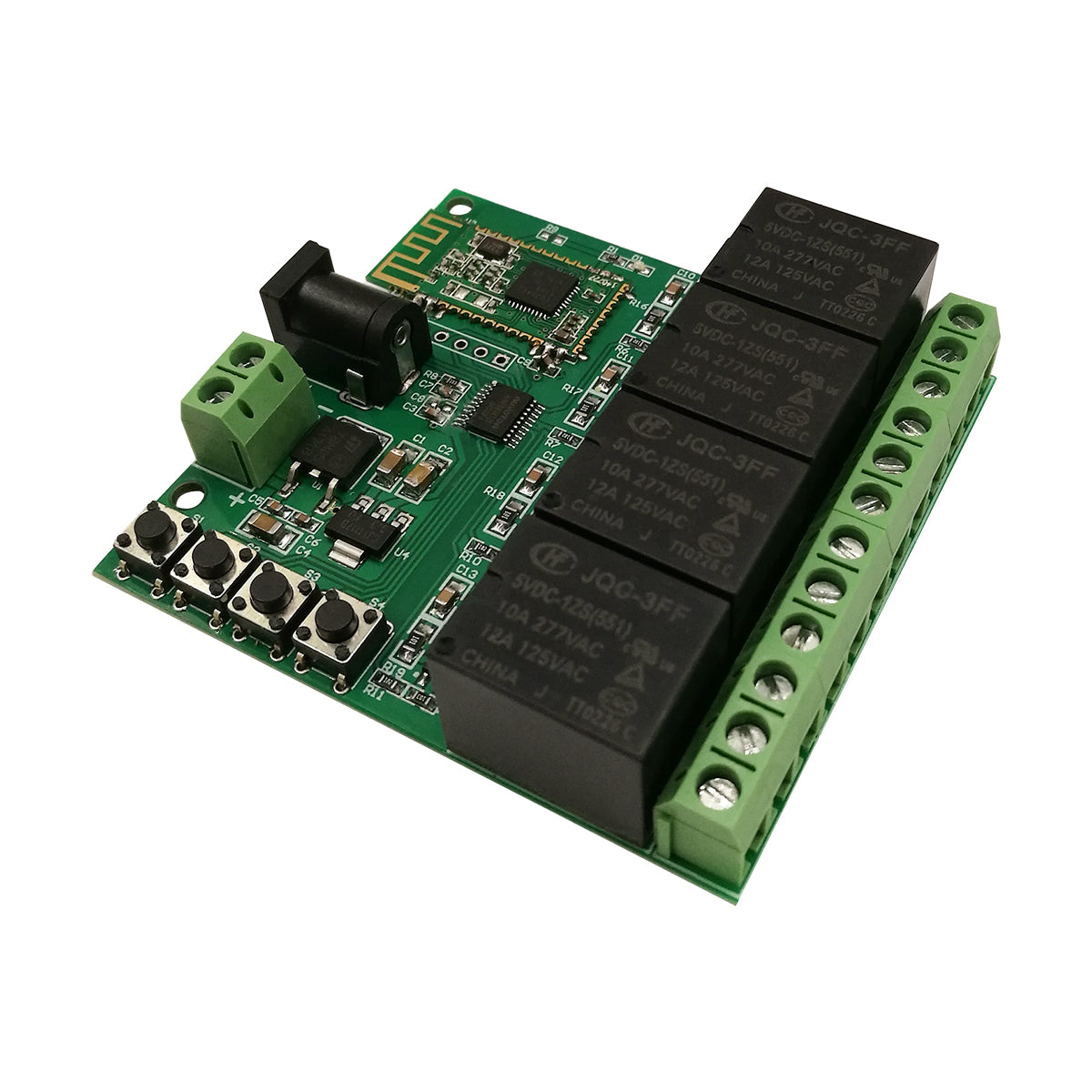

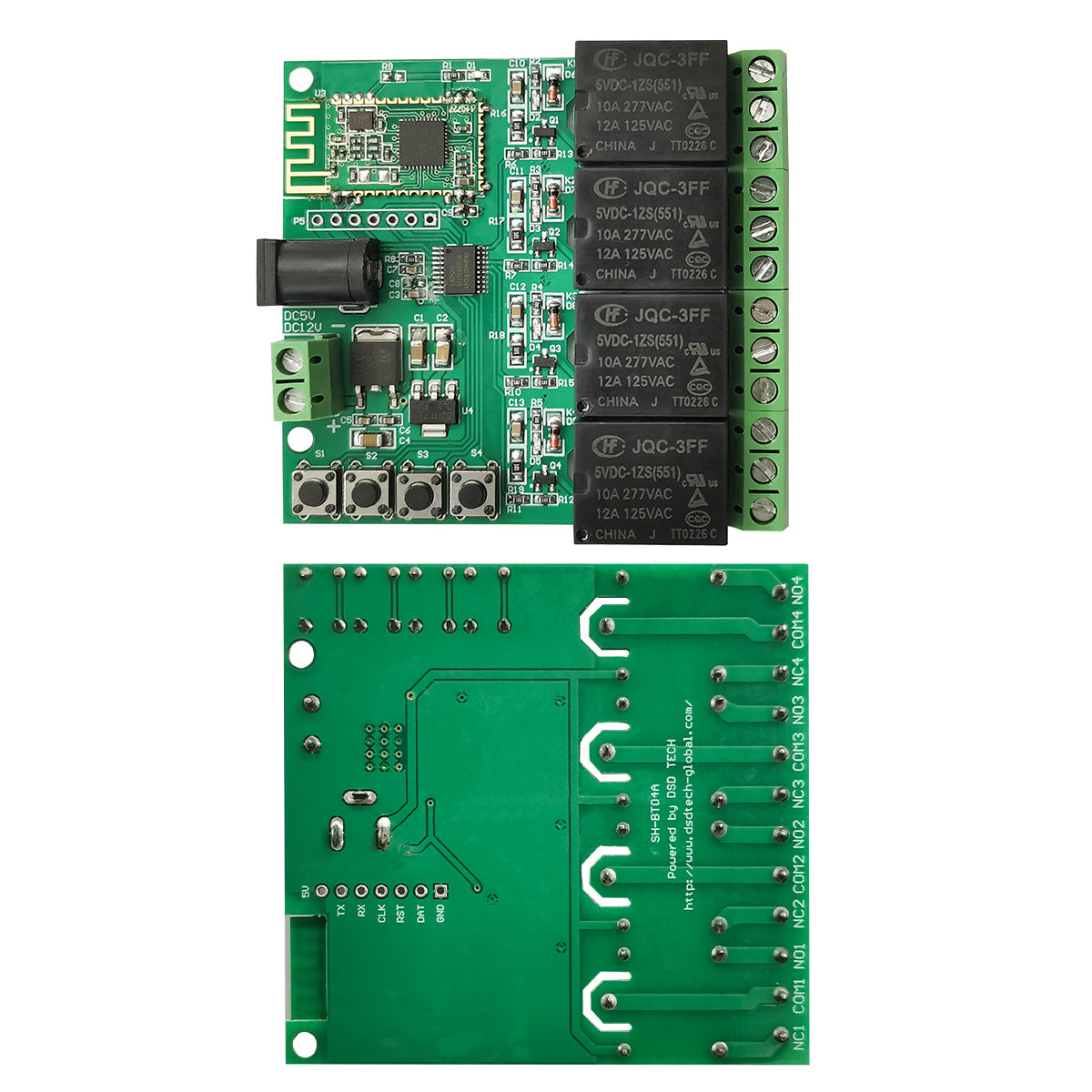

SH-BT04A 4-Channel Relay Bluetooth Module - (AD60216)

Description:

This DSD TECH module incorporates Bluetooth 4.0 BLE, compatible with iOS devices (iPhone and iPad) and Android 4.3 or later; this 4-channel relay module supports a 5VDC and 12VDC power supply. The output of each relay only emits control signals (it is a "dry" contact) and does not directly emit power. It can control both DC and AC circuits.

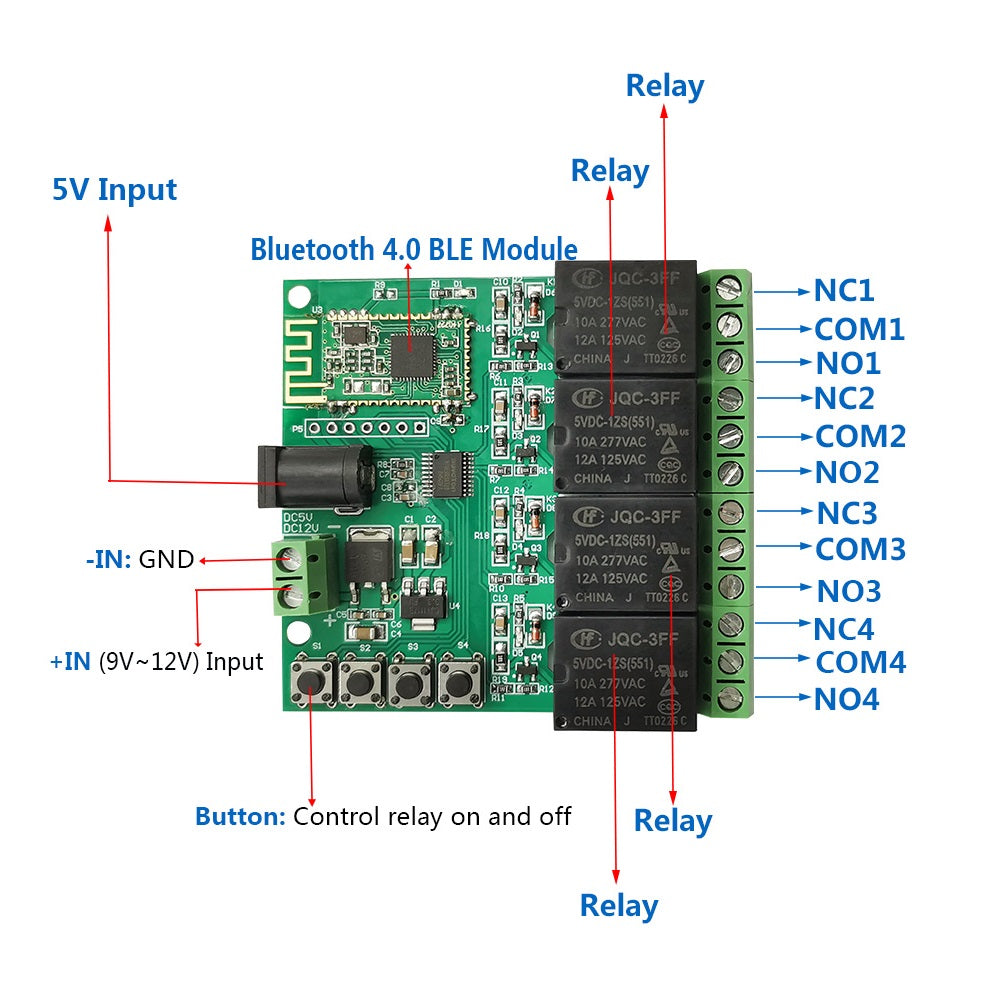

Specifications:

- Built-in DSD TECH SH-BT04A Bluetooth 4.0 BLE module

- Supports iOS devices (iPhone and iPad) and Android 4.3 and later.

- Can be powered with 5VDC, or also from 9V to 12VDC.

- Each relay contact can withstand: 10A@250VAC, 10A@30VDC, the relay has a long service life and can switch 100,000 times continuously.

- Bluetooth status indicator (Flashing: not connected, always on: after connection) and relay status indicator.

- Control distance up to 10m (open space environment)

- Bluetooth 4.0 BLE specification

- Module operating voltage (VCC): DC 12 V.

- Maximum DC control voltage: DC 30 V

- Maximum switching control voltage: AC 250 V.

- Size: 62 mm * 62 mm

About the application:

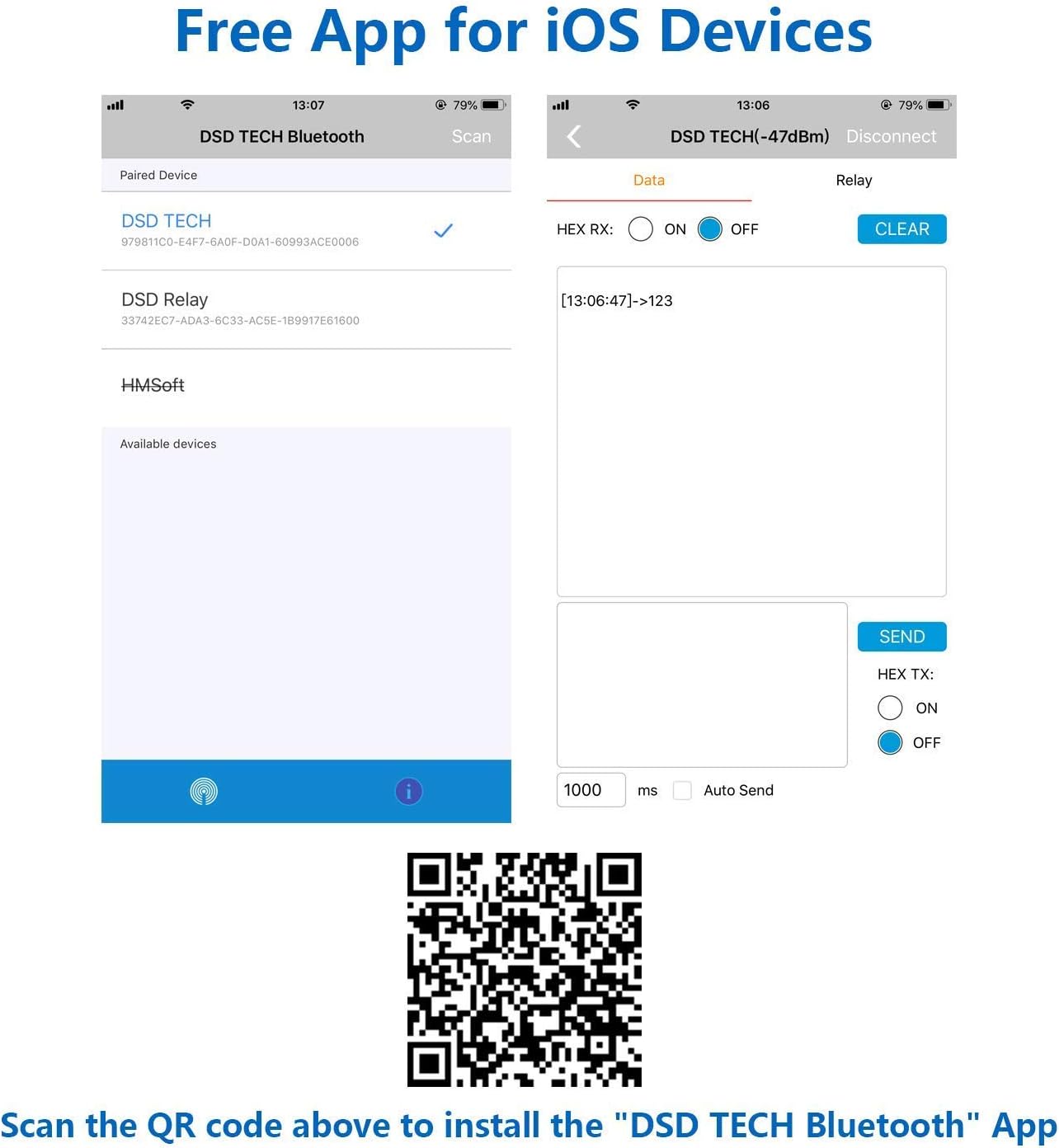

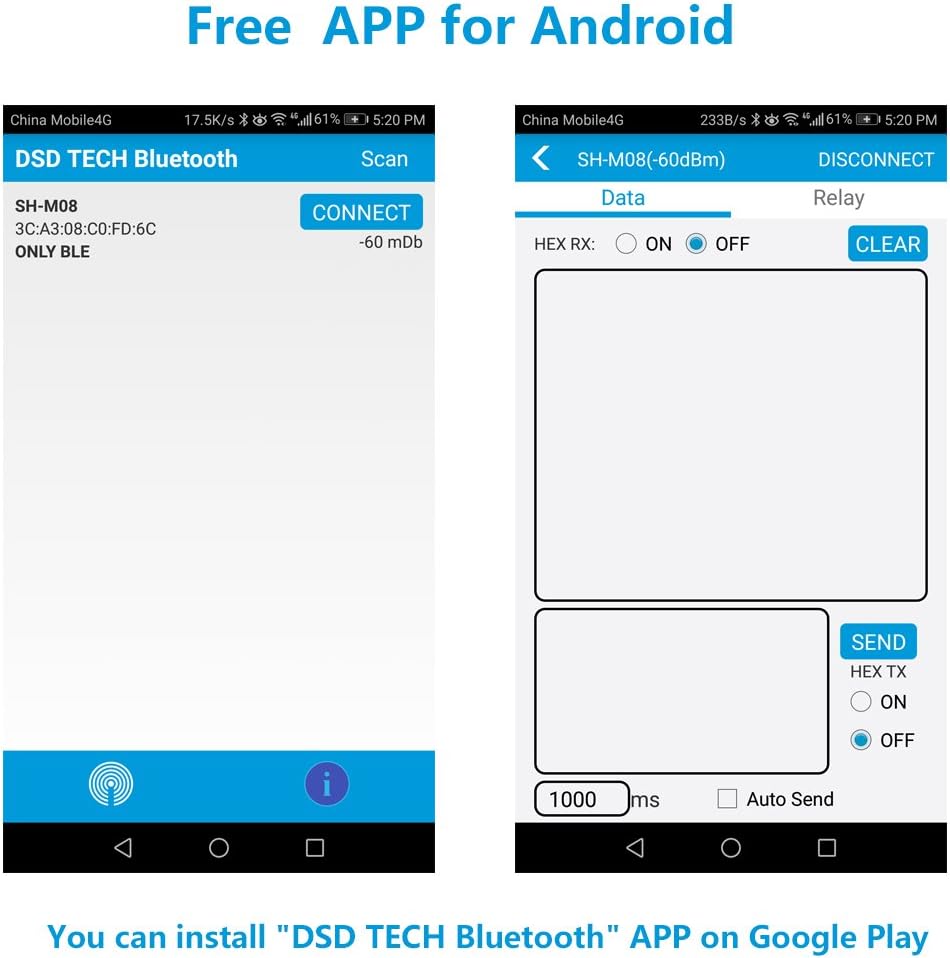

- For Android: search for "DSD TECH Bluetooth" on Google Play, or use the reference link

- For iOS devices (iPhone or iPad): search for "DSD TECH Bluetooth" in the App Store.

- Control instruction (hexadecimal format):

    - Channel 1 ON: A00101A2

    - Channel 1 OFF: A00100A1

    - Channel 2 ON: A00201A3

    - Channel 2 OFF: A00200A2

    - Channel 3 ON: A00301A4

    - Channel 3 OFF: A00300A3

    - Channel 4 ON: A00401A5

    - Channel 4 OFF: A00400A4
