MicroJPM

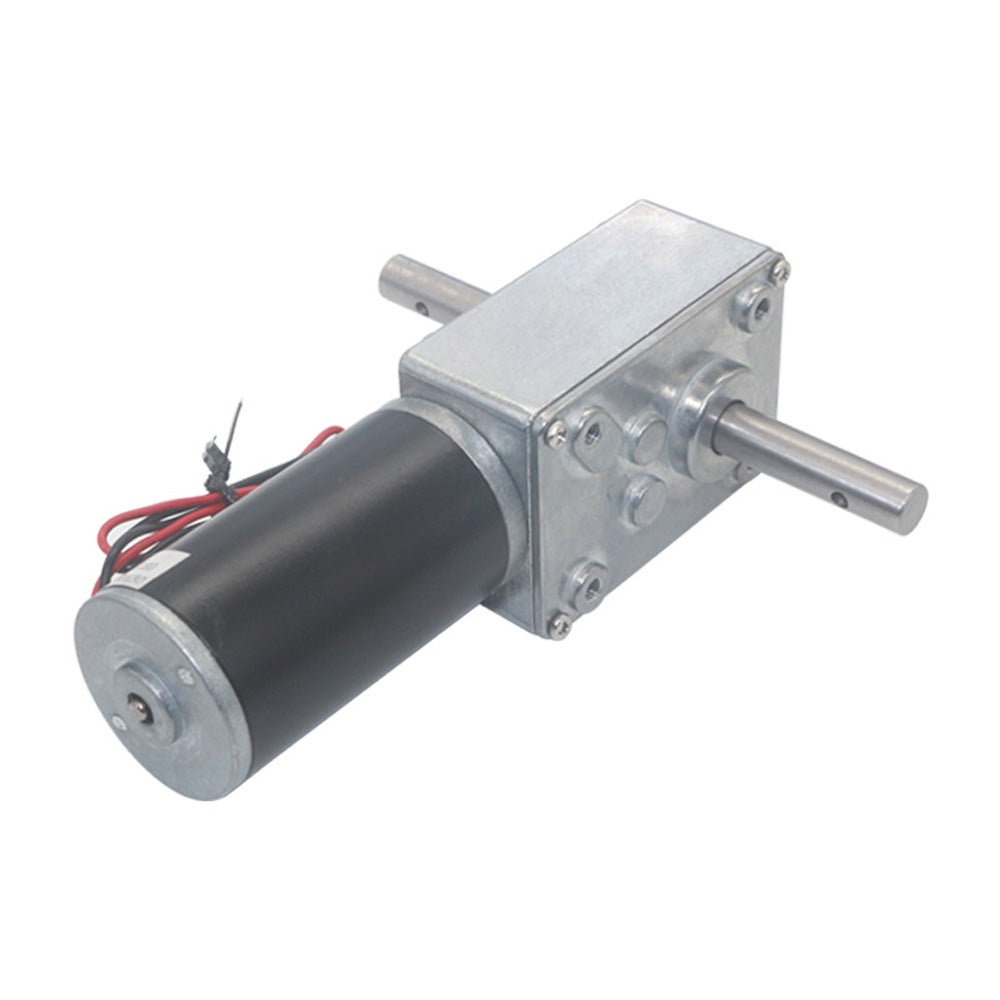

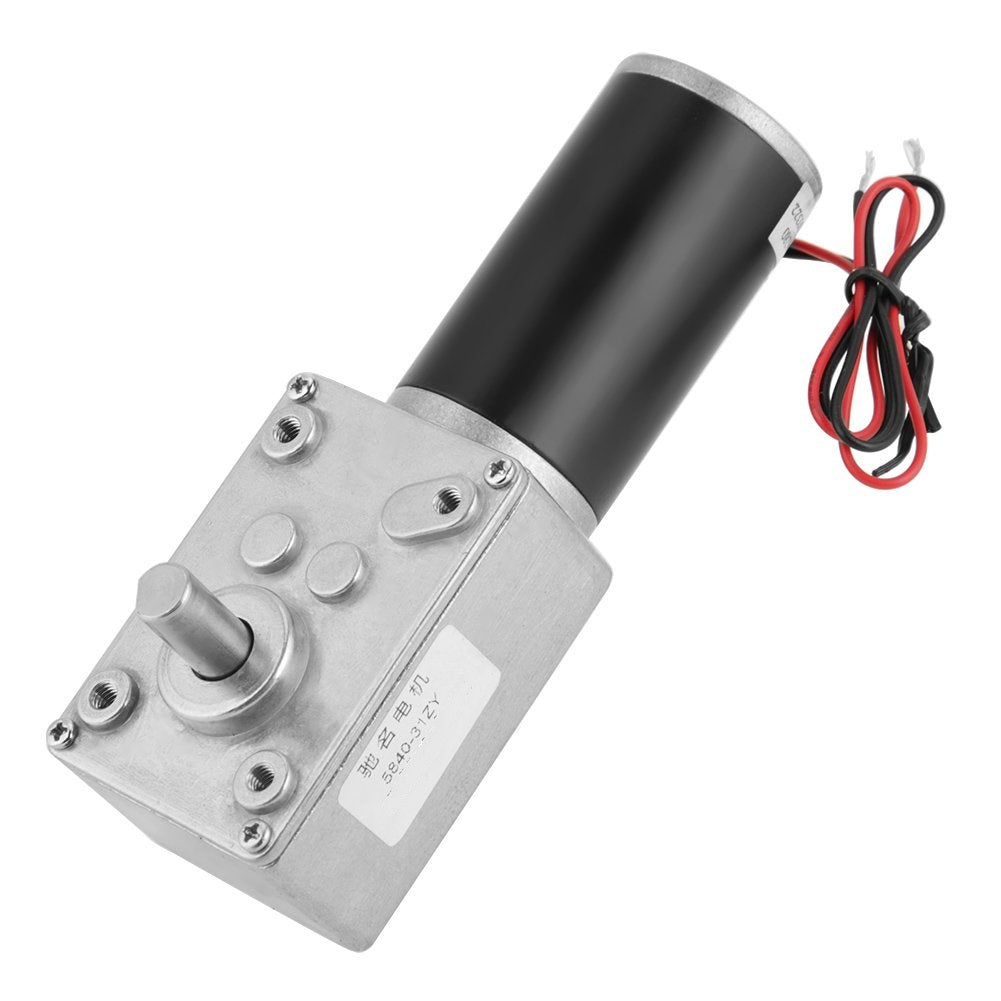

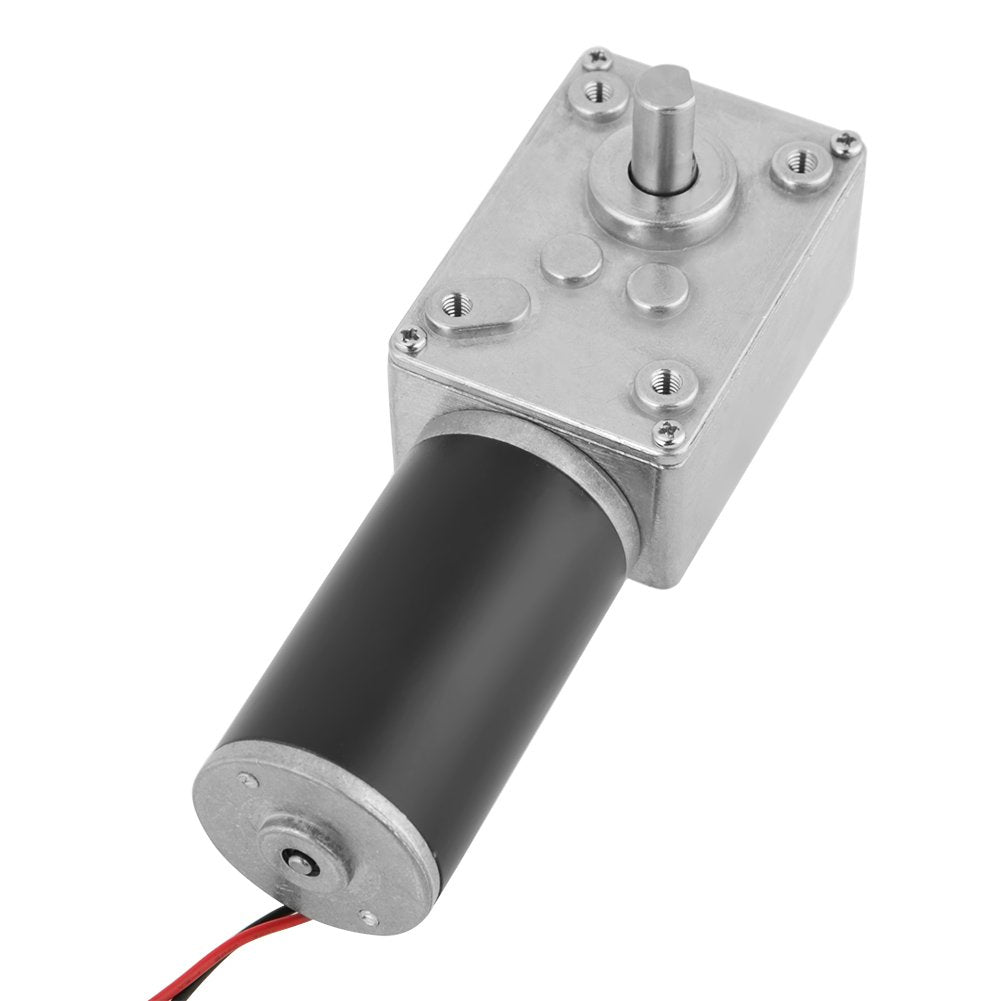

5840-31ZY - 12VDC 160RPM 2-Axis Gear Motor - (AD59368)

5840-31ZY - 12VDC 160RPM 2-Axis Gear Motor - (AD59368)

Regular price $40.95 USD
Regular price Sale price $40.95 USD
Sale Sold out
Quantity

Description:

These standard gearmotors are incredibly robust and feature full metal gears to help you control wheels, gears, or almost anything else you need to rotate. They have a high gear ratio, which allows them to generate 71 kg-cm of torque and operate up to 24 volts, and they also have a maximum speed of 160 RPM. Each standard gearmotor has an 8mm diameter D-shaft.

Features:

- Voltage: 12 - 30 Volts (This version is 12VDC)

- Max Torque: 71 Kg-cm @ 14V

- Speed: 160 RPM @ 12V

- Max Current: 2A @ 12V

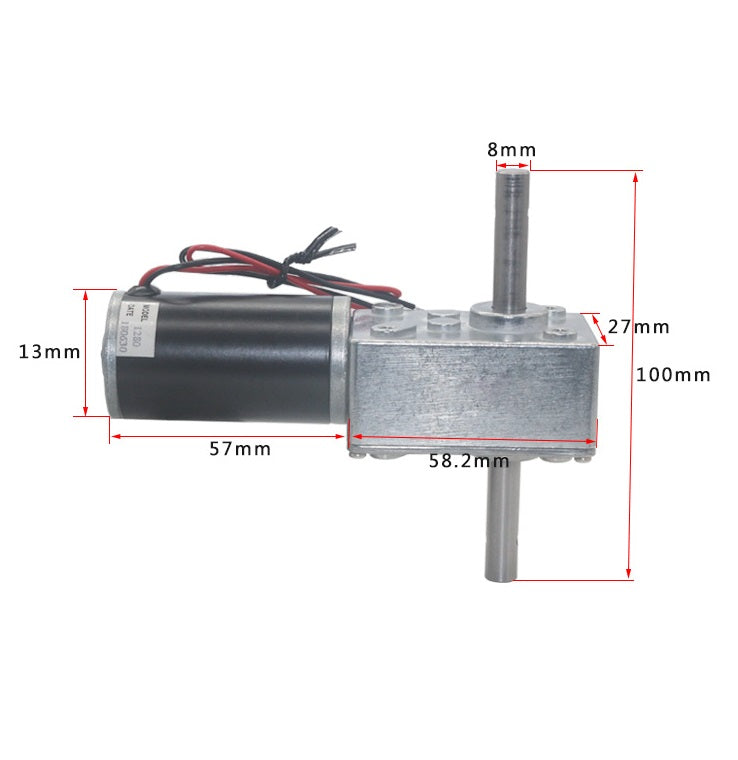

- Shaft Size: 8mm Diameter x 15mm Length (Dual shaft)

- Motor Size: 30mm Diameter x 110mm Length

- Gearmotor Model: 5840-31ZY (DC: 12V, 160RPM)
