(12V) AD16-22D Blue LED Pilot Lamp Panel Mount 12V - (AD58827)

Description:

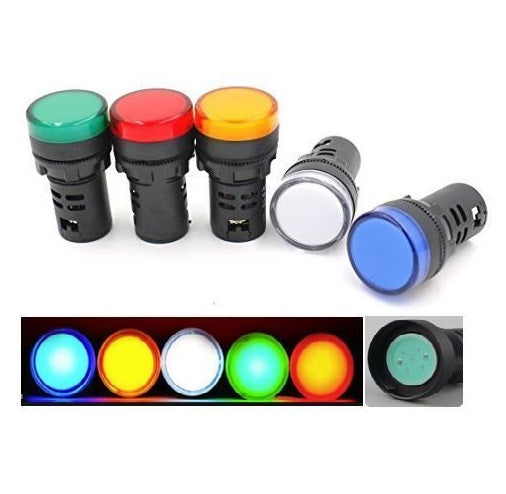

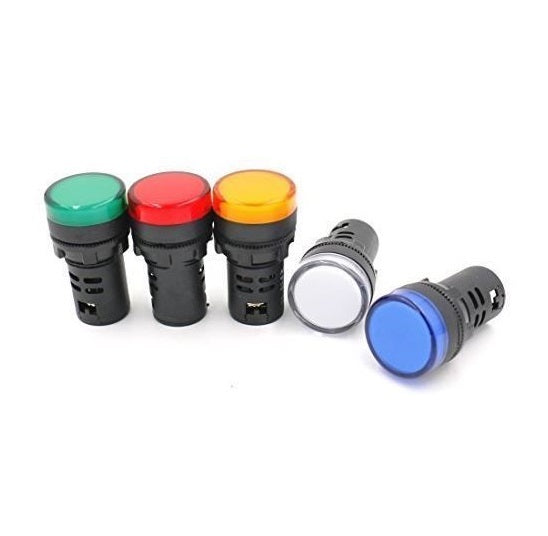

This is a pilot light with a diameter of 29mm and a length of 51mm. The light model is AD16-22D and it can be powered by 12V AC/DC. That's right, it works with direct or alternating current. The mounting hole diameter is the standard 22mm, a size commonly used in automation panels.

Specifications:

- Maximum power supported: 2.5KW AC, 1min

- Insulation resistance: greater than 2Mohm

- Allows voltage fluctuations: 12V with a 5% tolerance

- Brightness: Greater than or equal to 75mcd

- Light operation: Steady

Environmental parameters:

- Operating temperature: -25ºC ~ + 55ºC

- Relative Humidity: 98%

Datasheet
