TTL Serial JPEG Camera with NTSC Video [PID:397] - (AD5807)

Description:

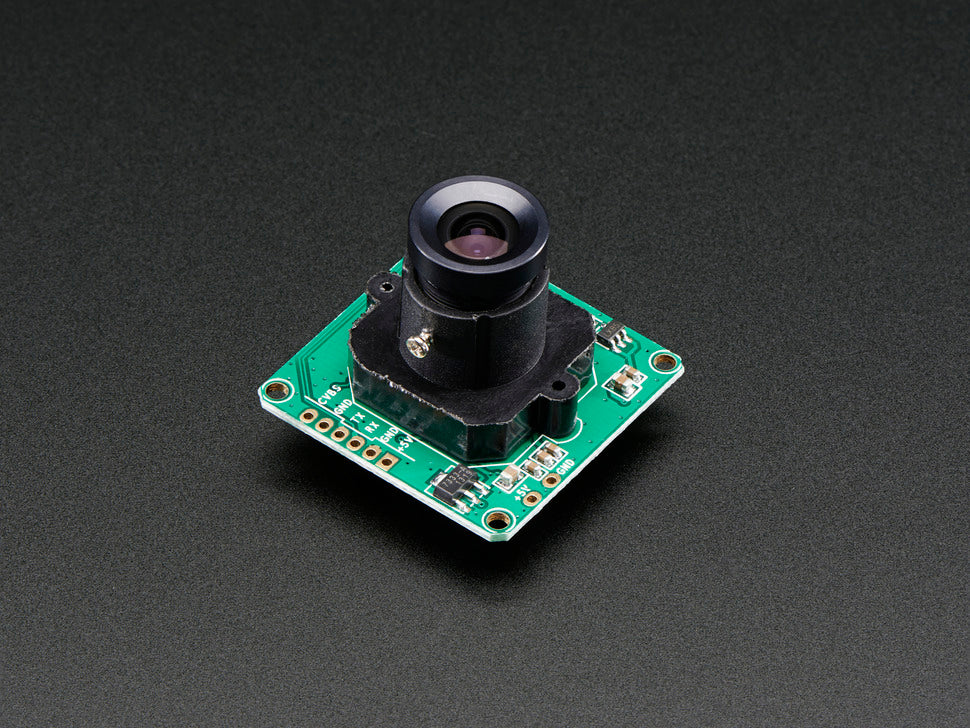

This camera module can be a great addition to a project. It was designed for use in security systems and does two main things: it outputs monochrome NTSC video and can take snapshots of that video (in color) and transmit them over the TTL serial link. You can take photos in 640x480, 320x240, or 160x120, and the images are pre-compressed in JPEG format, making them nice and small, and easy to store on an SD card. Perfect for data logging, security, or project photography.

One good thing about this particular camera is all the "extras" that come with it. For example, it has manually adjustable focus , automatic white balance , self-contrast , in addition motion detection built-in! This means you can have an alert in your project when something moves in the image.

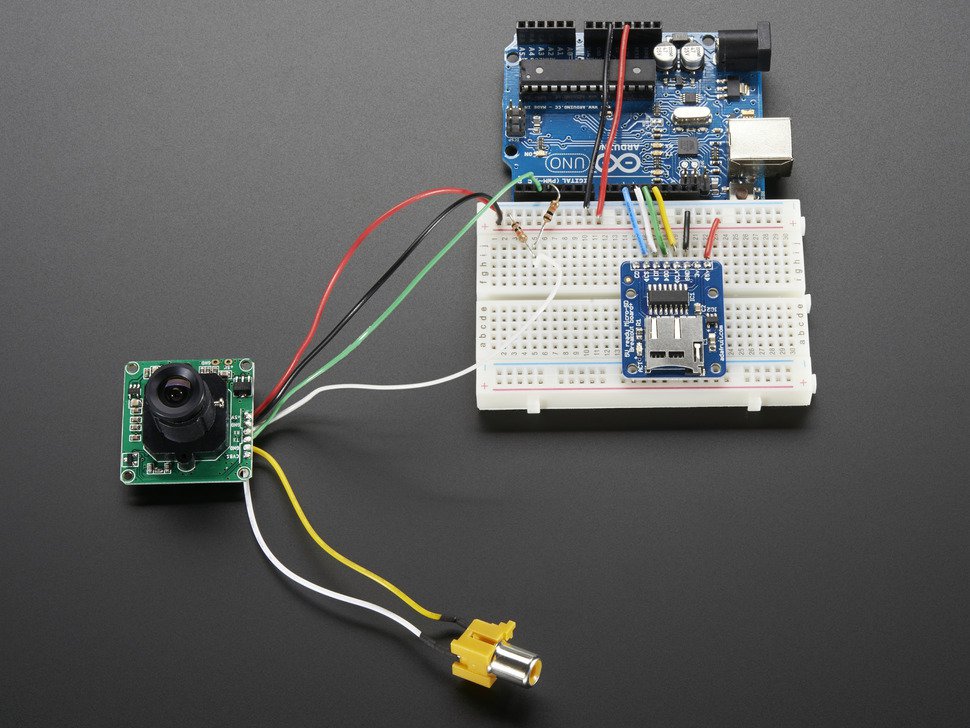

Using the module is very easy and only requires two digital pins (or a TTL serial port) - by default it transmits at 38400 baud. Of course NO We would like to leave you with a datasheet and a "good luck", Adafruit invested a lot of time researching the module and DSP to make a very good Arduino library with example code showing how to change image size and compression quality, motion detection, control the video output stream, etc. that and more is available on our very detailed tutorial that will help you get the most out of your camera .

Technical data:

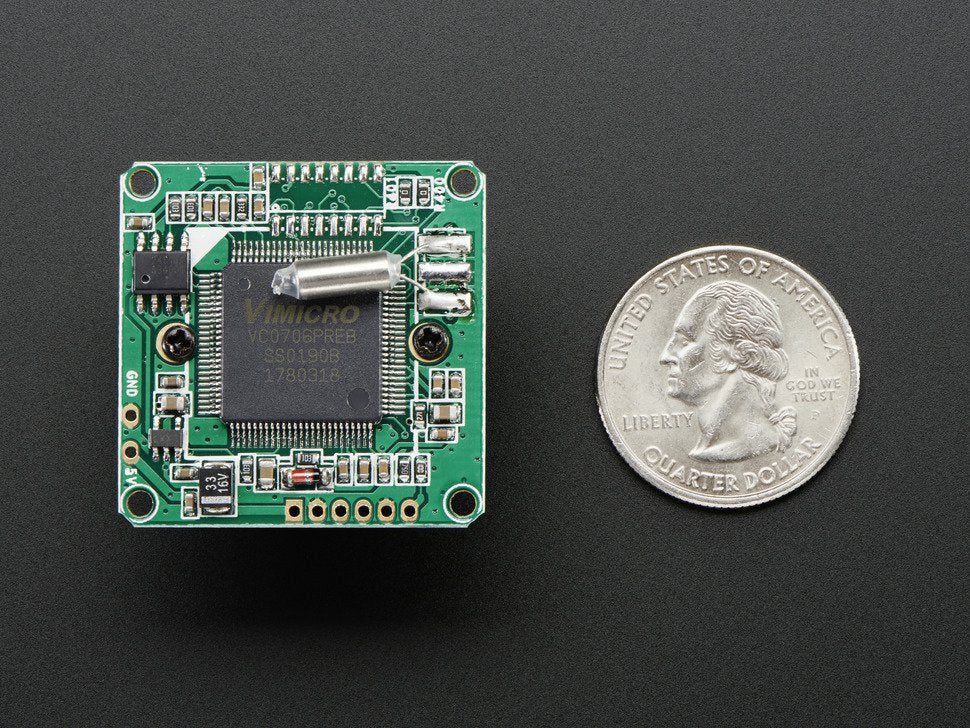

- Module size: 32mm x 32mm

- Image sensor: 1/4 inch CMOS

- CMOS Pixels: 30M

- Pixel size: 5.6um*5.6um

- Output format: Standard JPEG

- White balance: automatic

- Exposure: Automatic

- Gain: Automatic

- Shutter: electronic shutter

- SNR: 45DB

- Dynamic range: 60dB

- Max Analog Gain: 16dB

- Frame rate: 640*480, 30fps

- Scan mode: progressive scan

- Viewing angle: 60 degrees

- Monitoring Distance: 10 meters, 15 meters maximum (adjustable)

- Image size: VGA (640 * 480), QVGA (320 * 240), QQVGA (160 * 120)

- Baud rate: default 38400, maximum 115200

- Current consumption: 75mA

- Working voltage: DC 5V +

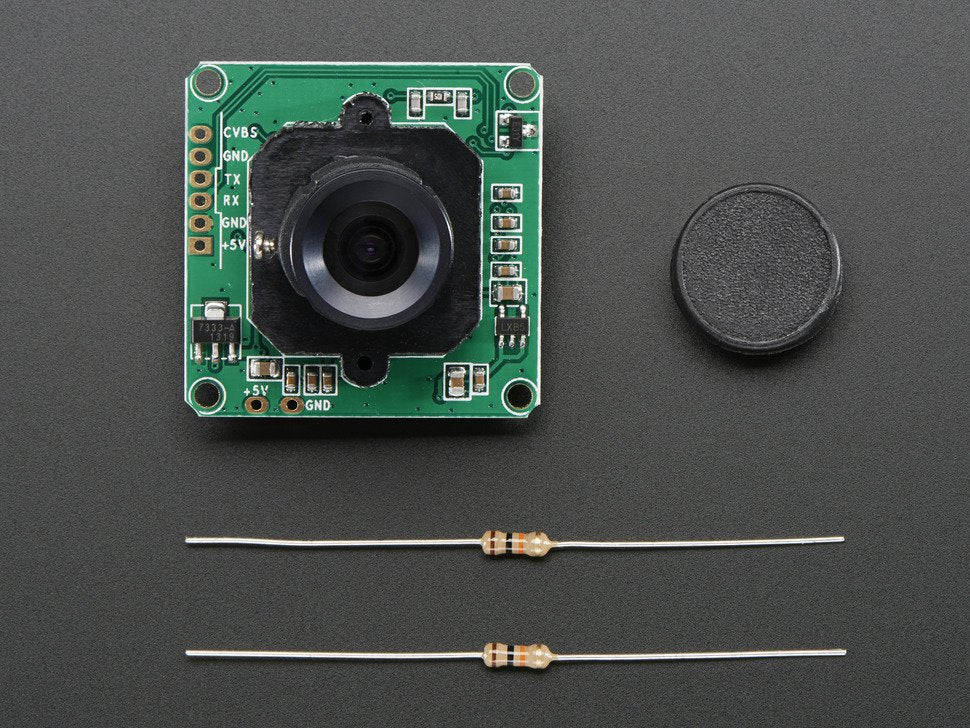

- Communication: 3.3V TTL (Three wires TX, RX, GND) on 2.0mm pitch connector
