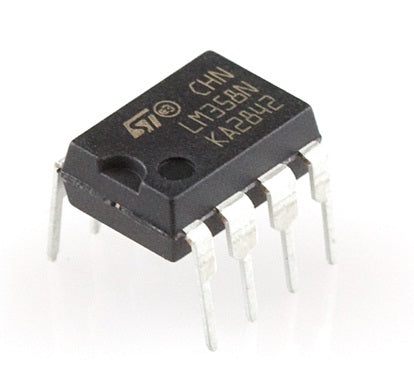

LM358 Operational Amplifier - (AD5727)

Description:

These circuits consist of two independent, high-gain, internally frequency compensated op-amps that were designed specifically to operate from a single power supply over a wide range of voltages. The low power supply drain is independent of the magnitude of the supply voltage. Application areas include transducer amplifiers, DC gain blocks and all conventional op-amp circuits which can now be more easily implemented in single power supply systems. For example, these circuits can be directly supplied with the standard +5V used in logic systems and will easily provide the required electronic interface without the need for any additional power supply. In the linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground, even when operating from a single supply voltage.

Features:

- Manufacturer: STMicroelectronics - SGS Thomson

- Part: LM358N

- Package: PDIP-8

- RoHS: Yes

Datasheet
